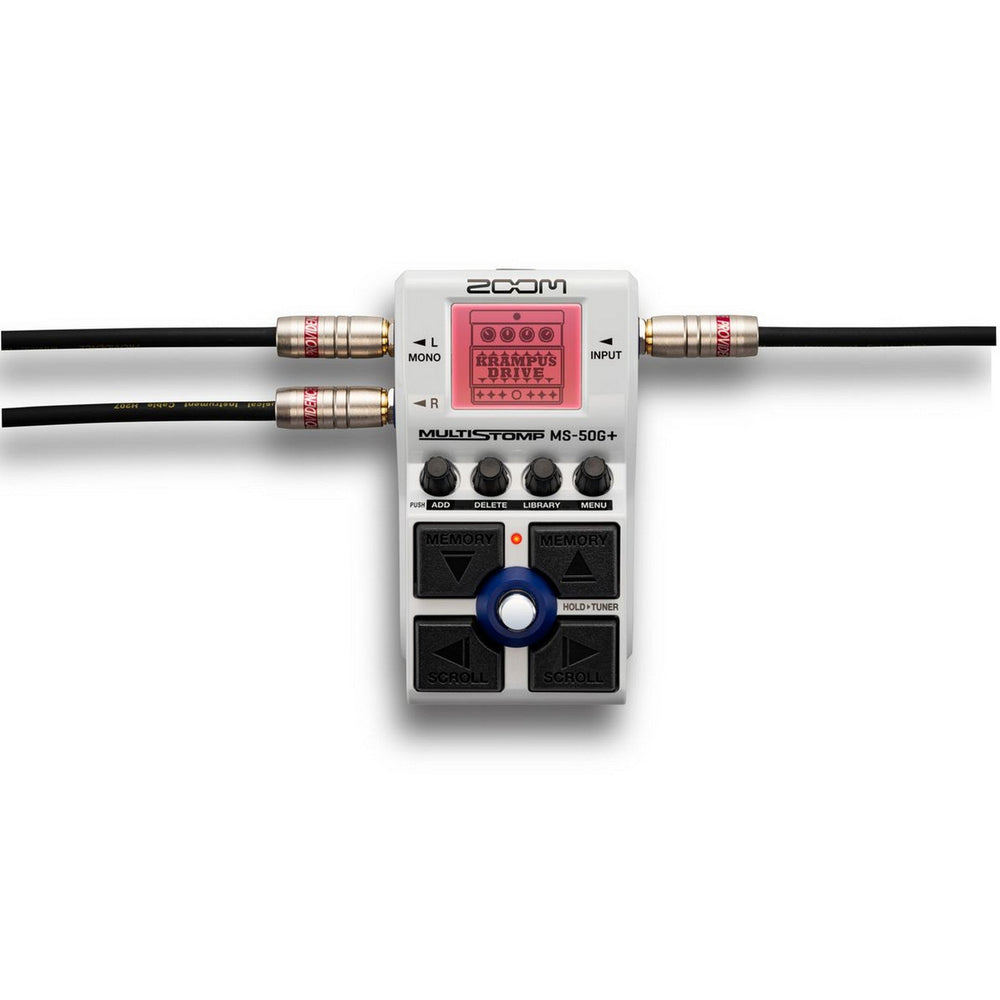

Zoom MS-50G+ Multi-Stomp Guitar Effects Pedal

This versatile stompbox combines the power of a multi-effects processor into a single pedal, making it the perfect utility pedal for guitarists looking to complement their personalized pedal board.

Explore a Wide Range of Effects
The MS-50G+ boasts a collection of 100 effects, including Zoom’s latest Drives, Modulations, Delays, Reverbs, Compressors, Filters, and Special Effects. Choose from a mix of classic effect emulations and Zoom originals, including preamps developed with Zoom’s Multi-Layer IR technology.

Customize YZoom’s Sound
Chain up to 6 effects to design and save yZoom’s own custom patches. Adjust parameters for each effect with the fZoom’s encoder knobs.

Easy to Use on Stage
The LCD screen changes color, making it easy to distinguish between each category of effects while scrolling. Cross Key switches allow you to instantly switch between effects with a tap of yZoom’s foot.

Built to Last
Built with a metal frame, the MS-50G+ is designed to withstand the rigors of live performance.

Stereo Outputs
The MS-50G+ includes two ¼” outputs to support stereo effects such as reverbs, choruses, and delays.

Onboard Chromatic Tuner
The onboard chromatic tuner uses color backlighting to give visual feedback, making it easy to tune quickly and accurately. It supports all standard guitar tunings as well as open and drop tunings.

Power Options
The MS-50G+ can be powered by 2 AA batteries, USB power, or AC power.

Handy Guitar Lab
With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-50G+ app for iOS.

Key Features

• Zoom has released a new lineup of effects, featuring their advanced Preamp Modeling technology with Multi-Layer IRs.
• This latest generation includes a wide range of effects, such as drives, chorus, delay, and reverb, with a total of 100 built-in options.
• Users can store and access their preferred settings with the 100 memory patches available, consisting of 85 factory presets and 15 customizable user presets.
• The design of these effects is compact and convenient, resembling a single stompbox for easy operation.
• With the 4x Cross Key switches, users can effortlessly navigate through the memory and scroll functions using their foot.

Technical Specifications

Maximum Number of Simultaneous Effects
6 effects
User Patch Memories
100
Sampling Frequency
44.1 kHz
A/D Conversion
24-bit 128x oversampling
D/A Conversion
24-bit 128x oversampling
Signal Processing
32-bit
Frequency Response
20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)
Display
160x128 dot-matrix LCD
Input
Standard mono phone jack Rated input level: −20 dBu Input impedance (line): 470 kΩ
Outputs
L/R
Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N
122 dB
Noise Floor (Residual Noise)
L/R
–100 dBu
Power
AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated Operation Times
* These values are approximate.
* Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Alkaline batteries: about 7 hZoom’ss
Using Batteries
NiMH batteries (1900 mAh): about 6.5 hZoom’ss Lithium batteries: about 14 hZoom’ss
USB
Port: USB 2.0 Type-C/Supported cable type: Type-C Handy Guitar Lab: USB1.1 Full Speed * Use a USB cable that supports data transfer. USB bus power is supported.
Dimensions
133 mm (D) x 79 mm (W) x 61 mm (H)
Weight
353 g (excluding batteries) 400 g (including batteries)
NOTE: 0 DBU = 0.775 V
