Zoom MS-50G | MultiStomp Guitar Pedal with Chromatic Tuner Patch Cycling Battery Powered 1/4 Inch Input Dual Output USB Port

Zoom MS-50G MultiStomp Guitar Pedal with Chromatic Tuner Patch Cycling Battery Powered 1/4 Inch Input Dual Output USB Port

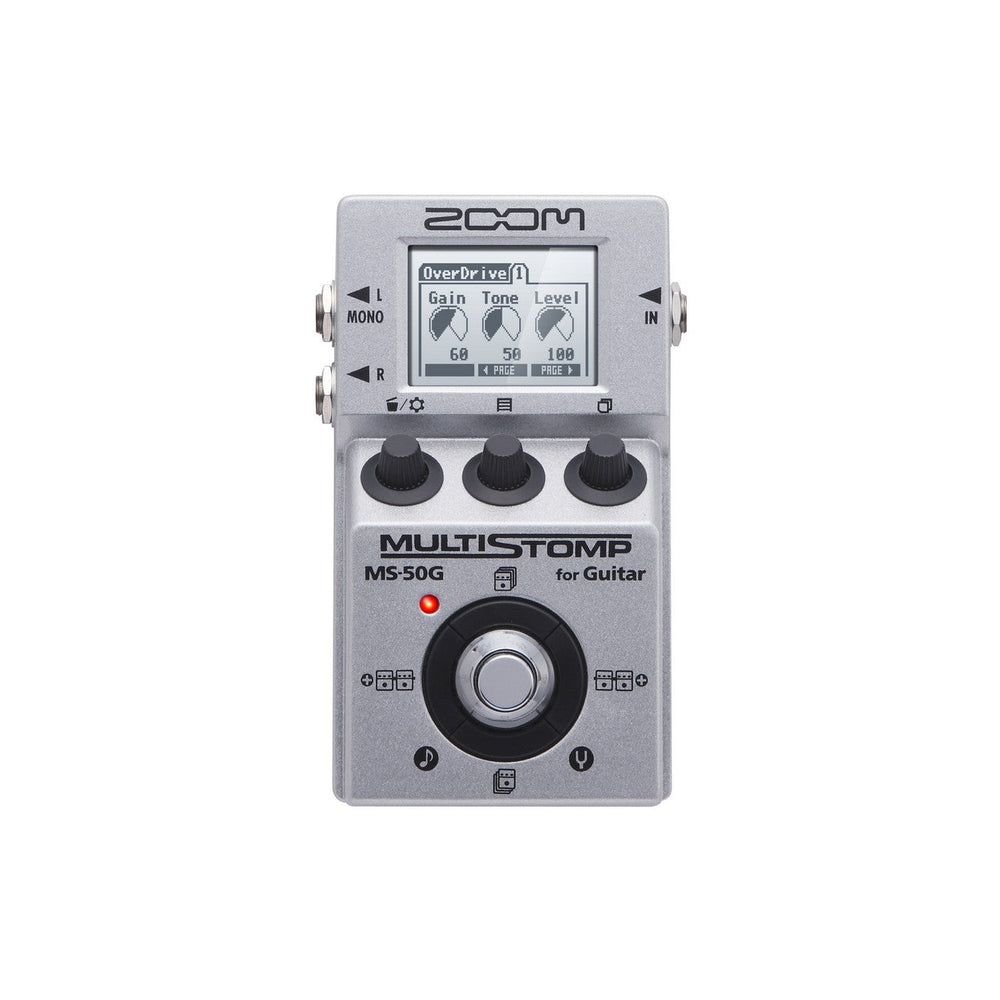

Zoom's MS-50G MultiStomp guitar pedal combines the power of a multi-effects device and the flexibility of an amp modeler in a single compact stompbox. With its 55 custom guitar effects and amp models, an easy-to-use interface, onboard chromatic tuner and versatile power options, you'll be surprised at how much the MS-50G has to offer.

The MS-50G's intuitive design allows easy navigation in both live and studio settings and makes creating, saving, and rearranging effects a breeze. Its input jack accepts signal from both passive and active guitars, and dual line-level output jacks enable you to record the MS-50G's many sounds in stereo.

You can use up to 6 effects simultaneously and arrange them in any order you likeeven bring individual effects in and out of the chain as desired. There are 50 patch memories where you can store your custom edited and chained multi-effects, with the first 30 pre-loaded with useful factory settings. An Auto Save function ensures that whatever edits you make will automatically be saved, and you can create a list of up to 26 patches to cycle through as you step on the MS-50G footswitchhandy for live gigs or whenever you want your effects in a certain order.

Key Features

• 100 guitar effects and amp models, including modulation, equalization, delay, and reverb
• Up to 6 effects can be used simultaneously, in any order
• 50 memory locations for the storage of user-created patches
• 30 preset patches
• Patch cycling
• Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
• Tap Tempo for synchronization of delay times or modulation rates
• Auto Save function for automatic saving of all patch parameters
• 1/4" input jack (both active and passive instruments supported)
• Dual 1/4" output jacks
• Backlit LCD with contrast control for easy viewing in low-light environments
• USB port for power and firmware updates
• Lightweight and small enough to fit in your gig bag
• Easily integrated into any existing pedalboard
• Runs on 2 AA batteries, with alkaline battery life of up to 7 hours

Technical Specifications

Number of effects:
100
Number of simultaneous effects:
6
Number of patch memories:
50
Number of patch presets:
30
Sampling frequency:
44.1 kHz
A/D conversion:
24-bit, 128x oversampling
D/A conversion:
24-bit, 128x oversampling
Signal processing:
32-bit floating point and 32-bit fixed point
Frequency response:
20 Hz - 20 kHz +1 dB, -3 dB (into 10 k OHMS load)
Display:
LCD
Input:
1 x 1/4" monaural phone jack
Rated input level:
-20 dBm*
Input impedance:
1M OHMS
Output:
2 x 1/4" monaural phone jack
Maximum output level:
+5 dBm (output impedance load of 10 k OHMS or more)
Battery type:
AA size (LR6) battery x 2
Continuous battery operation time:
7 hours when using 2 AA alkaline batteries
AC adapter (optional):
DC 9V center-negative, 500 mA (Zoom AD-16)
USB:
Firmware update, bus power
Dimensions:
130.3 (D) x 77.5 (W) x 58.5 (H) mm
Weight:
350g (without batteries)
*Note: 0 dBm = 0.775 Vrms
Here's what comes included with the MS-50G:
Operation manual
AA size (LR6) battery x 2
