Zoom UAC-2 | SuperSpeed Audio Converter XLR TRS 24 Bit 192 kHz Low Latency Portable Bus Powered USB 3.0 with Loopback Function Hi Z Input

Zoom UAC-2 SuperSpeed Audio Converter XLR TRS 24 Bit 192 kHz Low Latency Portable Bus Powered USB 3.0 with Loopback Function Hi Z Input

The bus-powered UAC-2 adds two channels of 24-bit/192 kHz high-resolution audio to any USB 2.0 or 3.0-equipped Windows or Mac computereven to your iPad.* It utilizes SuperSpeed USB 3.0 technology for low latency and includes advanced features such as 4x upsampling, Loopback, and MIDI I/O. Plug in any microphone, line-level device, or instrument and use the UAC-2 for onstage playback, recording to a DAW, or enjoyment of high-res audio in your home or office. You can also use it for fast, low-latency podcasting, gaming, and other live streaming applications.

Now you can get the best out of your laptop at every gig. The UAC-2 is portable, bus-powered (no AC connection required), and built rugged for the road, plus its advanced converters and support for USB 3.0 SuperSpeed ensures superior audio wherever your music takes you.

Broadcast your creativity, enhance your gaming experience, and share your performance with the world. The UAC-2's Loopback function combines the input from connected mics, instruments, and line-level devices along with background music or other audio tracks being played back by your computer and then instantly routes a custom blend of the signals to your streaming software.

Key Features

• 2-in/2-out SuperSpeed USB 3.0 audio interface
• Support for recording and playback up to 24-bit/192 kHz
• Loopback function for webcasting, podcasting, gaming, and other live streaming applications
• Low latency overdubbing and direct monitoring for zero-latency monitoring in mono or stereo

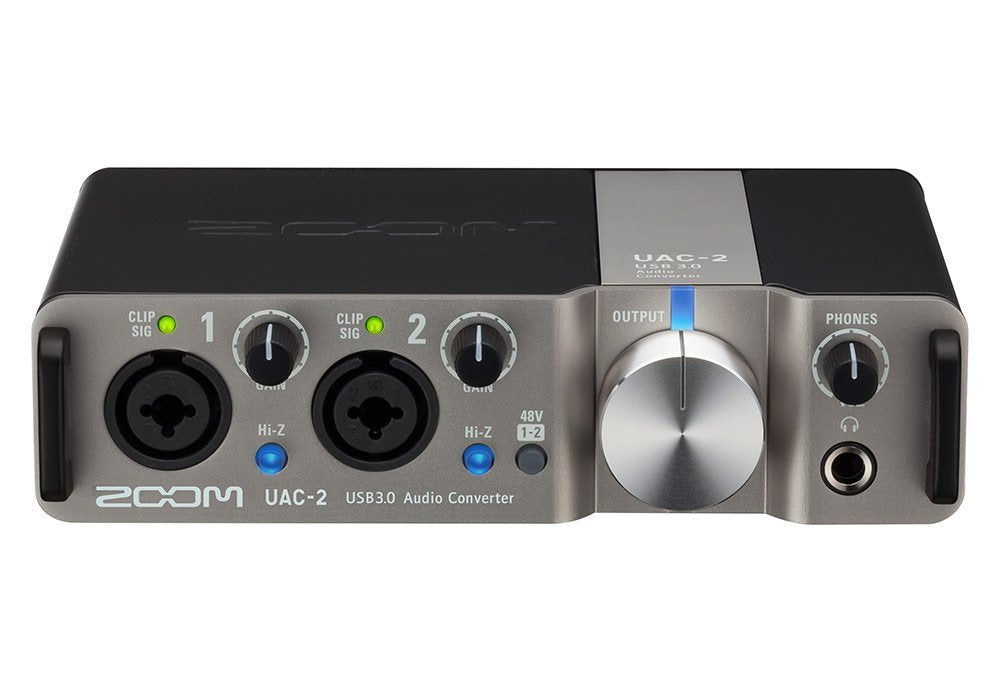

• Two combo balanced XLR/TRS input connectors accept both mic- and line-level signal
• Hi-Z switches allow direct connection of electric guitar or bass
• Switchable +48V phantom power
• Two balanced TRS output jacks for connection to amplifiers or self-powered speakers
• 1/4" headphone jack with dedicated level control
• Independent gain controls and clip LEDs for each input
• Large knob output volume control
• Direct Monitoring switch for zero latency monitoring in mono or stereo

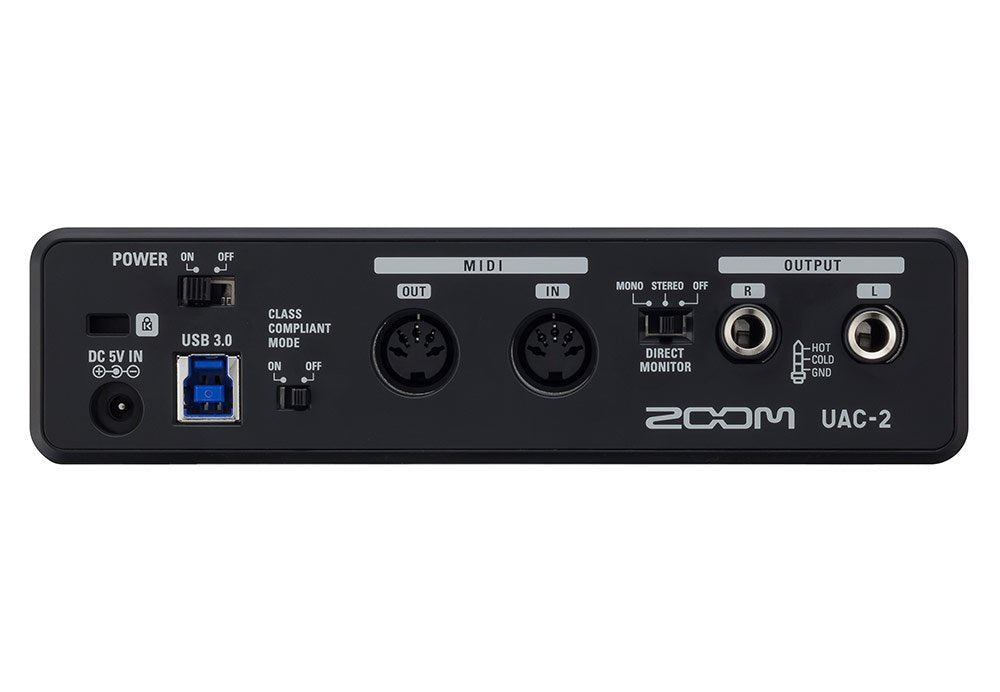

• MIDI In and Out
• Compatible with all popular DAW and streaming software, including Cubase, Logic, Garage Band, Pro Tools, Ableton Live, and others
• high-performance mic preamps with up to +60dB of amplification
• 120dB of dynamic range
• 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
• Asynchronous transfer system unaffected by computer jitter
• Bus poweredno AC power required
• Robust metal housing ensures roadworthiness
• Works with all USB 3.0-equipped computers and iPads*
• * Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required

Technical Specifications

INPUTS
Input 1/2 connectors:
XLR/TRS combo jacks
(XLR: 2 hot / TRS: TIP hot)
Input gain:
0 to 60dB in 1dB steps
Input impedance:
5k OHMS (1 M OHMS (when Hi-Z ON)
Maximum input level:
+12 dBu (@0dBFs)
Phantom power:
+48V
L/R OUTPUT
Type:
1/4" TRS jack (Balanced)
Maximum output level:
+14 dBu (@0dBFs)
Output impedance:
100 OHMS
PHONES OUTPUT
Type:
1/4" stereo phone jack
20mW + 20mW (into 32 OHMS load)
Maximum output level:
+8 dBu (@0dBFs)
Output impedance:
33 OHMS
DYNAMIC RANGE
A/D:
118dB typical (IHF-A)
D/A:
120dB typical (IHF-A)
NUMBER OF AUDIO CHANNELS
Recording:
2
Playback:
2
OTHER
Frequency characteristics:
-1.0 dB: 20 Hz - 60 kHz @ 192kHz
-1.0 dB: 20 Hz - 40 kHz @ 96kHz
-1.0 dB: 20 Hz - 20 kHz @ 44.1kHz
Measured conversion noise (EIN):
-125dBu (IHF-A) @ 60dB, 150 OHMS input
Sampling frequencies:
192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz
Bit depth:
24-bit
Interface:
USB 3.0
MIDI In/Out:
5-pin DIN jack
Power source:
USB 3.0 Bus Power /
AD-14 AC adapter (DC 5V 1A)
Power consumption:
5 W maximum
Dimensions:
113.9mm(D) x 176.0mm(W) x 46.2mm (H)
Weight:
750g
*0dBm 0.775Vrms
Here's what comes included with the UAC-2:
Operation manual
USB 3.0 cable (1m)
Cubase LE download
Cubase LE startup guide
