Atomos AtomX Cast 4 x HDMI Switching and Streaming Dock for Ninja V/V+

Atomos AtomX Cast 4 x HDMI Switching and Streaming Dock for Ninja V/V+

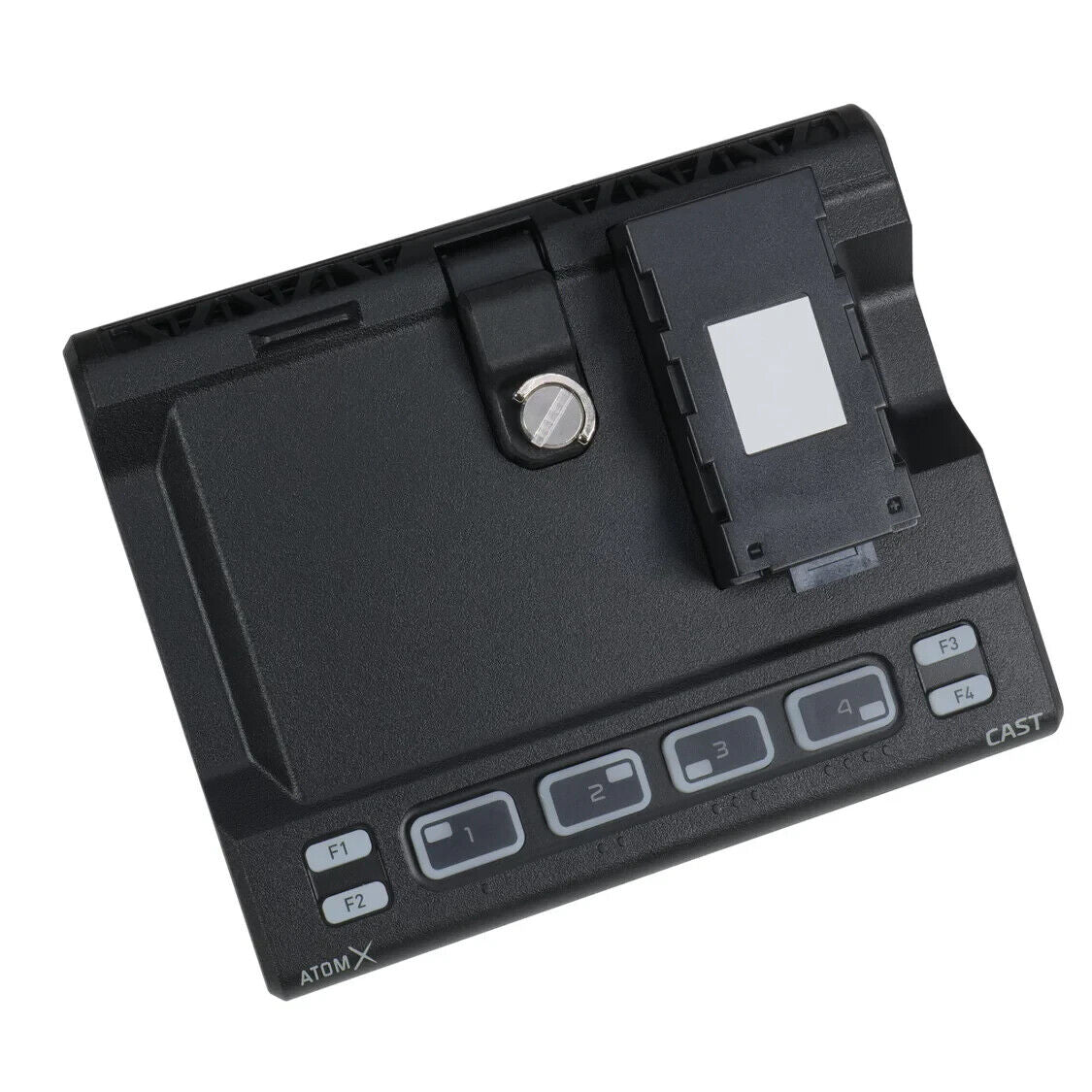

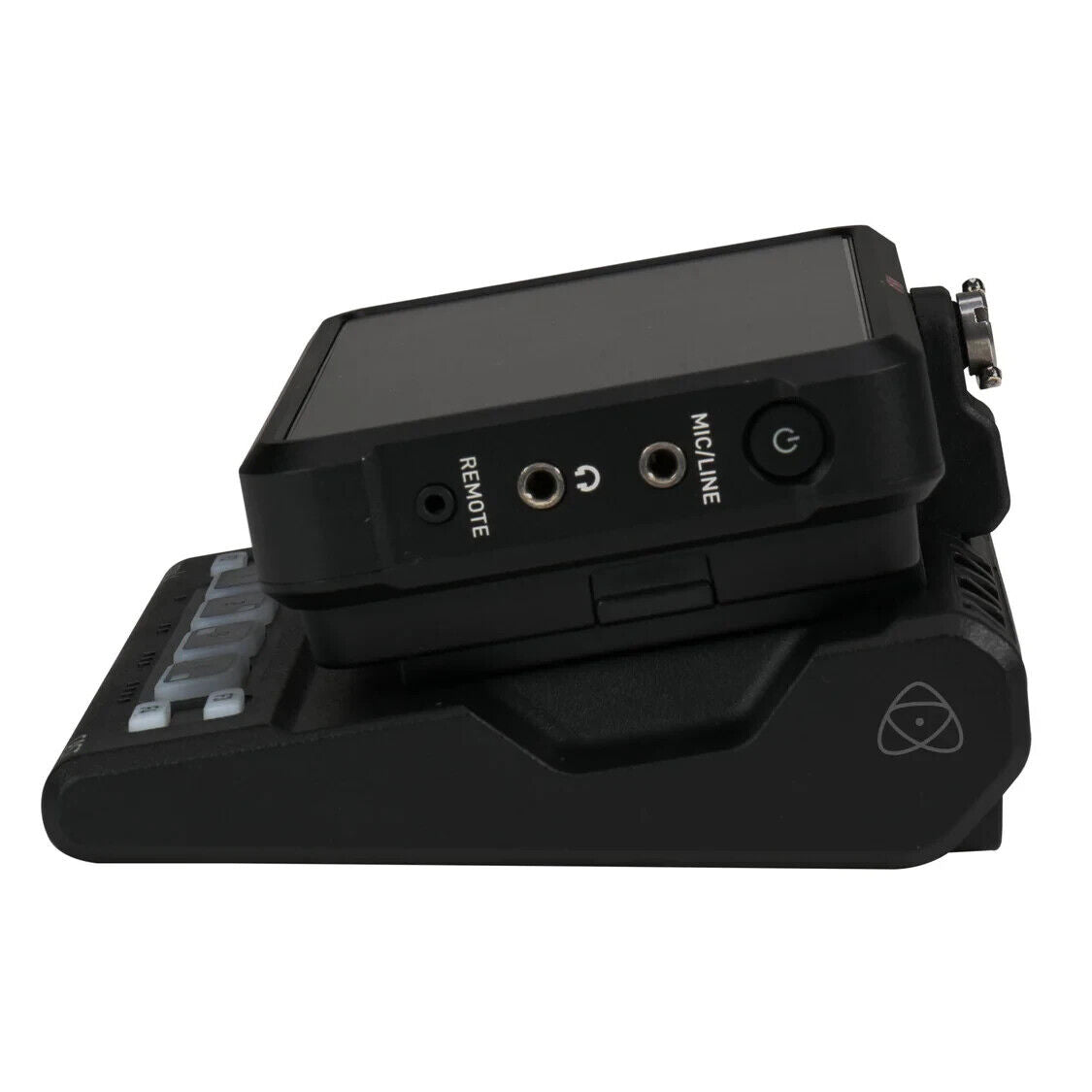

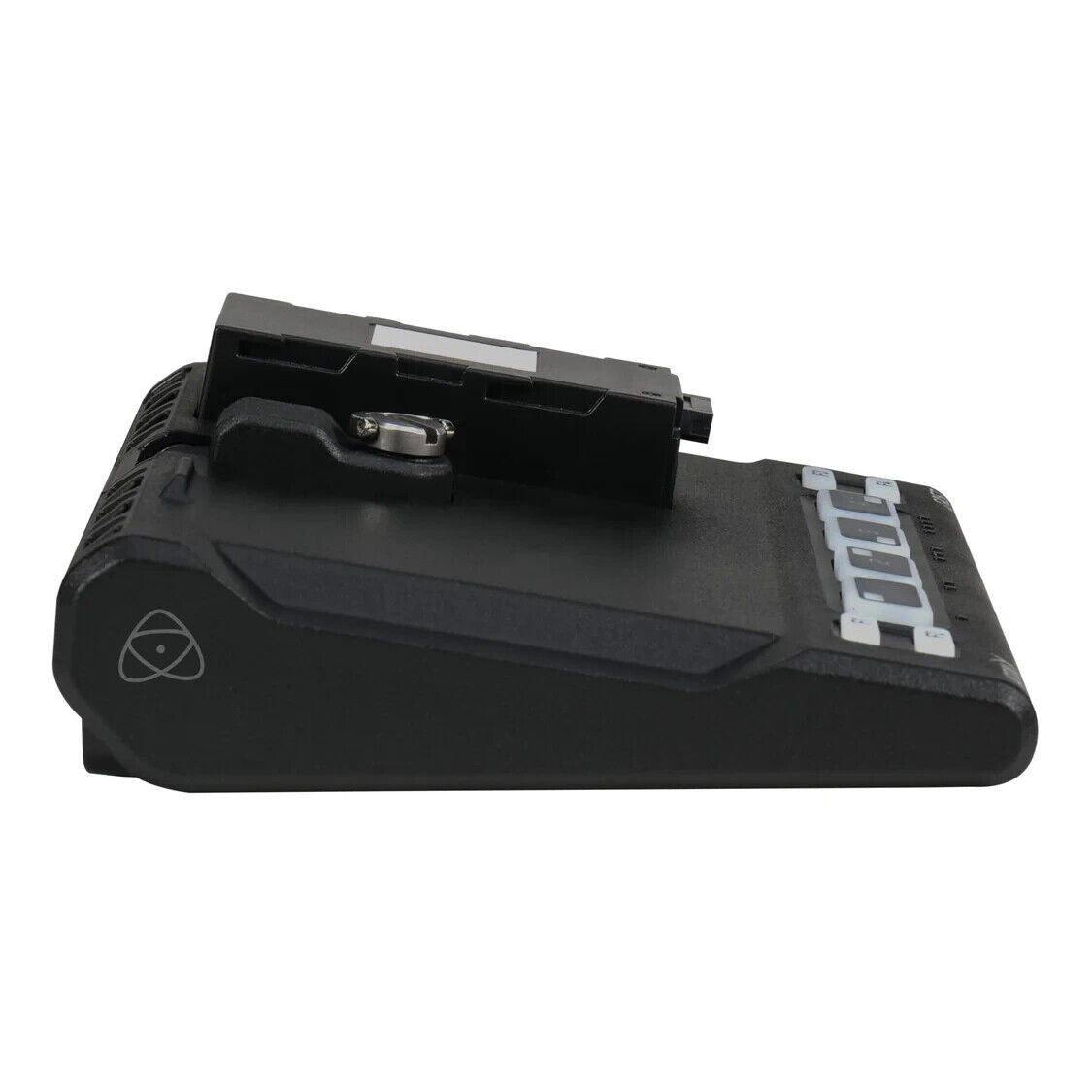

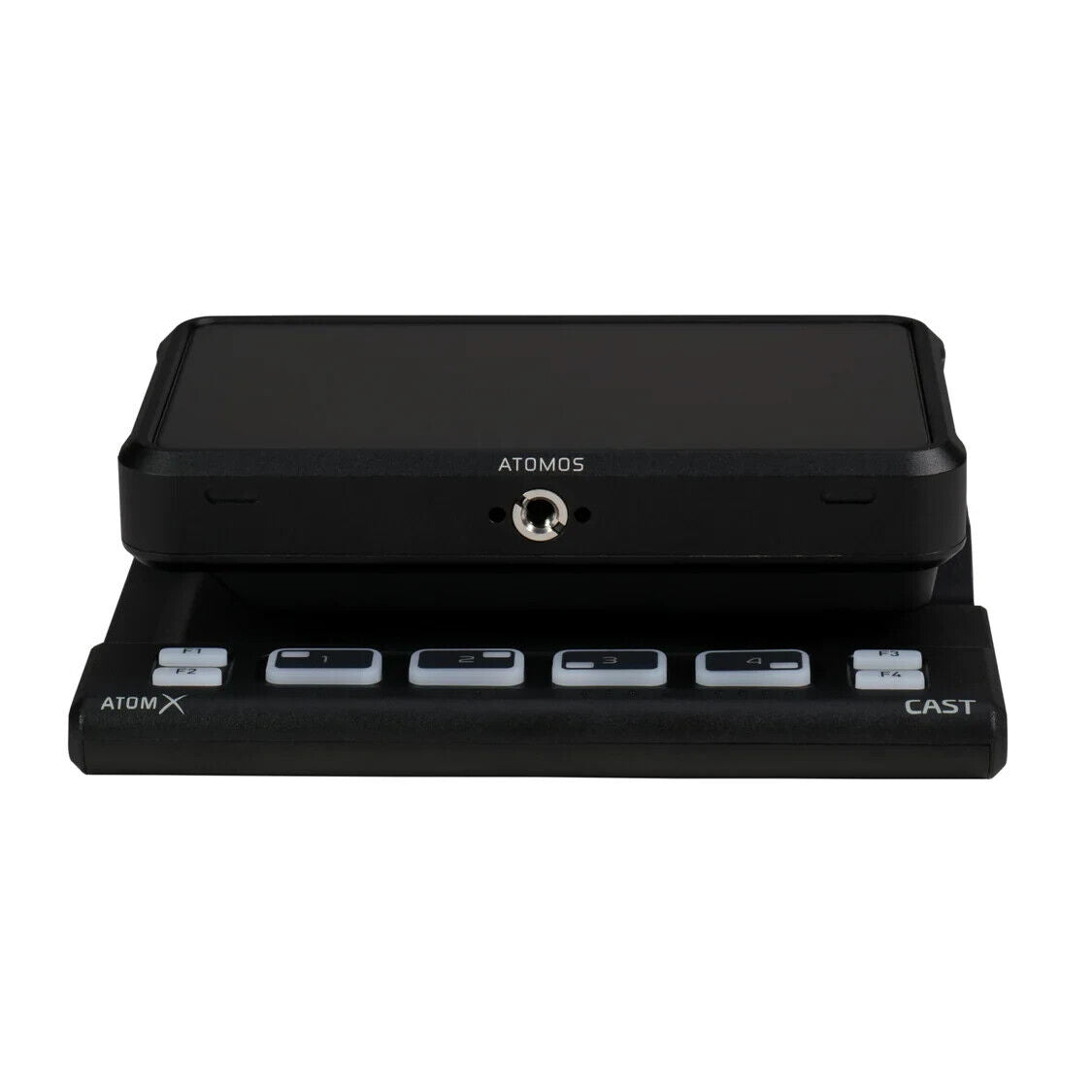

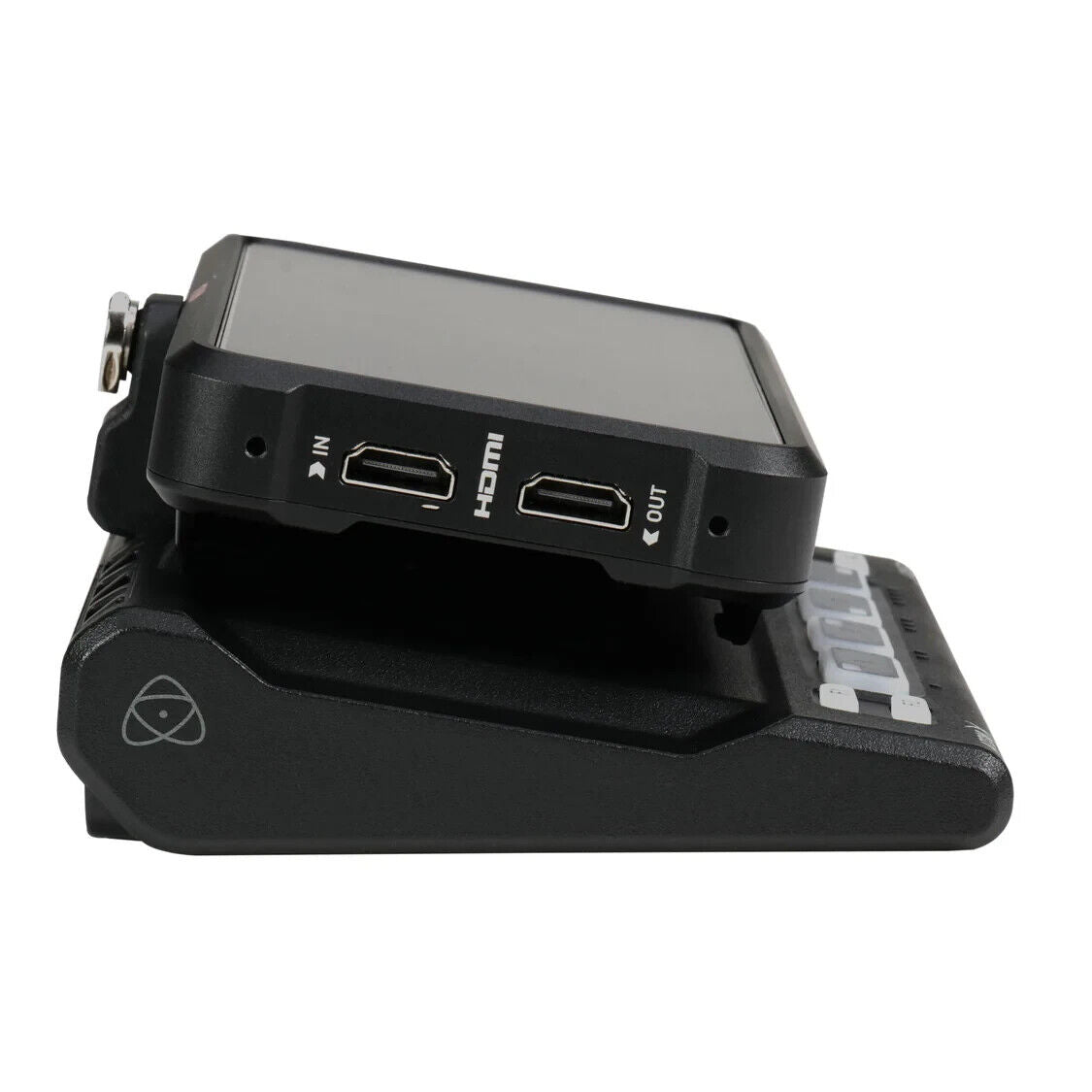

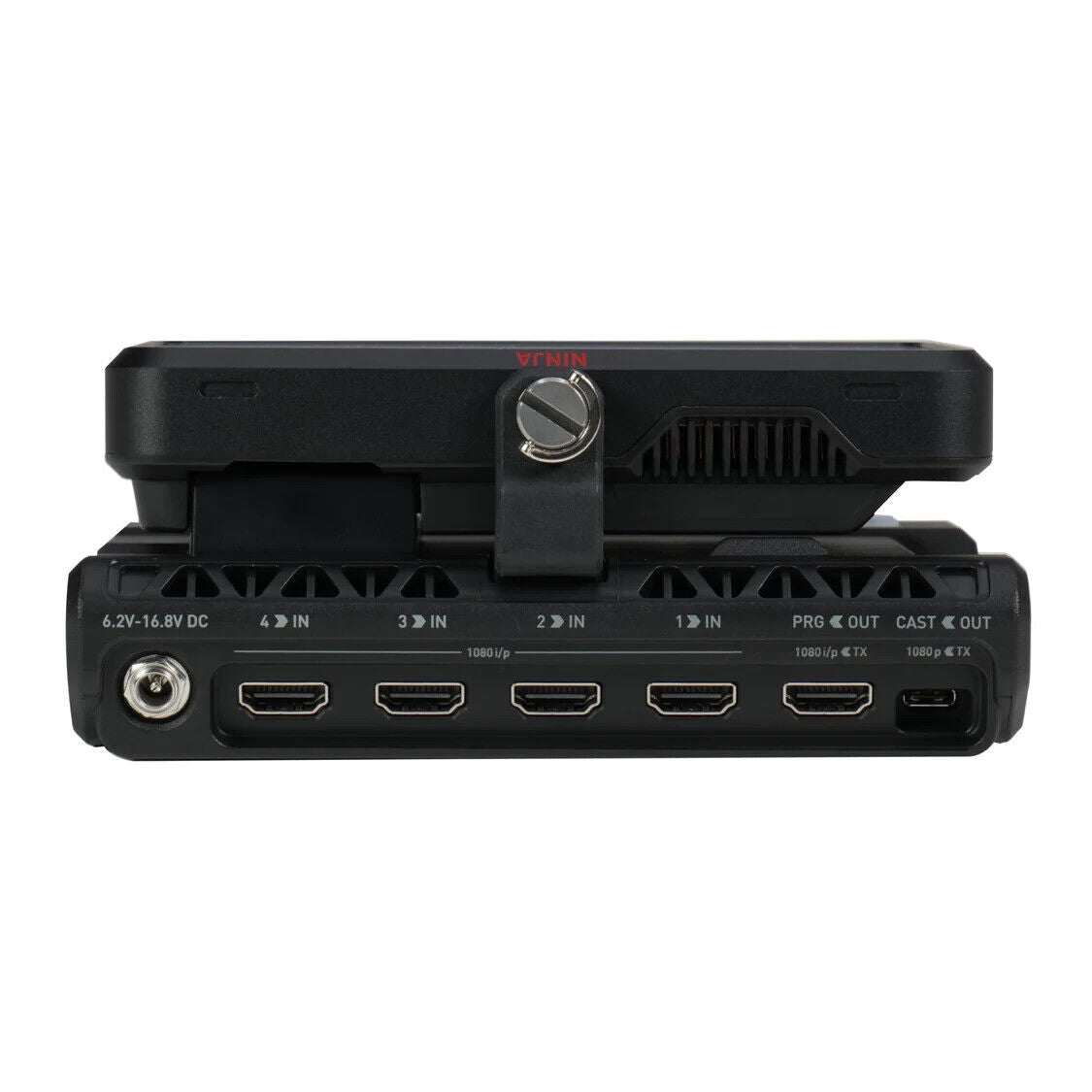

AtomX CAST is a modular companion for the Atomos Ninja V or Ninja V+ monitor-recorder that uses the AtomX expansion port on the Ninja V/V+ to transform it into an advanced multi-input switcher. The combination of the Ninja V and AtomX CAST becomes the Ninja CAST, a fully functional stand-alone switcher, multiview monitor and broadcast quality recorder that does not require a computer to function. With a high quality 5” HDR touchscreen monitor, 4 x HDMI inputs and physical buttons, the Ninja CAST is the ultimate portable live switching and streaming solution.

Broadcast features for everyone
AtomX CAST is for video creators and anybody who wants to make broadcast quality multi-camera programs simply and quickly from anywhere. It is also for anyone that wants to add professional broadcast quality features to their online meetings, presentations, remote learning/training, virtual conferences, demonstrations or engaging corporate videos. Best of all, CAST is simple and easy to ease - you don’t need to be a video professional to achieve great looking results.

Simple Switching

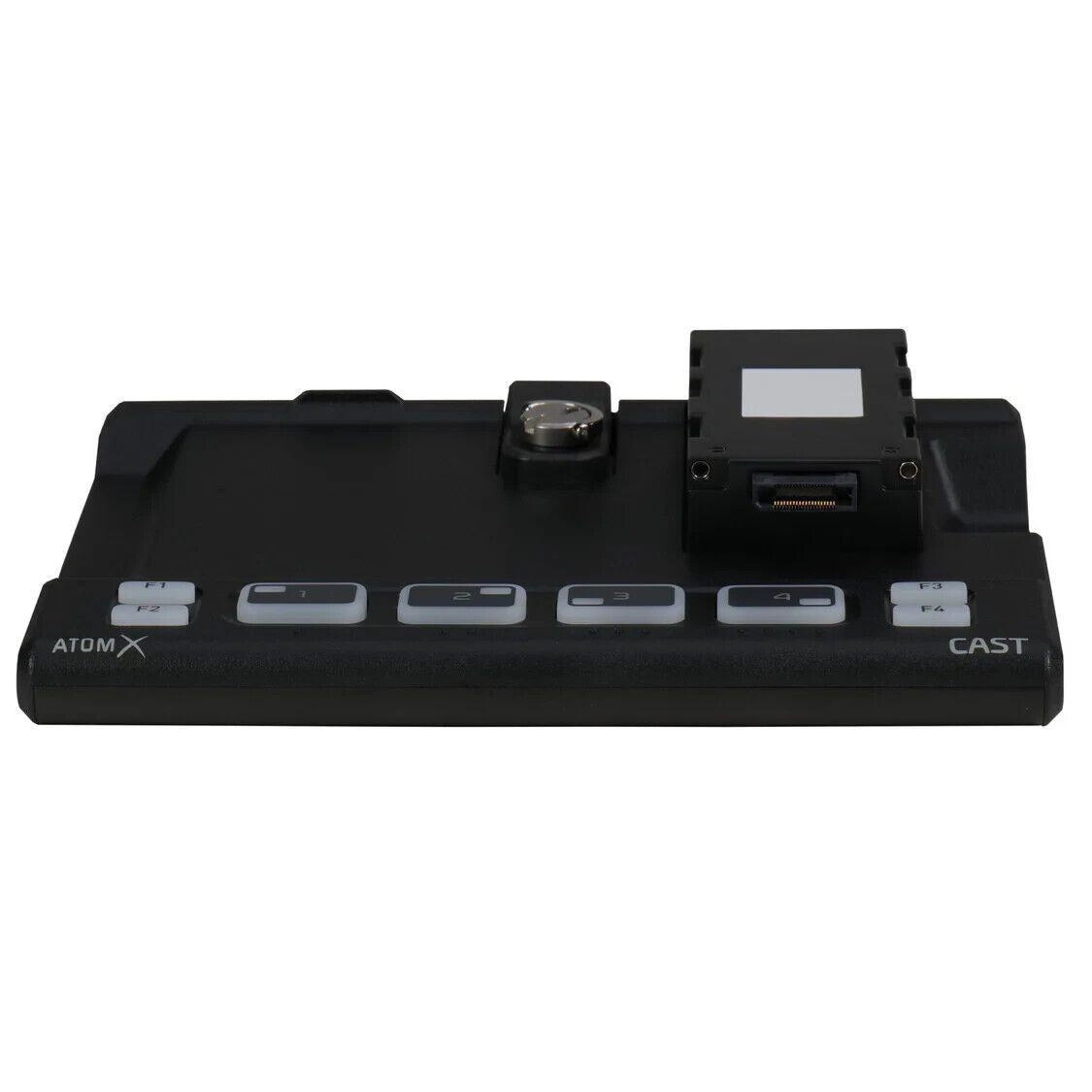

The flexible control options allow you to use either the touchscreen or the physical buttons to ‘switch’ between sources when deciding what should be on screen at any one time for broadcast. The illuminated buttons for each input and coloured LED lighting for Program and Preview status allow you to operate the CAST in dimly lit environments.

Connect any full HD video source
Connect mirrorless or DSLR cameras, video cameras, computers, consoles or even pre-recorded content via HDMI. There’s no need to worry about synchronization, as you can mix and match frame rates up to 60p, as well as interlaced and progressive HD sources automatically.

Integrates seamlessly
With the Ninja V/V+ docked in, the AtomX CAST connects via USB-C to your computer and appears as a high-quality webcam. Plug and play allows it to work immediately with all your video applications like Zoom, Teams and Skype without the need to install drivers on the computer first. Add up to 4 camera inputs to bring your presentation or meeting to the next level.

Integrated Monitor

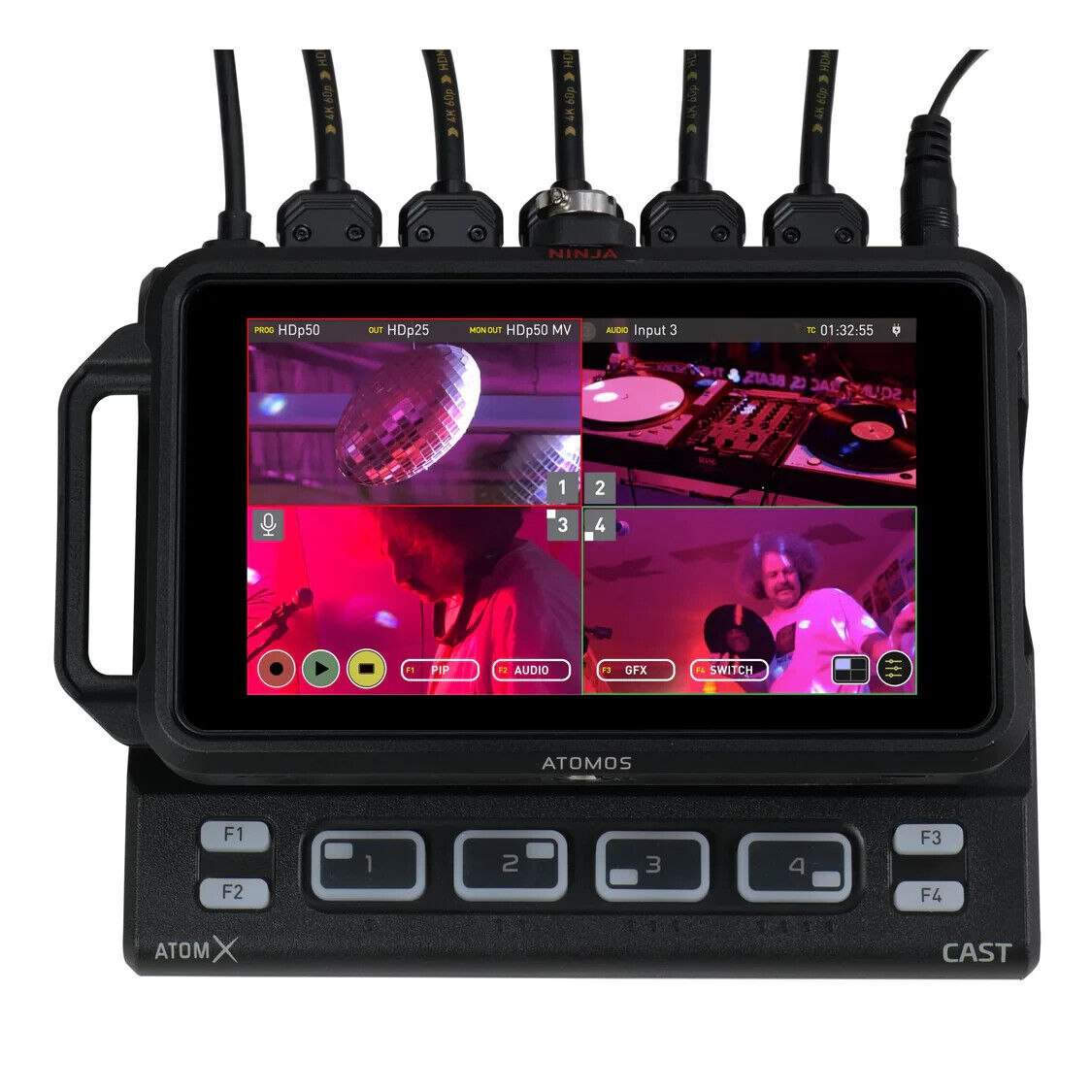

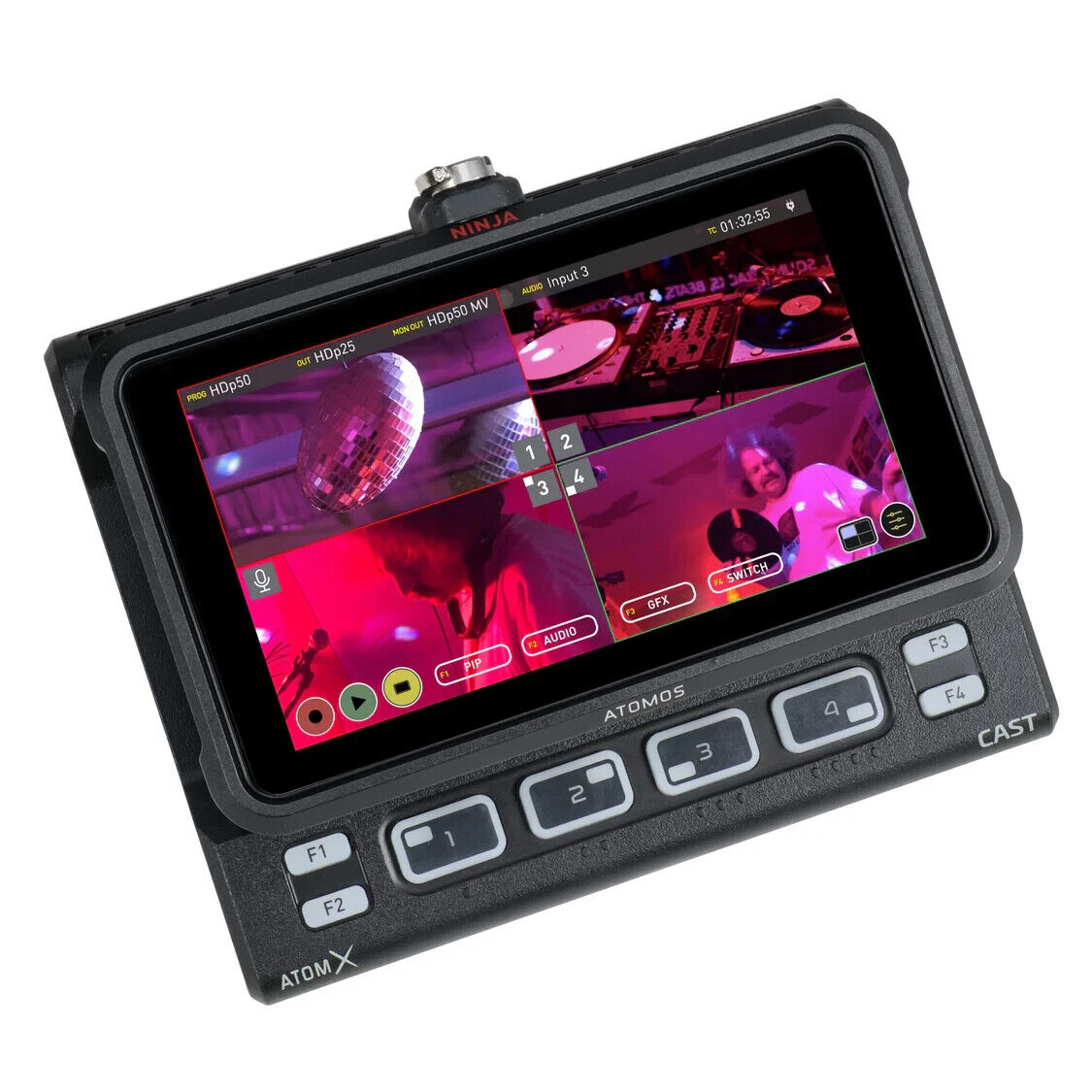

Having an integrated monitor allows you to see the incoming signals as a multiview display, without having to connect an additional monitor. With the Ninja V/V+ docked into the AtomX CAST you can utilize its high quality 5” touchscreen for setup and the monitor-assist tools for exposure, focus and image analysis for optimising your shots. Then switch to multiview to see all four inputs at once, complete with audio level monitoring. Ninja CAST also offers all the same essential features available from your Ninja to allow you to nail exposure and focus on individual inputs.

Recording and Codec options
With professional 10-bit 4:2:2 inputs, you get broadcast quality switching, as well as the ability to record in broadcast quality codecs like Apple ProRes or Avid DNx.

Built in versatility
AtomX CAST can deliver to a worldwide audience by sending a stream to your favourite streaming host, output a broadcast quality video signal to a local display, digital signage or video wall, and record with high quality edit-ready video codecs.

Technical Specifications

Dimensions (W x H x D mm)
129 x 49 x 160 (with out Ninja V/V+)
Weight
485g / 1.06lbs
Mount points
Anti rotational 1/4" 20 / 3/8 on base of unit
Body
ABS plastic with locking arm for Ninja V/V+
Cooling
Passive
Tally light
Record tally Via Ninja V/V+, Program and Preview illumantaion on CAST buttons
Control Buttons

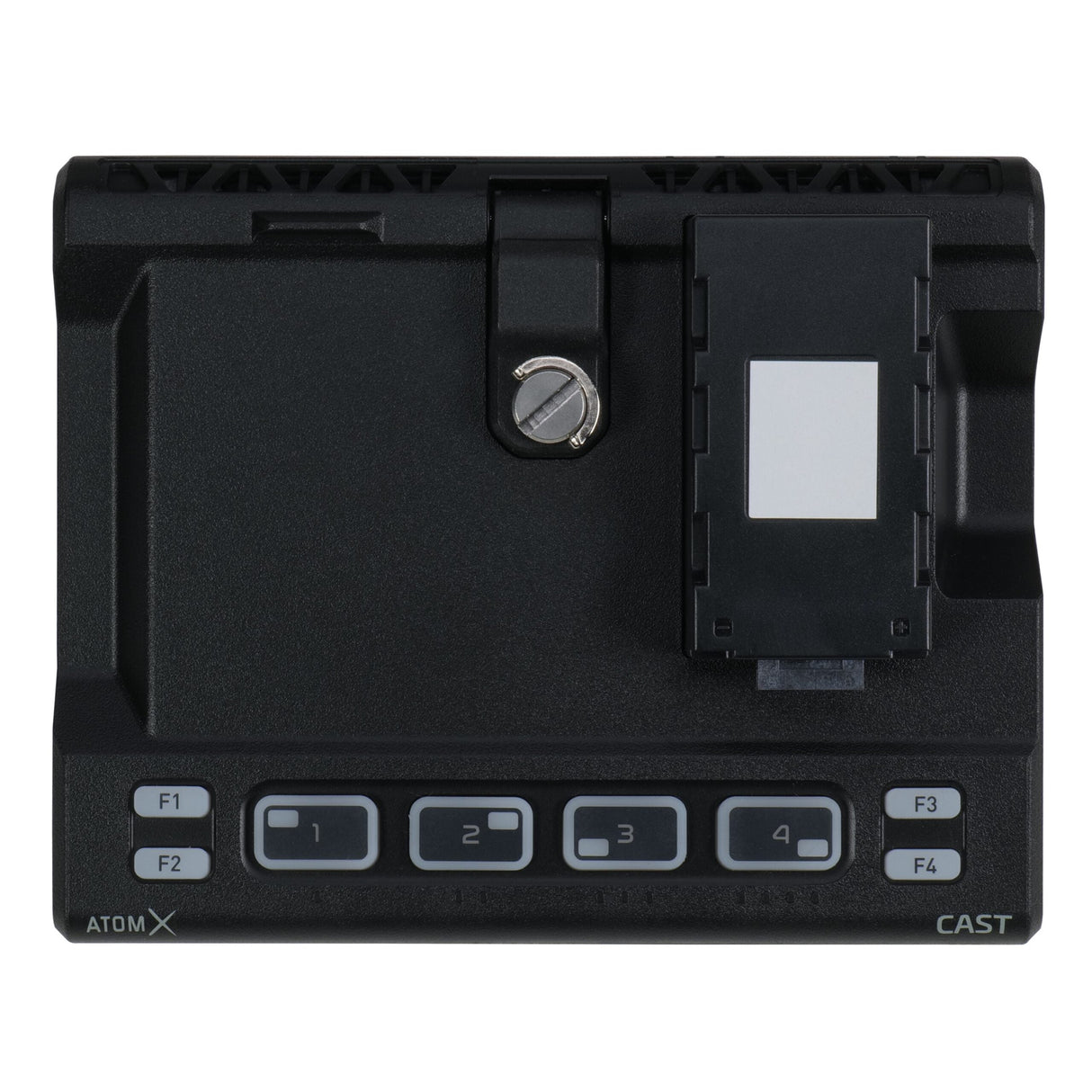

4 x Switching, 4 x Function
AtomXpansion slot
To connect to Ninja V/V+ (no moduell pass through)
Input voltage
6.2V to 16.8V
DC in connector
Lock DC connector from Ninja V/V+ DC power supply
Battery
Via optional Atomos DC to DTAP cable
Video Input

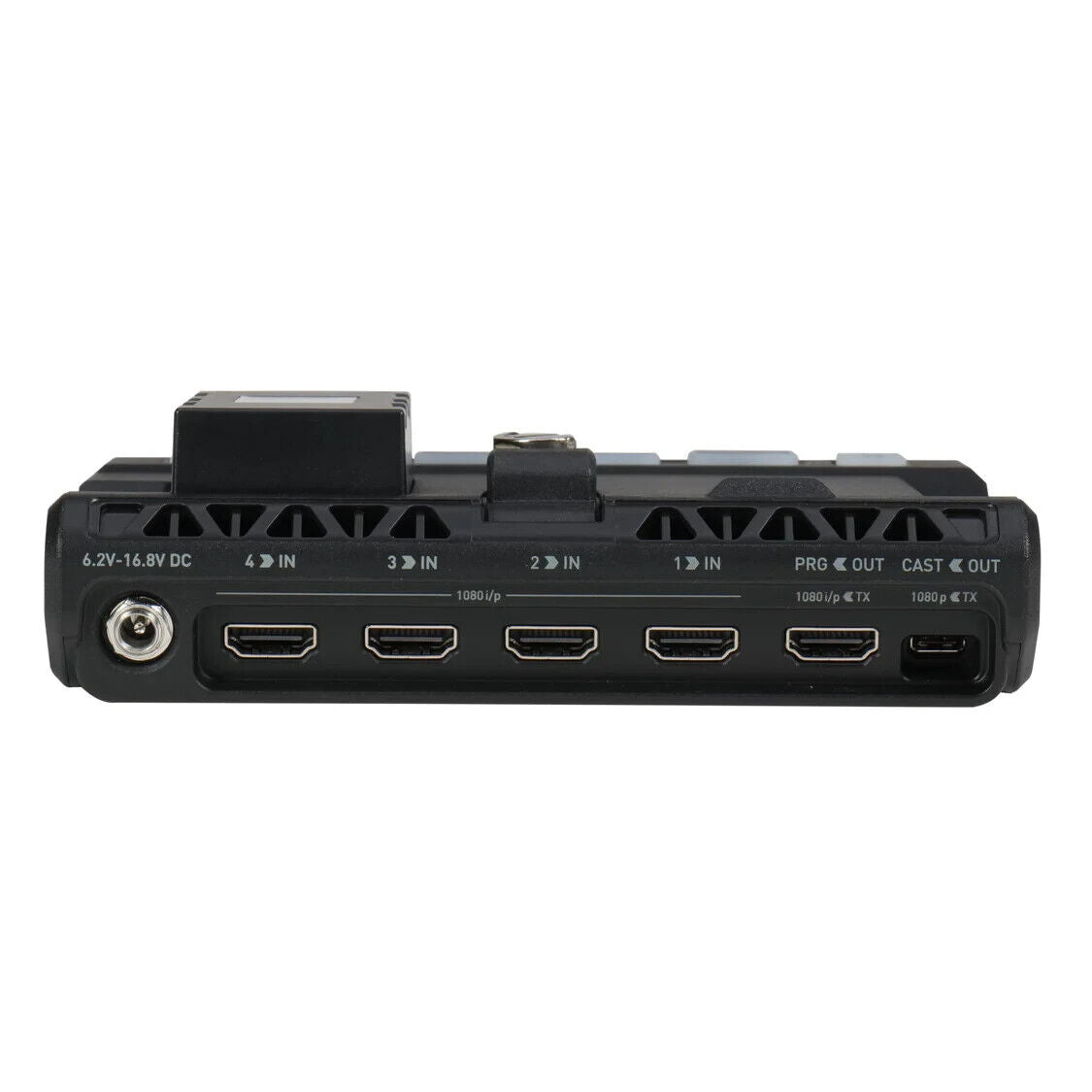

HDMI: 4 x HDMI 1.4b up to 1080p60
Bit Depth: 10bit
Video Chroma Subsampling: 4 2 2
HDCP copy protection: No
Video Output
HDMI: CAST - HDMI 1.4b up to 1080p60 - Program ONLY
HDMI Loup out: Ninja V/V+ - Multi functions out - Program, Preview, Multiview
Multiview: Yes, via Ninja V/V+
OS overlays: Optional via Ninja V/V+ HDMI out
Video Chroma Subsampling: 4 2 2
Bit Depth: 10bit
Web Streaming
USB UVC: USB-C up to 1080p30
Audio In/Out
Audio Quality: 24/48kHz
Audio Codec: PCM
HDMI: ch 24Bit, input dependent per input
Analogue Audio in: 3.5mm via Ninja V/V+
Analogue Audio Out: 3.5mm via Ninja V/V+
Headphone out: 3.5mm via Ninja V/V+
Timecode / Sync
Embedded: HDMI
FHD 1920 x 1080 Progressive
23.98/24/25/29.9/30/50/59.94/60
FHD 1920 x 1080 PsF
No
FHD 1920 x 1080 Interlaced
50/59.94/60
1280 x 720p
No
SD PAL / NTSC
No
Program Recording CODEC via Ninja V/V+
Apple ProRes: LT, 422, 422HQ
Avid DNxHD: DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com)
Playback via Ninja V/V+
Apple ProRes: Yes, with Linear PCM audio
Avid DNx: Yes, with Linear PCM audio
Recording functions
Switched Program Record: Yes via Ninja V/V+
Multiple HDMI input
up to 4 x HDMI up to 1080p60
Multiview Display
Quad input display on Ninja V/V+ Display
Multiview Ouput
Via Ninja V/V+ HDMI out - Set to Program, Preview or Multiview
Picture in Picture (PIP)
Any input over Any input, 4 postions in small or large size PIP
Graphic overlays
Selelect lay out for Stored Graphics in Ninja V/V+ and save configured scene presets
Media pool storage
Upload and Store Graphics in Ninja V/V+
Input transitions
Fade from/to Black / White
Input Processing
Interlaced to Progressive
Input Frame rate processing
Yes
Supported media
Master Caddy II: Yes
SSDmini: Yes, requires the included AtomX SSD mini handle adaptor
File System: ExFat
Pulldown removal
Interlaced to Progressive on Input and USB stream
What’s in the box
Accessories included
AtomX CAST, USB-C cable and SSDmini Handle Adaptor
Optional extras
USB Dock
Compatible with
Requires Ninja V / V+
Warranty
1 Year
