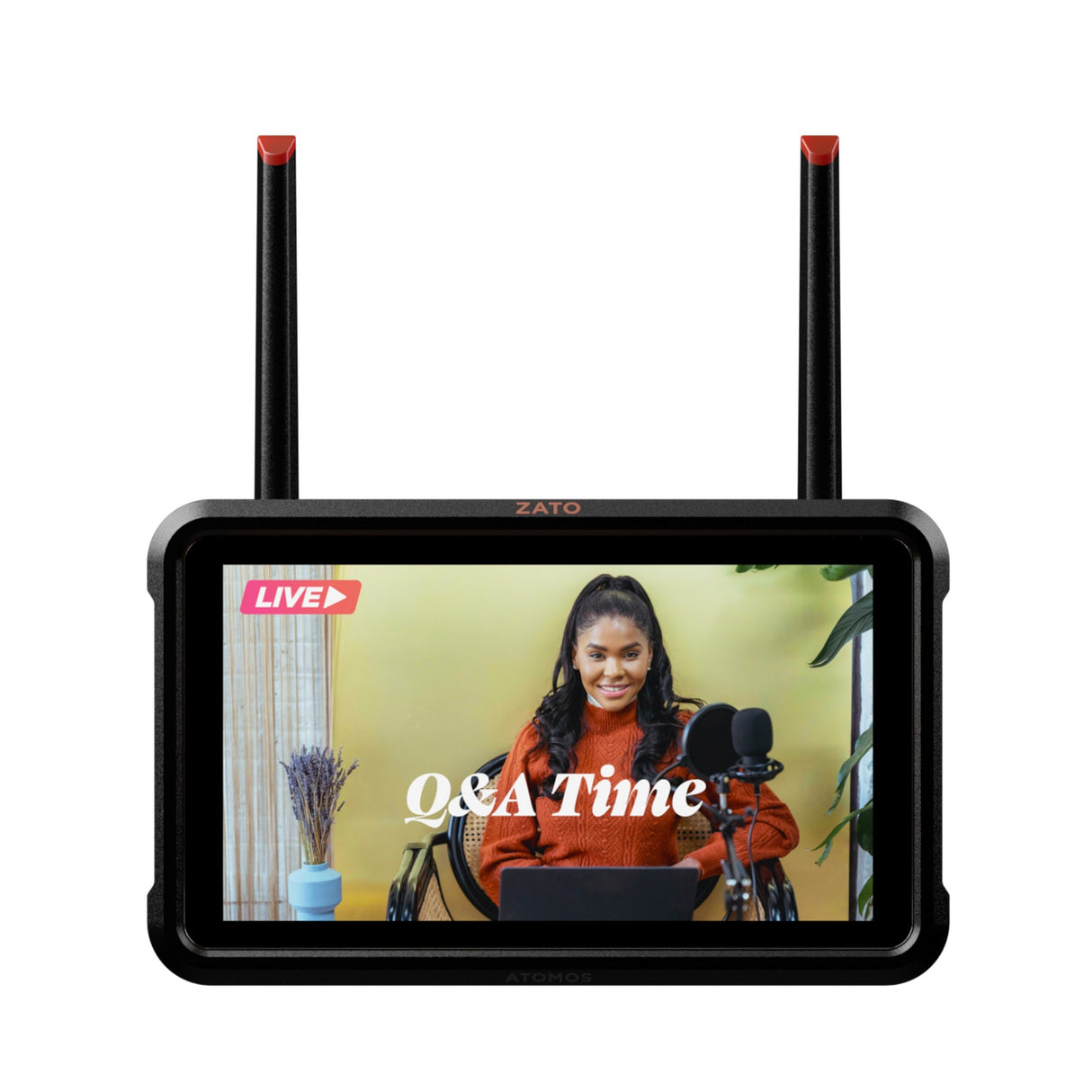

Atomos ZATO CONNECT 5-Inch Network Connected Monitor and Encoder
The Atomos ZATO CONNECT is a revolutionary 5-inch network-connected monitor and encoder that redefines the realm of livestreaming and video conferencing. As the second fully integrated device in the CONNECT range, the ZATO CONNECT creates a new category of product for ATOMOS. This compact device is designed to be a seamless gateway to ATOMOS Cloud Studio, supporting a wide array of HDMI and USB UVC sources. It’s perfect for enhancing web conferencing, transforming HDMI signals into webcam outputs, and facilitating high-quality livestreams to platforms such as Facebook Live, Twitch, and YouTube, or conferencing tools like Microsoft Teams, WebEx, Slack, Skype, Discord, and Zoom.
Featuring Wi-Fi 5 and Gigabit Ethernet (accessible via USB-C), the ZATO CONNECT ensures robust network compatibility for streaming in various environments, whether in the field, studio, or on the go. Beyond its impressive connectivity capabilities, the device boasts a user-friendly AtomOS Lite software loaded with essential tools, making it highly accessible to both new and long-standing customers. With a SuperAtom IPS 5-inch display that delivers 1000 nits of brightness, and options for NP-F battery or USB-C PD power, this versatile monitor and encoder is engineered to empower your livestream and video conferencing setups.
Ease of use is at the core of ZATO CONNECT’s design. The 5-inch touchscreen enables intuitive switching between sources and program stream monitoring. Its compact form factor makes it ideal for mounting on DSLR or mirrorless camera rigs and equally suited to sit alongside PCs, Macs, or gaming consoles. The comprehensive audio capabilities, including the ability to mix audio levels from HDMI, USB, and external mic/line inputs, add to its versatility. Furthermore, the ability to record livestreams as local H.264 backups offers additional creative opportunities such as streaming pre-recorded content “as live.”
Key Features
- Livestream directly to Facebook Live, Twitch, YouTube, and more
- Transform HDMI and mirrorless cameras with plug-and-play UVC webcam out for meetings and presentations in Microsoft Teams, Skype, Slack, Zoom, and others
- Connect almost any HDMI device up to 1080p60 or any USB webcam at up to 1080p30
- Mix audio levels from HDMI camera input, USB webcam, and external mic/line inputs
- Add custom PNG overlay graphics to create lower thirds, logos, and watermarks
- Monitor Assist features including zoom 2x, 9 grid, and extensive frame guides
- Stream, record, and output your program simultaneously
- Playback pre-recorded content “as live” via network streaming, UVC webcam, HDMI, or all at the same time
- 5-inch full HD, SuperAtom (1000nit) display for great visibility in even the brightest of locations
- Wi-Fi 5 and 1Gbe Ethernet (via included USB-C adapter) to share your work with the world
Specifications
- Height: 91.5 mm / 3.6 inches
- Width: 151 mm / 5.94 inches
- Depth: 29.5 mm / 1.16 inches
- Weight (without battery/accessories): 245 g / 8.64 oz
- Ambient operating temperature: Up to 40 degrees Celsius
- Body: Polycarbonate ABS Plastic
- Cooling: Passive
- Network Config settings: Auto-Join WiFi, DHCP, Manual Network Configuration
- Power Input voltage range: 6.2V to 16.8V
- Max wattage: 20W
- USB PD
- Compatible batteries: 1x NP-F / L-Series
- Battery voltage: 7.2V
- DC in connector: via locking DC Jack on optional Battery Eliminator (5.5mm OD & 2.1mm ID)
- D-TAP: Via optional D-Tap to DC cable
- Touchscreen: SuperAtom IPS panel (capacitive touch)
- Size: 5.2 inches
- Resolution: 1920 x 1080
- Viewing angle: 178 + H & V
- PPI: 427
- Bit depth: 10-Bit (8+2 FRC)
- Backlight type: Edge
- Brightness: 1000 nits
- Color gamut: Rec709
- HDMI in: 1 x HDMI 1.4 (up to 1080p60)
- HDMI out: 1 x HDMI 1.4 (up to 1080p60)
- USB In: Webcam up to 1080p30
- USB Out: Webcam up to 1080p30
- Audio quality: 16-Bit / 48kHz
- Audio codec: PCM (In & Out) & AAC (Streaming & Recording)
- HDMI: 2ch, input dependent
- Analogue Audio in: 3.5mm Jack - 5v power
- Analogue Audio out: 3.5mm Jack
- USB Webcam 2ch
- Headphone out: 3.5mm Jack
- Ethernet: via USB-C Dongle
- Wi-Fi: Wi-Fi 5
- USB Host: USB Webcam
- Atomos Cloud: Connect to Atomos Cloud Studio services
- Cellular: Connect to Hot Spot via Wi-Fi
- Web Streaming: USB UVC, up to 1080p30 via RTMP / S, authenticate and configure via Atomos Cloud Studio
- Resolution & Frame Rates: FHD 1920 x 1080 up to 1080p60, 1280 x 720 up to 720p60
- Recording CODEC: h.264 up to 1080p60, Codec option LQ, MQ, HQ
- Playback: H.264, clips recorded on-device
- HDMI out: up to 1080p60
- UVC out: up to 1080p30
- Monitoring: SDR Native
- Supported media: SD UHS-1 (up to 128GB size)
- On screen tools: 2x Zoom, Tap to zoom, 9 grids, 16:9, 1.91, 4:3, 1:1, 4:5, 9:16 frame guides, Vertical and Horizontal display flip (Selfie mode)
- Supported Applications: All Applications with support for H.264 in .MP4 wrapper
- Warranty: 1 Year
Package Contents
- Atomos ZATO CONNECT 5-Inch Network Connected Monitor and Encoder
- USB-C to Gigabit Ethernet Adapter
- Quick Start Guide
- 1x NP-F Battery
