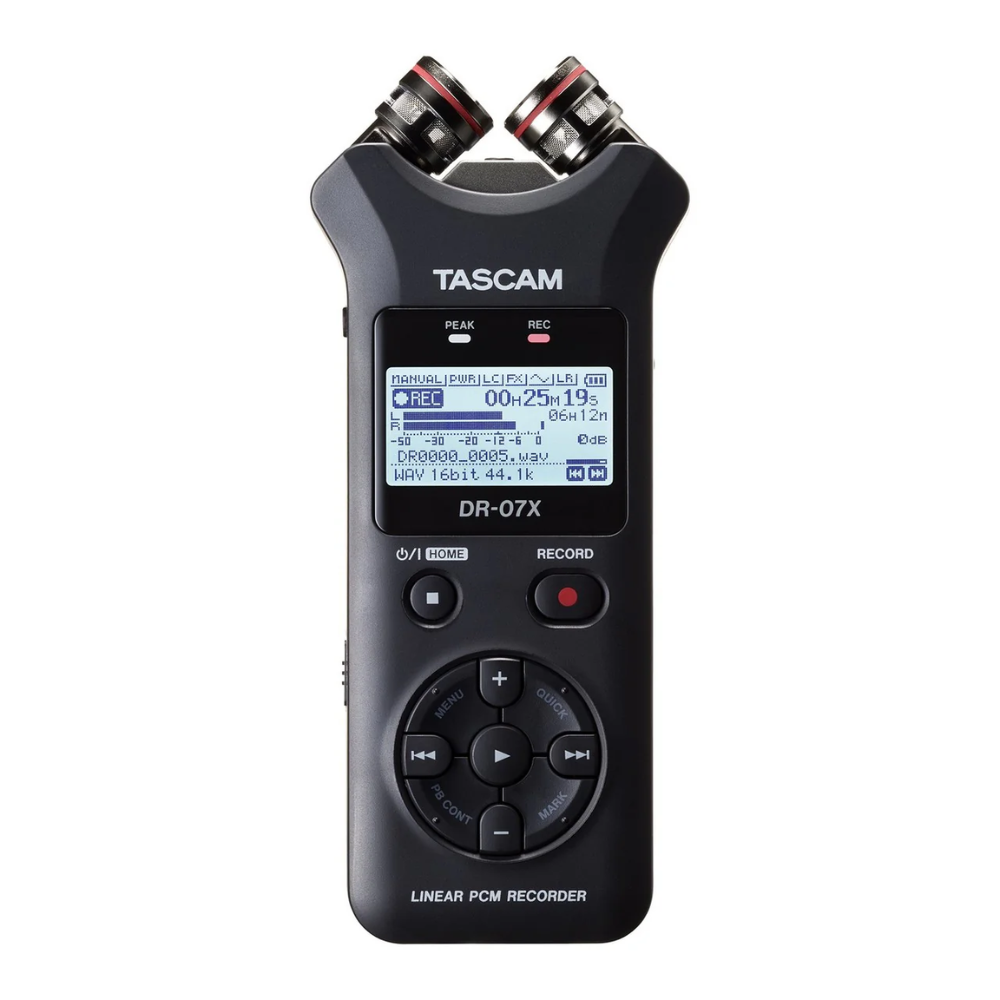

Tascam DR-07X Stereo Handheld Digital Audio Recorder and USB Audio Interface
Easy and compact audio recorder with great sound quality. Multiple fail-safe function and switchable microphone configuration make music recording more fun and brilliant. DR-07X bring high-quality recording to an easy-to-use portable powerhouse with a size and price that anyone can handle. A pair of condenser microphones handles small to loud sound up to 125dB SPL with the sensitivity to capture every detail.
Key Features
- High-quality unidirectional stereo condenser microphones that can record in both A-B and X-Y positions according to the situation
- Support multiple languages for menu (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
- Overwrite function for Punch-In recording with one level of Undo
- Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
- Dictation mode designed for human voice recording and transcription
- Reverb effect for vocal and instrument resonance
- Auto recording function that can detect the sound input signal level and automatically start recording
- Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
- Peak reduction function
- Self timer recording function
- Seamless gain control
- Three low cut filter levels (40/80/120Hz)
- Speed change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments)
- Level align feature that prevents uneven volume levels
- Equalizer setting for adjusting playback sound quality
- Divide/delete functions
- Loop/repeat playback function
- Resume function that retains the last stop position and starts playback from that position when power is turned back ON
- Jump back and play (1 to 10 sec in 1 sec increments, 10 sec, 20 sec, 30 sec)
- QUICK menu button for easy access to various functions
- High-quality 96kHz/24-bit WAV/BWF linear PCM recording and long recordings as MP3 files possible
- microSD/microSDHC/microSDXC (up to 128GB) cards can be used as recording media
- Mark function that can set up to 99 points for a single track Mark information can be utilized by BWF compatible software
- Audio files created on computers can be played (Only in formats compatible with this product)
- Built-in monaural speaker with an output of 0.3W
- Pre-recording buffer that can record up to 2 seconds prior to starting recording
- When a predetermined maximum file size is reached, a new file is created to continue recording
- Track increment creates new files at arbitrary locations during recording
- File name format can be set to use a user-defined word or the date
- The first six characters of the file name for recording can be set freely
- Playlist function
- A chromatic tuner is equipped which is helpful for practicing musical instruments
- Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
- Stereo mini line output / Headphone output connector
- 128×64 pixel graphic LCD with backlight
- High-speed file transfer to a computer is possible using USB 2.0
- Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
- Tripod attachment screw-hole built in to the unit
Technical Specifications
Recording Media
microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)
File System
FAT16/32, exFAT
Recording File Format
WAV / BWF
Sampling Frequency
44.1k / 48k / 96k Hz
Bit-depth
16 / 24-bit
MP3
Sampling Frequency
44.1k / 48k Hz
Bit-rate for recording
32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate
32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels
2-channel (Stereo) / 1-channel (Mono)
Playback speed control
0.5 to 1.5 times (in 0.1 increments) * 44.1k/48kHz only
Built-in Microphone
Unidirectional, Stereo (switchable between A-B and X-Y positions)
MIC/EXT IN
Connector
1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
Nominal Input Level
-20dBV
Maximum Input Level
-4dBV
Input Impedance
18k or more (PLUG IN PWR: OFF)
2k or more (PLUG IN PWR: ON)
PHONES/LINE OUT
Connector
1/8" (3.5mm) Stereo Mini jack (Unbalanced)
for LINE connection
Nominal Output Level
-14dBV (10k load)
Maximum Output Level
+2dBV (10k load)
Output Impedance
12
for Headphones connection
Maximum Output Power
20mW + 20mW (32 load)
USB
Connector
USB Micro B-type
Format
USB2.0 HIGH-SPEED
Built-in Speaker
0.3W, Mono
Low-cut Filter
40 / 80 / 120Hz
Chromatic Tuner
C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector
6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole
1/4" Tripod attachment screw-hole
Power
2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption
1.7 W (Max)
Battery Operation Time (Recording)
Alkaline (EVOLTA)
approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop)
approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D)
2.67" × 6.22" × 1.02" / 68 × 158 × 26 mm
Weight
4.5 oz. / 127 g
