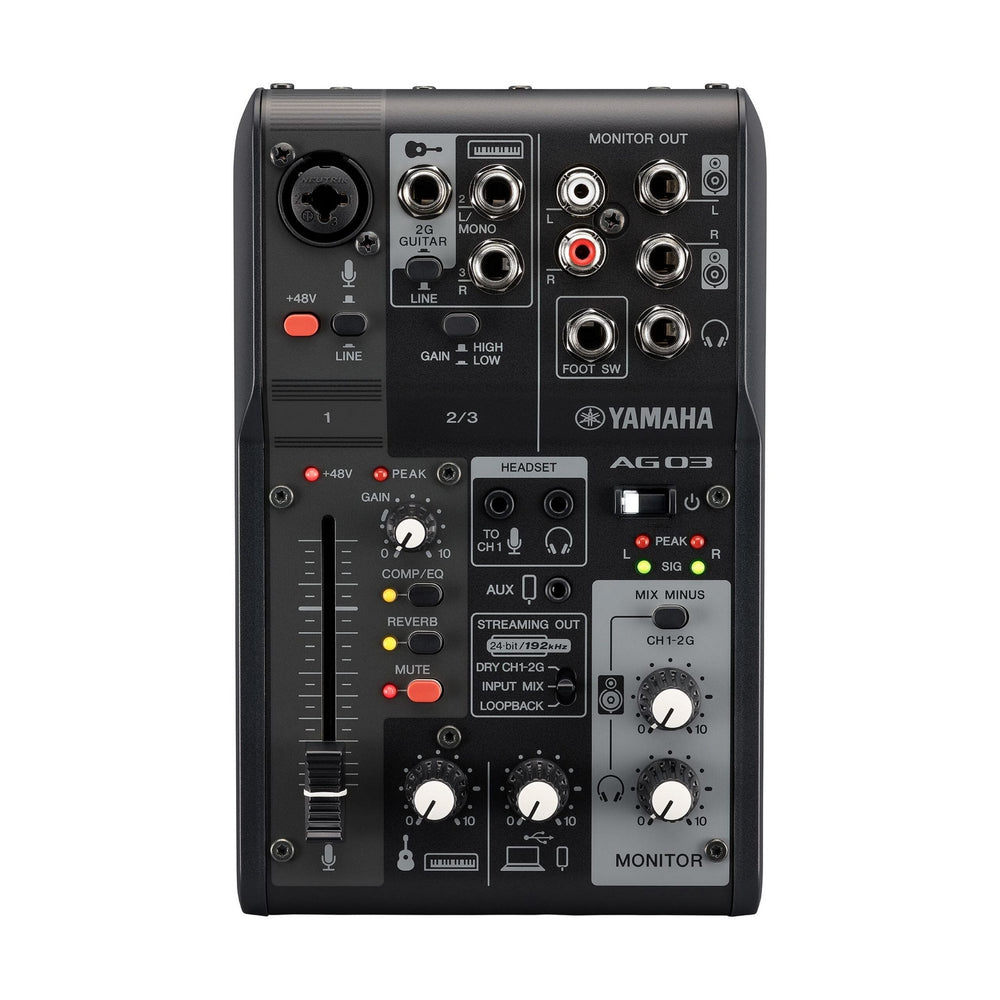

Yamaha AG03MK2 3-Channel Live Streaming USB Audio Interface Mixer, Black

Yamaha AG03MK2 3-Channel Live Streaming USB Audio Interface Mixer, Black

With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next-generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard by which all others will be compared.

The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.

In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4-inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities. You can also use LOOPBACK function to play back the audio signal from a connected USB device to USB streaming output as with previous AG series mixers.

As a result of adopting USB-C connectivity and enhanced internal circuitry, the AG03MK2 enjoys a marked improvement in sound quality that will elevate your streaming audio to a more professional level.

Regardless of your particular streaming application, you’ll want to give It'some depth and dimension, which adds a level of professionalism. The AG03MK2 comes equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and a 1-TOUCH amp simulator to add authenticity and punch to your guitar input. All these tools are processed by the internal DSP chip so there’s no delay, making it particularly valuable for live streaming when real-time accuracy is crucial. And when you want to capture pure, raw recordings through your preferred microphone and edit them later, you have the option to turn these effects off completely. AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, “Simple” and “Detail,” AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.

The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.

By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere. *For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.

*BMS-10A and mobile battery are sold separately.

The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.

Key Features

• 60 mm faders for mic CH1
• +48 V phantom power on CH1 input for condenser mics or Dl boxes
• Hi-Z input for guitars on CH2
• High resolution (24-bit, 192 kHz) 2-track audio recording and playback
• 4-pole mini-input/output (TRRS) to support a wider range of streaming applications
• Flexible inputs and LOOPBACK function ideal for live streaming or recording
• Mute button for convenient live streaming
• Easy control and pro sound with Amp Simulator and 1-TOUCH COMP/EQ, REVERB
• AG Controller (Windows/Mac/iOS) for precise parameter control
• Windows/Mac support by USB-C connection
• iOS connectivity via Apple Camera Adapter (requires external USB power supply)
• Android supported by 4-pole mini-input/output (TRRS)
• USB-C power input (5 V DC, 900 mA)
• Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available

Technical Specifications

Outline
Input Channels
Mono
1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
Stereo
1 - Stereo Line / Guitar Input (Mono)
Smartphone
1 - 4-pole mini-input/output (TRRS)
USB
1
Output Channels
PHONES
1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone
1 - 4-pole mini-input/output (TRRS)
MONITOR OUT
2 - L/R Stereo: Phone, RCA
USB
1
Bus
1 Stereo
Functions
MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors
DSP
COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB
USB Audio
2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input
1 - Type-C, 5 V DC, 900 mA
Power requirements
5 V DC, 900 mA
Power consumption
Max. 4.5 W
Dimensions
W
126 mm (5.0”)
H
63 mm (2.5”)
D
201 mm (7.9”)
Net weight
0.8 kg (1.8 lbs)
Included Accessories
USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others
Operating Temperature
0 to + 40 Degrees Celcius
