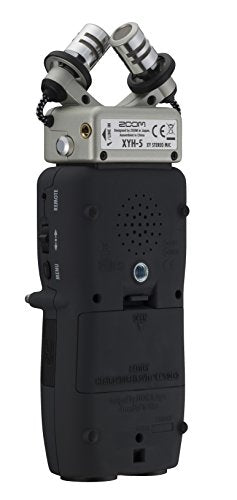

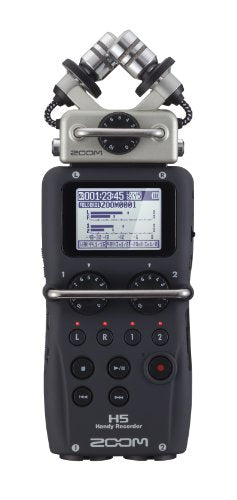

Zoom H5 Handheld Four Track Interchangeable Capsule Portable Digital Voice Recorder

Please Note: SD card is no longer included.

Our products are constantly evolving to meet the needs of the creators who use them. With the H5 Handy Recorder, the tradition continues. The H5 provides four tracks of simultaneous recording and, like our flagship H6, it can use all Zoom interchangeable input capsules, allowing you to choose the best microphone for every recording situation. The flexible and powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic newsgathering.

X/Y recording allows you to cover a wide area yet still capture sound sources in the center with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90 degree angle. These are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to isolate the unit from the H5 body and thus minimize vibration and handling noise.

The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be preciseequivalent to the sound of a jet aircraft from less than 200 feet awayenabling you to capture sounds louder, closer, and cleaner than you ever could before.

Key Features

• Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
• Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
• Compatible with all Zoom input capsules
• Four-track simultaneous recording
• Large backlit LCD display
• Records directly to SD and SDHC cards up to 32 GB
• Up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB pad
• Analog-style gain controls for each input
• Protective "roll-bar" type covers prevent accidental movement of gain controls
• Plug-in power (2.5 volts)
• Built-in effects, including low-cut filtering, compression, and limiting
• Chromatic tuner and metronome
• Auto-record, Pre-record, and Backup-record functions mean that you'll never miss that perfect take
• MS decoding
• Multitrack to stereo internal mixdown
• Normalize, Divide, and Trim editing
• Voice memo and up to 99 marks per recording
• A/B loop playback
• Variable playback speed and variable pitch without affecting playback speed
• Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
• Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
• Uses two standard AA alkaline or NiMH rechargeable batteries
• Over 15 hours of operation with alkaline batteries

Technical Specifications

GENERAL:
Recording media:
SD card: 16MB to 2GB , SDHC card: 4GB to 32GB
Display:
Backlit LCD (128 x 64 pixels)
INPUTS:
INPUTS L/R :
Mic type: Unidirectional
Sensitivity: -45 dB, 1 kHz at 1 Pa
Input gain: - Infinity to 52 dB
Max sound pressure input: 140 dB SPL
MIC/LINE IN :
Connector: 1/8" stereo mini jack
Input gain: - Infinity to 52 dB
Input impedance: 2 k ohm or more
Plug-in power: 2.5V supported
Backup recording: -12dB lower than set L/R input gain
INPUTS 1/2:
Connectors: XLR / TRS combo jacks
(XLR: Pin 2 hot / TRS: Tip hot)
Input gain (PAD OFF): - Infinity to 55.0 dB
Input gain (PAD ON): - Infinity to 35.0 dB
Input impedance: 1.8 k ohm or more
Max input level: +22 dBu (PAD ON)
Phantom power: +12V /+24V /+48V
Equivalent Input Noise (EIN): -120 dBu or less
OUTPUTS:
LINE OUT:
Connector: 1/8" stereo mini jack
Rated output level: -10 dBm
Output load impedance: 10k ohm or more
PHONE OUT:
Connector: 1/8" stereo mini jack
Output Level: 20 W +20 W into 32 ohm load
Built-in speaker:
400mw 8 ohm mono
RECORDING FORMATS:
STEREO MODE:
WAV (BWF-compliant)
Sampling frequency: 44.1/48/96 kHz
Bit rate: 16/24 (Stereo)
Maximum simultaneous recording tracks: 2
MP3
Sampling frequency: 44.1kHz
Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps
MULTITRACK MODE:
WAV (BWF-compliant)
Sampling frequency: 44.1/48 kHz
Bit rate: 16/24 (Mono/Stereo)
Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)
USB:
Mass Storage Class operation:
Class: USB 2.0 High Speed
Audio Interface operation: Multitrack mode:
Class: USB 2.0 High Speed
Sampling frequency: 44.1/48kHz
Bit rate: 16/24 bit
Inputs / Outputs: 4 / 2
Audio Interface operation: Stereo mode:
Class: USB 2.0 Full Speed
Sampling frequency: 44.1/48kHz
Bit rate: 16 bit
Inputs / Outputs: 2 / 2
USB bus powered operation possible
(iPad operation supported in Stereo mode only)
POWER REQUIREMENTS:
AA size (LR6) battery x 2
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power
Included Accessories:
Operation manual
XYH-5 X/Y mic capsule
SD card (2 GB)
AA size (LR6) battery x 2
USB cable
Foam windscreen
Case
Steinberg WaveLab LE software download
Steinberg Cubase LE software download
