Elation Prisma Driver 8 IP 48VDC, IP65 Driver System
Description
Description

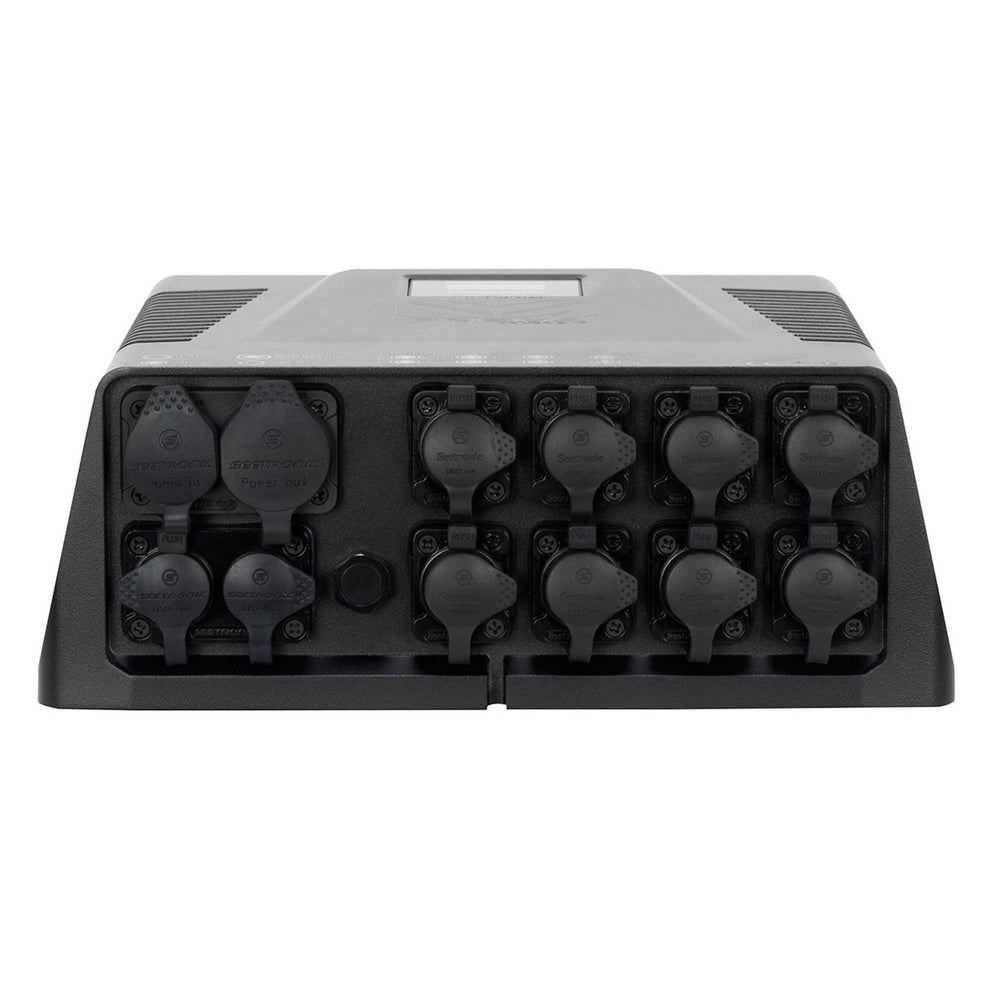

Elation Prisma Driver 8 IP 48VDC, IP65 Driver System
PRISMA DRIVER 8 IP is an easy to use 48VDC, IP65 protected,driver system which provides individual DMX-512 control including variabledelayed time dimming modes for up to (8) PRISMA MINI UV LED series fixturesincluding the PRISMA MINI PAR 20, PRISMA MINI PAR 45 and the PRISMA MINI BAR20.
Technical Specifications
CONSTRUCTION
Rugged IP65 Housing
Easy Keyhole Slots for Wall/Surface Mounting
CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
CONNECTIONS
8x 4pin locking output sockets (8 PRISMA MINI fixtures max)
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length
4.05 in. (102.9mm)
Width
10.4 in. (264.3mm)
Height
8.74 in. (221.9mm)
Weight
8.05 lbs. (3.65 kg)
ELECTRICAL
AC90-240V, 50-60Hz
48VDC 8.3A
167W Max Power Consumption
