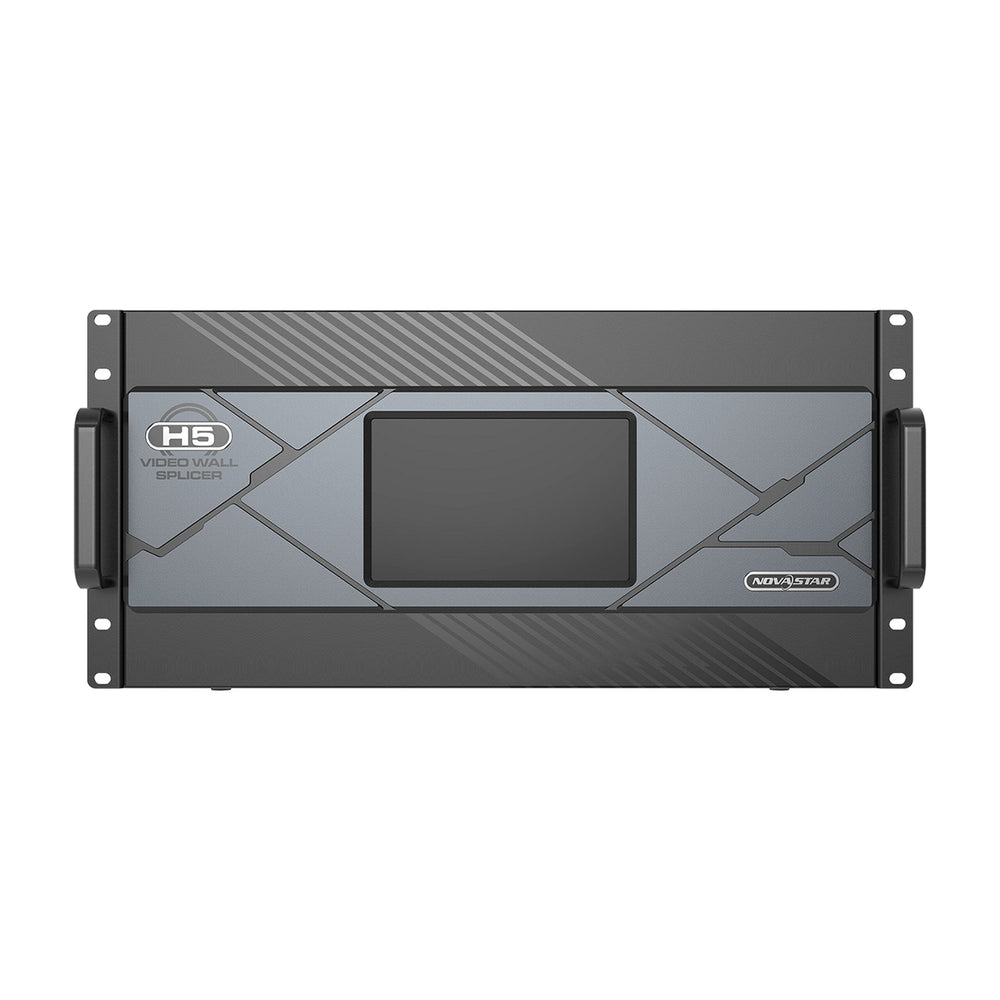

NovaStar H5 All-In-One Splicer and Controller, 5U Chassis
Description
Description
NovaStar H5 All-In-One Splicer and Controller, 5U Chassis
H Series is NovaStar's flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications. It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. With the leading image processing technology in the industry, H series can give you an astonishing visual effect, truly making it the perfect solution for fine-pitch LED applications. H5 offers a modular plug-in design, with a variety of connector modules available. It comes with the control card and power supply. A minimum of 1 additional input card, and 1 output card is required for full functionality.
Key Features
- 5 rack space unit with control card and PS
- Multi-screen management for centralized control
- Modular plug-in component configuration
Technical Specifications
Rack space
5U
Minimum cards = 1 input, 1 output
Input cards
10 max.
Input channels
40 max.
Output cards
3
Load capacity (4K card)
39m pixels
Max. layers
48
In the Box
Power cord
RJ45 Ethernet cable
Grounding cable
HDMI cable
Quick start guide
Certificate of approval
Safety manual
Power
100-VAC, 50/60Hz
Power consumption
400W
10A-5A
Backup PS: optional
Dims & Weight
19” x 21” x 9”
55.2 lb
