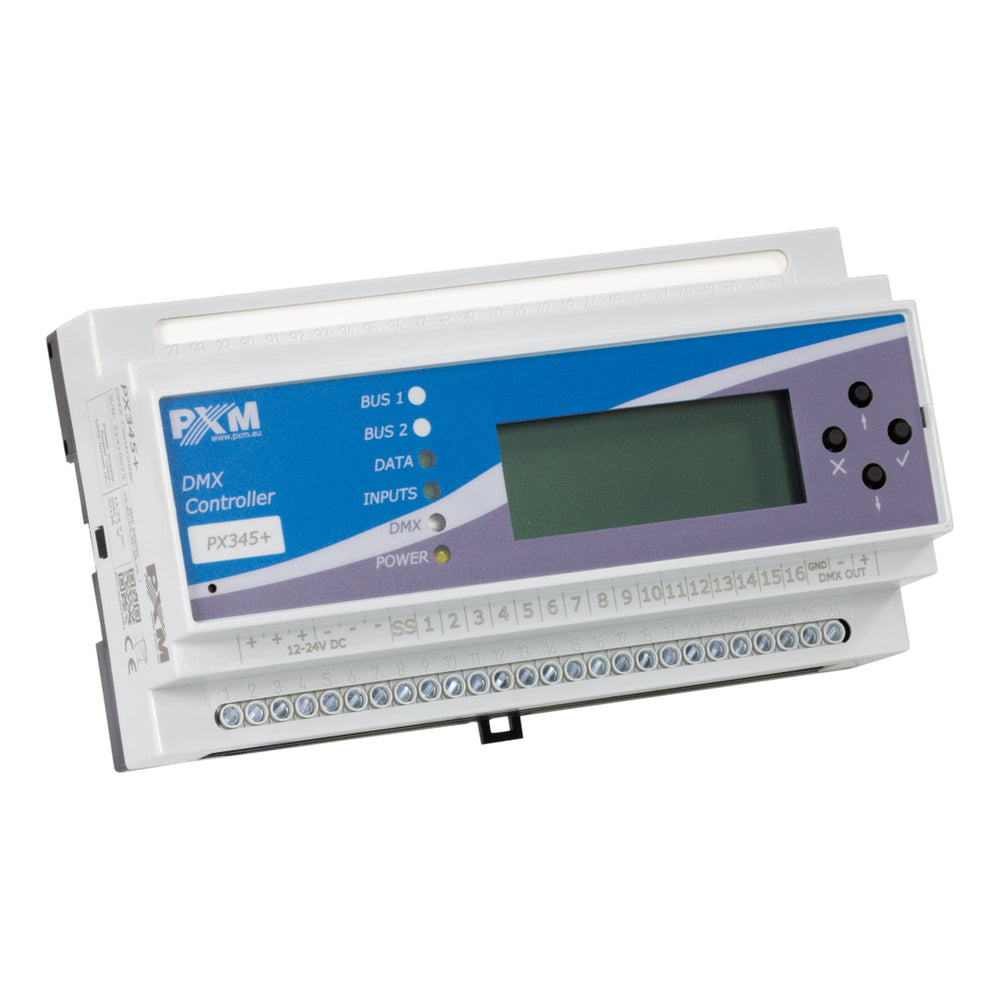

PXM PX345+ 128-Channel DMX Lighting Controller

PXM PX345+ 128-Channel DMX Lighting Controller

The PX345+ Compact DMX Controller is designed for those looking to control intricate lighting systems. This advanced architectural lighting controller delivers you several control opportunities through programmable functions, managing lighting, multimedia, and other DMX protocol-operated devices seamlessly. Characterized by a single DMX output line, it can offer up to 128 channels and trigger multiple configuration items simultaneously.

This sophisticated content-centric device presents various triggering options that include an astronomical clock, a real time clock, programmed timers, digital inputs, mobile device applications, and the Modbus protocol. The PX345+ puts total control in your hands.

Supported by the cutting-edge PxDesigner Windows application, programming the device is made simple. The added feature of a built-in library makes visualization of your project easier - it enables distribution of devices on a graphic project, simplifying the creation of complex light shows that can even be synchronized with sound. The PX345+ Compact DMX Controller is your ultimate tool for dynamic light show creation.

Key Features

• Advanced architectural lighting controller, PX345+.
• Able to control complex lighting systems.
• Includes programmable functions for controlling lighting, multimedia, and DMX protocol devices.
• Has 1 DMX output line (128 channels) for managing multiple configurations.
• Triggering options include astronomical clock, real-time clock, timers, digital inputs, mobile applications, and Modbus protocol.
• Paired with a sophisticated PC application, PxDesigner (Windows).
• Built-in library within PxDesigner aids in designing intricate light shows, even those synchronized with sound.

Technical Specifications

DMX IN/OUT channels
0/128
ON/OFF control inputs
16
Configuration Via PC
LAN
Scenes
251000
Programs
512
Sequences
128
Timers
1024
Power Consumption
max. 6 W
Power Supply
12 – 24 V DC
Weight
0.3 kg
Dimensions
Width
157mm (9 DIN rail modules)
Height
86mm
Depth
60mm
