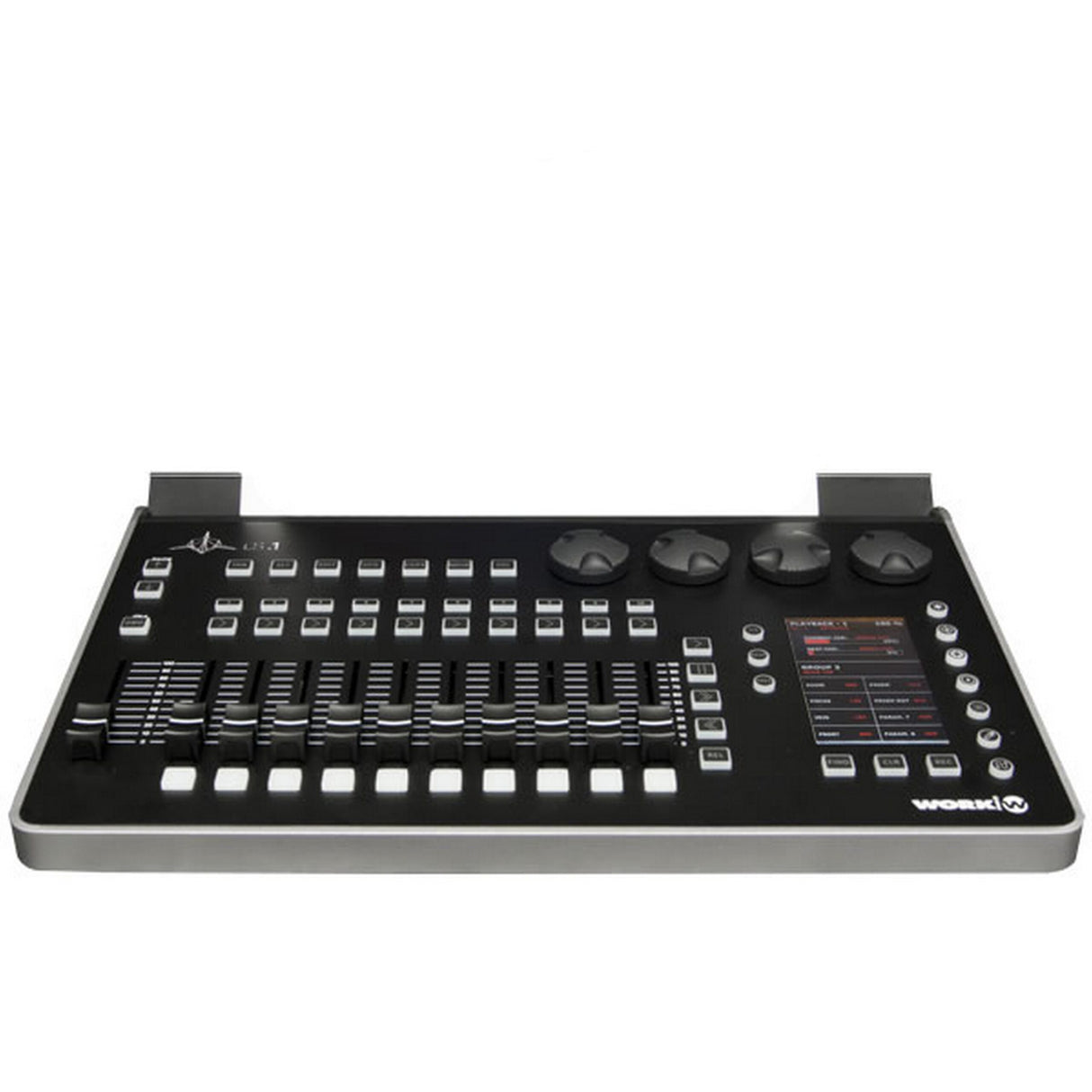

LightShark LS-WING DMX Controller Extension for LS-1 and LS-Core

LightShark LS-WING DMX Controller Extension for LS-1 and LS-Core

LS .wing is an innovative hardware which offers several products in one: a Wing for LS .1 / LS .Core, an OSC/UDP hardware controller, a MIDI controller and a user programmable remote controller. LS .wing can send/receive OSC commands through ethernet from any software or hardware compatible with this protocol. In addition, it can send/receive UDP messages, making it compatible with any AV device or software on the market. LS .wing offers outstanding versatility to the lighting control market, as it can be configured to be compatible with other lighting systems. Developed as a 4 in 1 product, LS .wing can be a straightforward fader wing, an OSC hardware controller or a standalone MIDI console for any device that accepts MIDI control via USB. A total of four USB ports are provided, including a USB-B port, making it easy to connect to MIDI devices and charge smartphones and tablets.

Technical Specifications

Buttons
20 executor, 10 selection, 20 Playback, 10 Flash, fully configurable
Faders
10 faders fully configurable
I/O ports
1xLamp port (XLR-3 5V)
2xDMX (XLR-5)
3xLAN (EtherCon)
2xUSB-A (Data) + 1xUSB-A(only power 5V)
1xUSB-B
1xTrueOne mains
Configuration interface
Via Built-in Webserver. Accesible through LAN connection
DMX Outputs
Built-in LAN to DMX ArtNET, sACN node with 2 universe outputs
Lamp connector DC Voltage
5V
USB POWER connector max. current
2A
USB Data connectors max Current
500mA each
Dimensions
325 x 100 x 330 mm
Weight
2,7 kg
Power supply
90-230V 50/60Hz TrueOne connector
