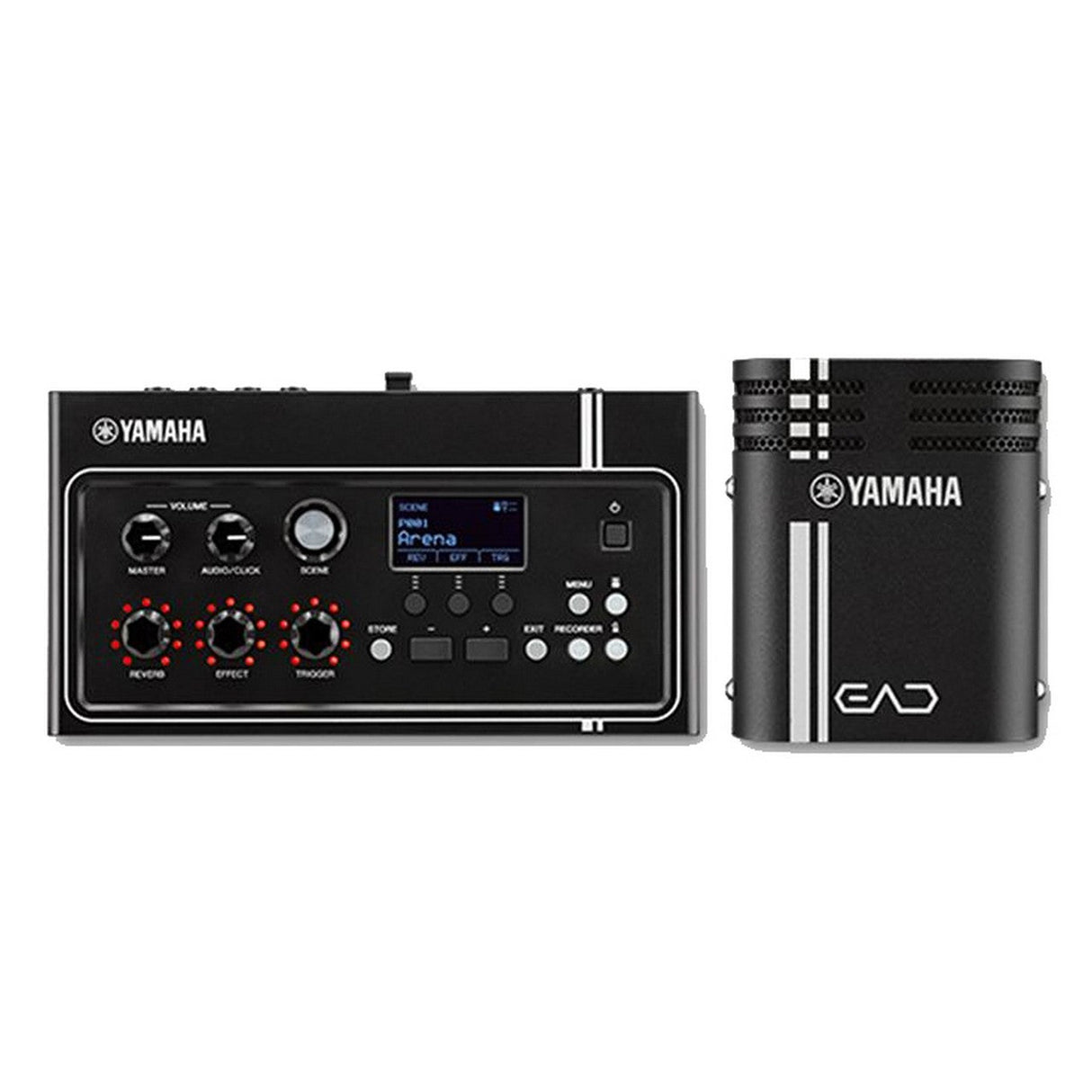

Yamaha EAD-10 Electronic Acoustic Drum Module
The EAD10 acoustic electronic drum module instantly transforms your acoustic drum kit into a powerful digital/electronic hybrid with sampled sounds and studio quality digital effects. It allows you to play and record your acoustic drums along with your favorite artists from your music library or from tracks from your friends and share them digitally.
With the free iOS app you can shoot, edit and upload videos of your drum performances.
The EAD10 enhances every aspect of your drumming the way you practice, record and perform live and makes your acoustic drums do more.
Key Features
- 50 preset/200 user Scenes. transform your acoustic drum sounds dynamically.
- Just attach the EAD10 sensor to the bass drum and you can pick up overall drum sounds.
- With the free iOS app you can practice, shoot, edit and upload videos of your drum performances.
Technical Specifications
Dimensions
260 x 63 x 138 mm
Weight
654 g
Scenes
Preset: 50, User: 200
Reverb
11
Effects
Mic:21, Trigger:10
Trigger Sounds
Tone generator: AWM2
Maximum polyphony: 64
Voices: 757
Recording Time
Internal memory: approx. 1 min 30 sec
USB flash drive: approx. 30 min/file
Recording Format
Recorder/playback: WAV (44.1 kHz, 16 bit, stereo)
Audio Files
Import limit: Up to 100
Playback sample format: 44.1 kHz
Wave memory: 32MB
Maximum loadable sample size: 1 mono sample: 1.75 MB, 1 stereo sample: 3.5MB
Sample format: WAV (16 bit)
Click-track
Tempo: 30-300 BPM, tap tempo function
Time signatures: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets
Functions
Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ, metronome, auto power off
Connectors
DC IN (12 V), PHONES (standard stereo phone), AUX IN (stereo mini), OUTPUT L/MONO, R (standard mono phone), USB TO DEVICE, USB TO HOST
Sensor Unit
For trigger sensor: A (standard stereo phone)
For mic sensor: B (standard stereo phone)
Trigger Input
Stereo (L: trigger, R: trigger): 1 KICK/2 (also serves as A), 3 SNARE/4 (standard stereo phone)
Three-zone (L: trigger, R: rim switch): 5, 6 (standard stereo phone)
Foot Pedal
FOOT SW (standard stereo phone)
Sensor Outputs
For trigger sensor: A (standard phone)
For mic sensor: B (standard stereo phone)
Sensor Types
Microphone: high SPL mic x 2
Trigger: exclusive for bass drum x 1
