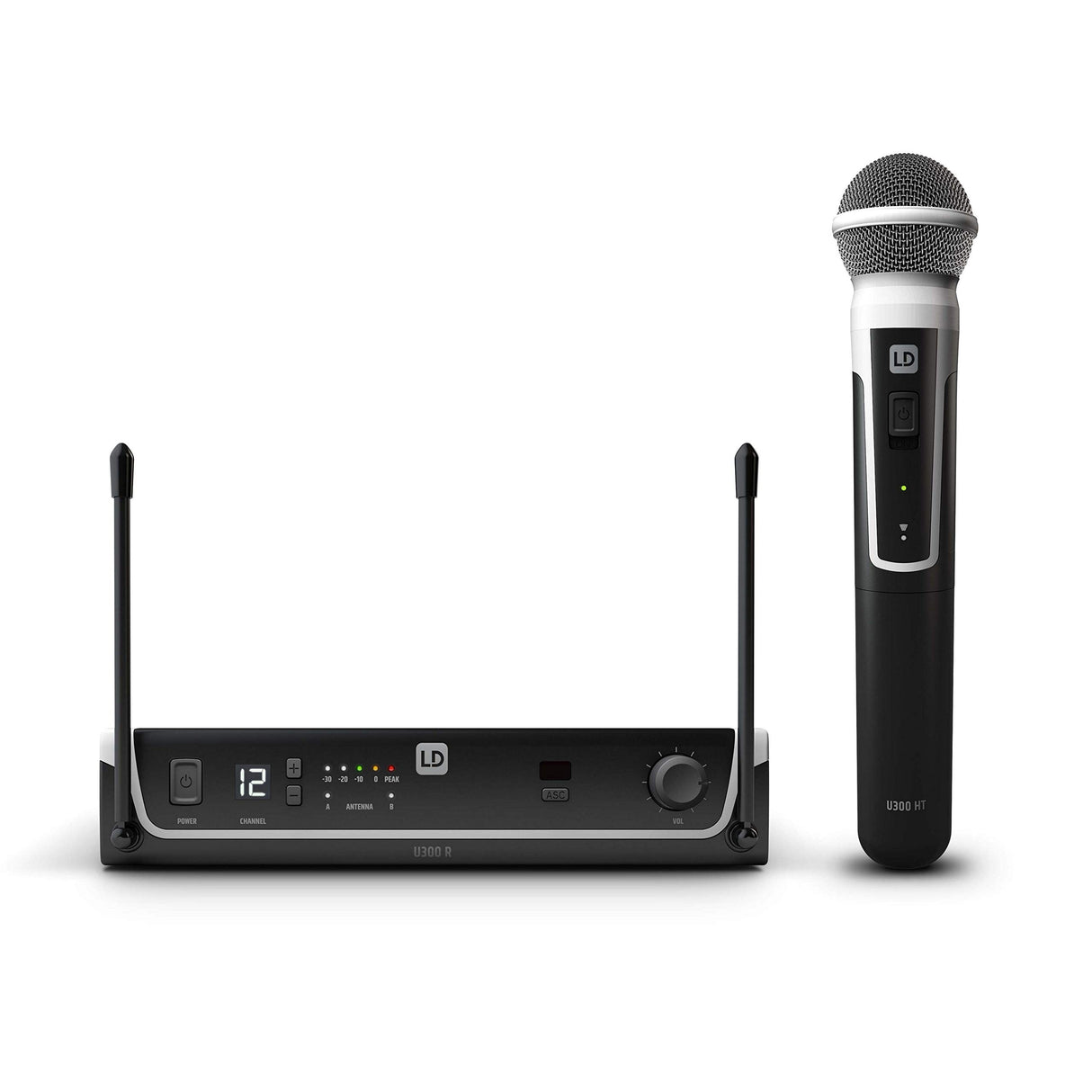

LD Systems U305.1 HHD Wireless Microphone System with Dynamic Handheld Microphone, 514 - 542 MHz

LD Systems U305.1 HHD Wireless Microphone System with Dynamic Handheld Microphone, 514 - 542 MHz

Developed in Germany, the UHF diversity wireless systems from the U300 series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584-608 MHz, 655-679 MHz, 823-832 MHz + 863-865 MHz, 470-490 MHz or 514-542 MHz. Up to six U300 systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300 transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300 receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500-series replaceable heads. U300 instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

Technical Specifications

Product type
Wireless Microphone Systems
Type
Set
Transmission frequency range
514 - 542 MHz
Weight
0,94 kg

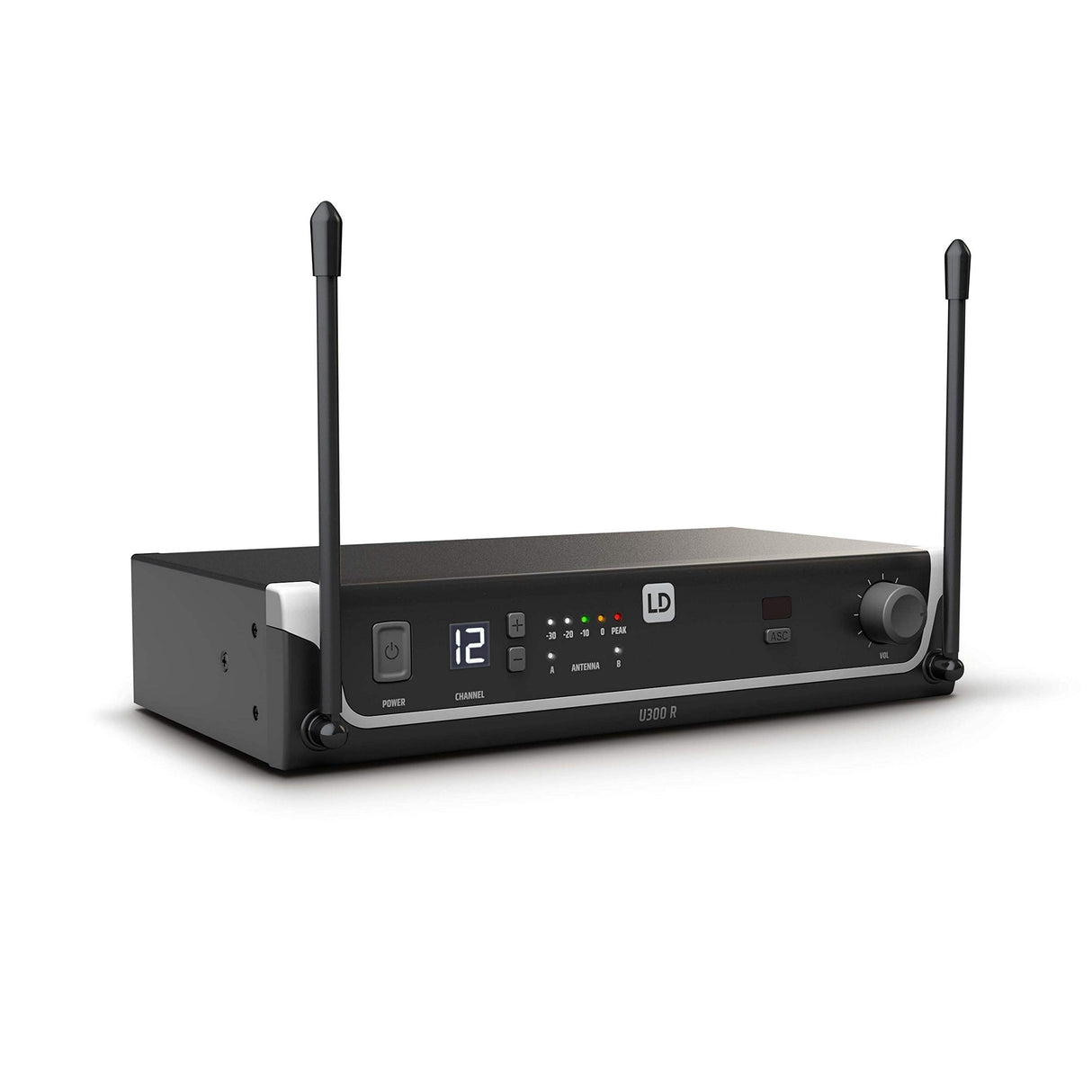

LDU3051R - LD Systems U305.1 HHD Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Channels
12
Groups
1
Antenna inputs
2 x fixed
Frequency response
25 - 16.000 Hz
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
104 dB
Audio output, balanced
XLR
Controls
volume
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level
Indicators
LC display
Operating voltage
12 V DC - 18 V DC (500 mA), external power supply
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Headphones outputs
6.3 mm TRS
Weight
0,7 kg
Other features
IR frequency synchronisation
Width
211 mm
Height
43 mm
Depth
120 mm
Accessories (included)
Power supply

LDU3051MD - LD Systems U305.1 HHD Dynamic handheld microphone
Type
Transmitters
Microphone type
condenser
Directivity
Cardioid
Frequency response
55 - 16000 Hz
Rated HF output power
10 mW
Controls
Power On/Off
Indicators
Power LED (Power ON: green)
Operating voltage
2 x AA battery
Operating time
>10 h
Length
257 mm
Diameter
50 mm
Weight
0,235 kg
Other features
Pilot tone
