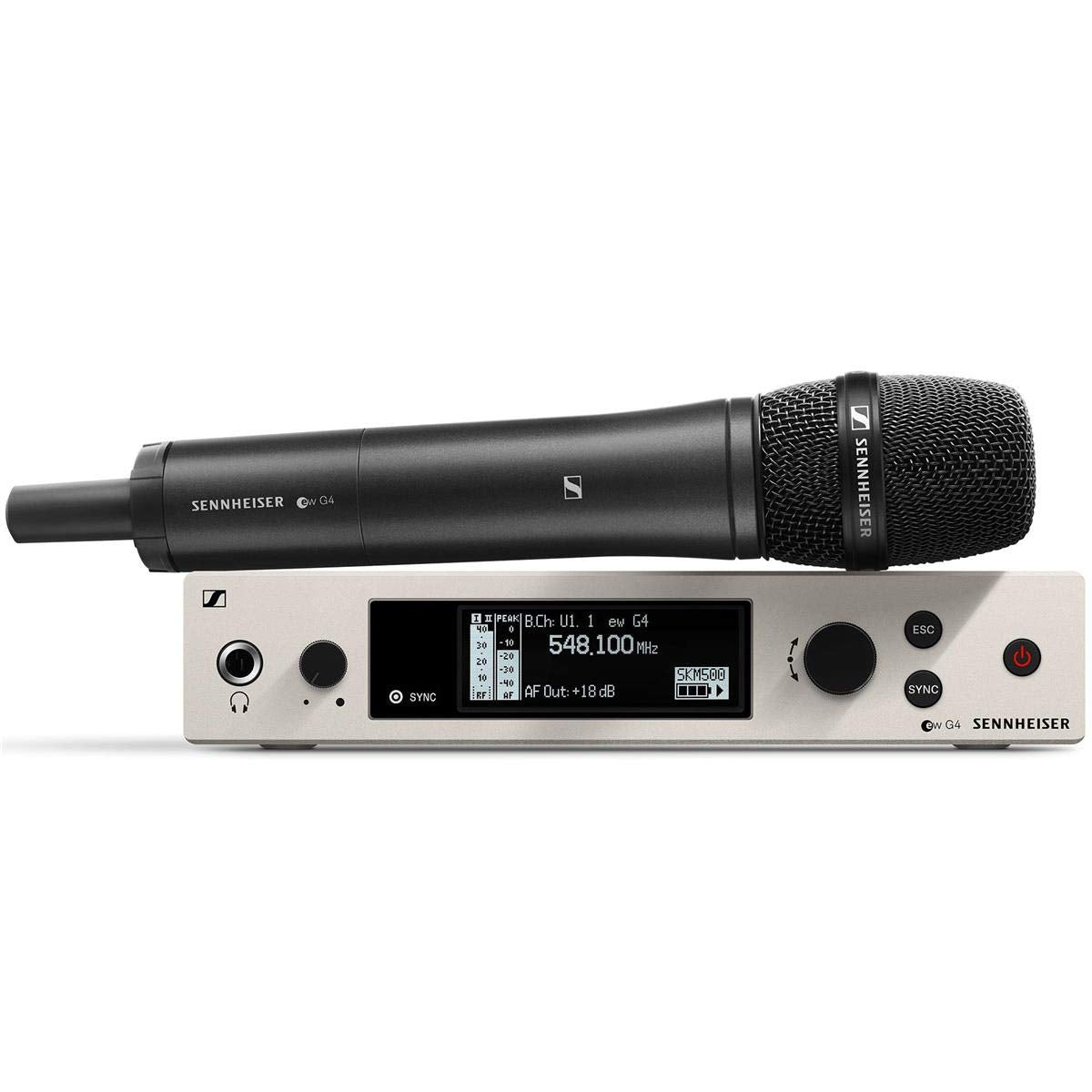

Sennheiser ew 500 G4-965-GW1 | Wireless Vocal Set

Sennheiser ew 500 G4-965-GW1 Wireless Vocal Set

The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
The pinnacle of the evolution series, powered by Sennheiser’s renowned e 900 capsules e 935, e 945, and e 965 on a lightweight black aluminum handheld transmitter, ready to take the world’s biggest live stages.

Frequencies:
AW+, 470 - 558 MHz
GW1, 558 - 608 MHz

Key Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Technical Specifications

EM 300-500 G4
Dimensions
Approx. 202 x 212 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<= 0.9 %
Weight
Approx. 980 g
Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise ratio
>= 115 dBA
Switching bandwidth
up to 88 MHz
Peak deviation
+/-48 kHz
Nominal deviation
+/-24 kHz
Modulation
Wideband FM
Power supply
12 V DC
Antenna connector
2 BNC sockets
Current consumption
350 mA
Adjacent channel rejection
Typically >= 75 dB
Intermodulation attenuation
Typically >= 70 dB
Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity
< 2.5 mcgV for 52 dBA eff S/N
Squelch
5 to 25 dBmcgV in steps of 2 dB
Equalizer
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range
-10 °C to +55 °C
Receiver Principle
True diversity
Blocking
>= 75 dB

SKM 500 G4
Dimensions
Approx. 50 x 265 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<= 0.9 %
Weight (incl. batteries)
approx. 450 g
Signal-to-noise ratio
>= 115 dBA
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 88 MHz
Peak deviation
+/-48 kHz
Nominal deviation
+/-24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: <= 25 µA
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response
80 - 18,000 Hz
Temperature Range
-10 °C to +55 °C
Frequency stability
<= +/-15 ppm

MMK 965-1
Frequency response
40 to 20,000 Hz
Max. sound pressure level
144 dB
Transducer principle
externally polarized dual diaphragm condenser microphone
Weight
162 g
Diameter
of diaphragm: 2.54 cm (1")
Pick-up pattern
cardioid/supercardioid, switchable
Sensitivity in free field, no load (1kHz)
7.0 mV/Pa
Equivalent noise level
18 dB
Dynamic range
126 dB(A)

What's in the box?
EM 300-500 G4 true diversity receiver
SKM 500 G4 handheld transmitter
MMD 935-1 microphone head (only 935 variants)
MMD 945-1 microphone head (only 945 variants)
MMK 965-1 microphone head (only 965 variants)
MZQ 1 microphone clamp
2 AA batteries
power supply
GA 3 rackmount set
2 rod antennas
quick guide
safety guide
manufacturer declaration sheet
