Shure BLX24R/PG58 Wireless Handheld Microphone System, H11 572-596 MHz

Shure BLX24R/PG58 Wireless Handheld Microphone System, H11 572-596 MHz

Shure BLX24R/PG58 Wireless Vocal System: A Comprehensive Audio Solution

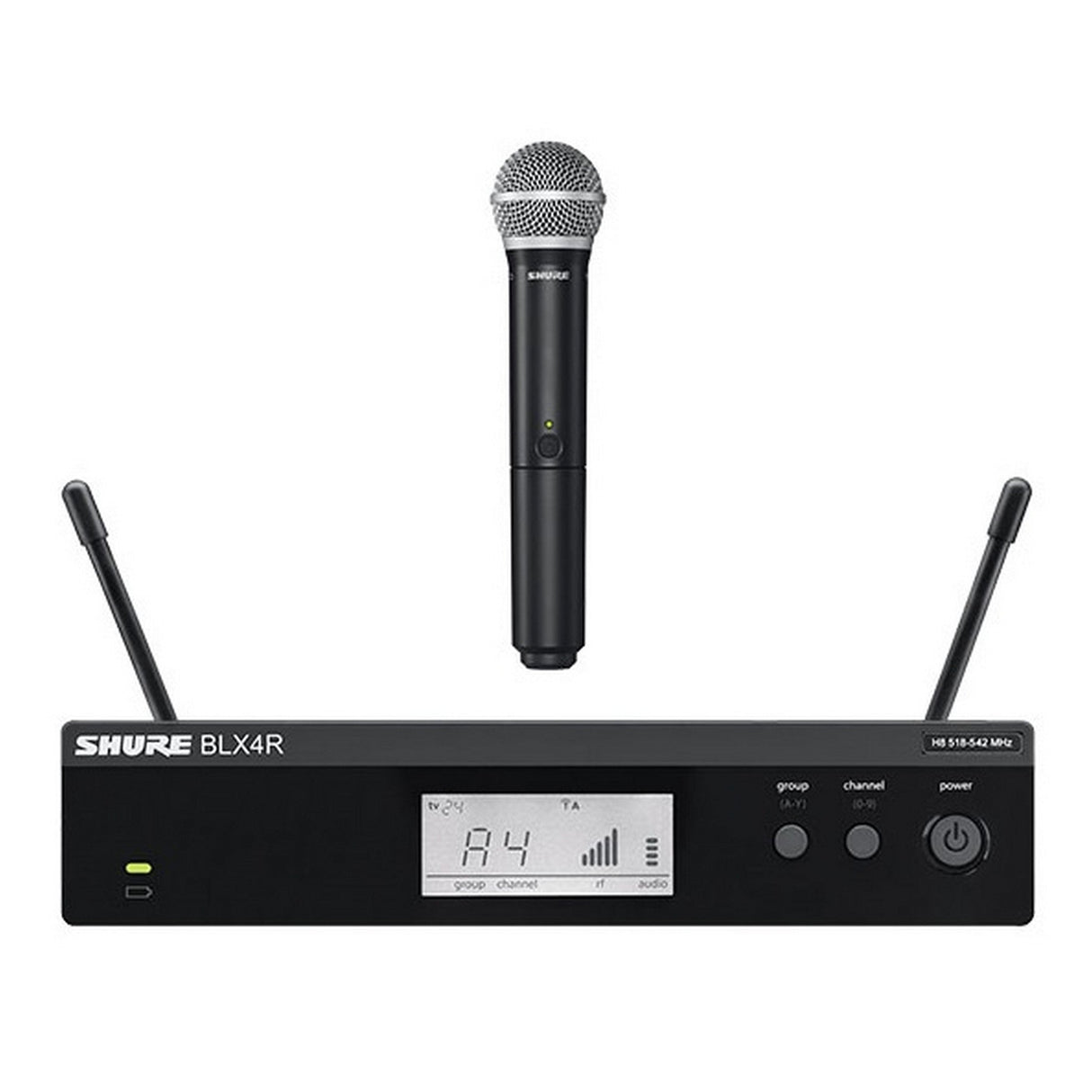

The Shure BLX24R/PG58 Wireless Vocal System is the perfect combination of high-quality sound, easy installation, and long battery life. It comes equipped with a variety of components to provide you with legendary audio performance straight out of the box. The system includes a BLX4 tabletop single-channel receiver, PG58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.

The BLX4R is rack-mountable and boasts rugged metal construction, making it both user-friendly and durable. It offers easy setup and intuitive controls, with one-touch QuickScan frequency selection to quickly locate the best open frequency in case of interference. Additionally, the removable antennas allow for quick antenna distribution, making it ideal for use with BLX® Wireless Systems.

The BLX24R/PG58 system delivers superior audio quality that's perfect for any band or vocal need. It supports a range of up to 300 feet (100m), enabling you to take your performance into the audience without any interruptions. The system provides easy setup and one-touch scan and selection, allowing you to own the stage.

You can rely on the BLX24R/PG58 to last for the entire duration of your performance, thanks to its impressive 14-hour battery life. The BLX transmitters draw their power from a single pair of AA batteries, allowing the show to go on and on.

This system is highly versatile, with the capability to run up to 12 channels per frequency band*. There is an impressive variety of Shure microphones available in BLX systems, so you can select the one that best suits your needs.
Please note that this is region and environment dependent.

With the Shure BLX24R/PG58 Wireless Vocal System, you can enjoy high-quality audio performance without any wires holding you back.

Technical Specifications

BLX2
Audio Input Level
0dB: -20 dBV maximum
-10dB: -10 dBV maximum
Gain Adjustment Range
10 dB
RF Transmitter Output
10 mW, typical
varies by region
Dimensions
8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight
7.7 oz. (218 g) without batteries
Housing
Molded ABS
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Battery Life
up to 14 hours (alkaline)

BLX4
Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: -27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load)
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight
8.5 oz. (241 g)
Housing
Molded ABS
Power Requirements
12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

Included Accessories
1 WA371 Swivel Adapter
1 PS24 Power Supply
1 31B1856 Thread Adapter
