Yamaha  |  SKU: YMHA-SPKER-VXC6W

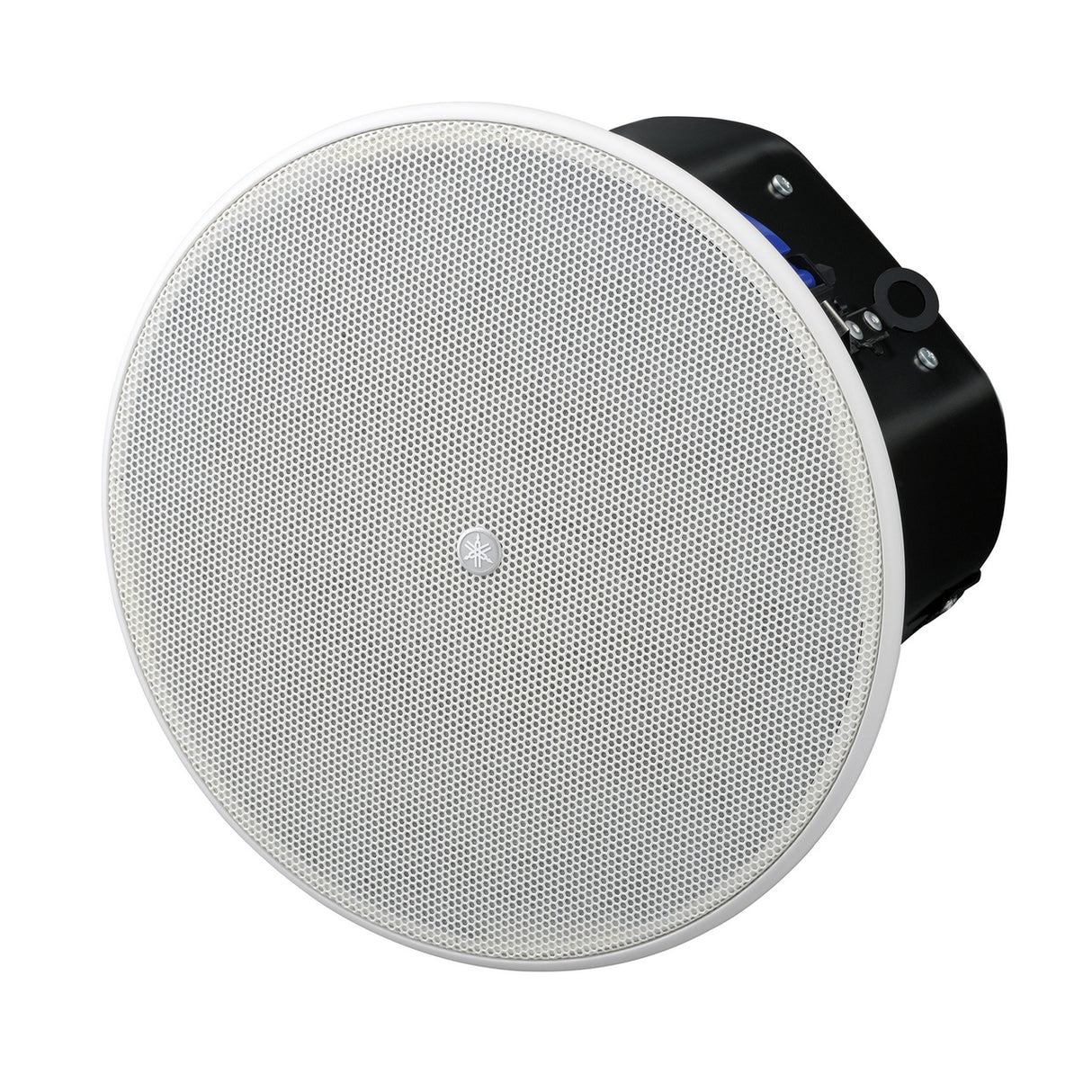

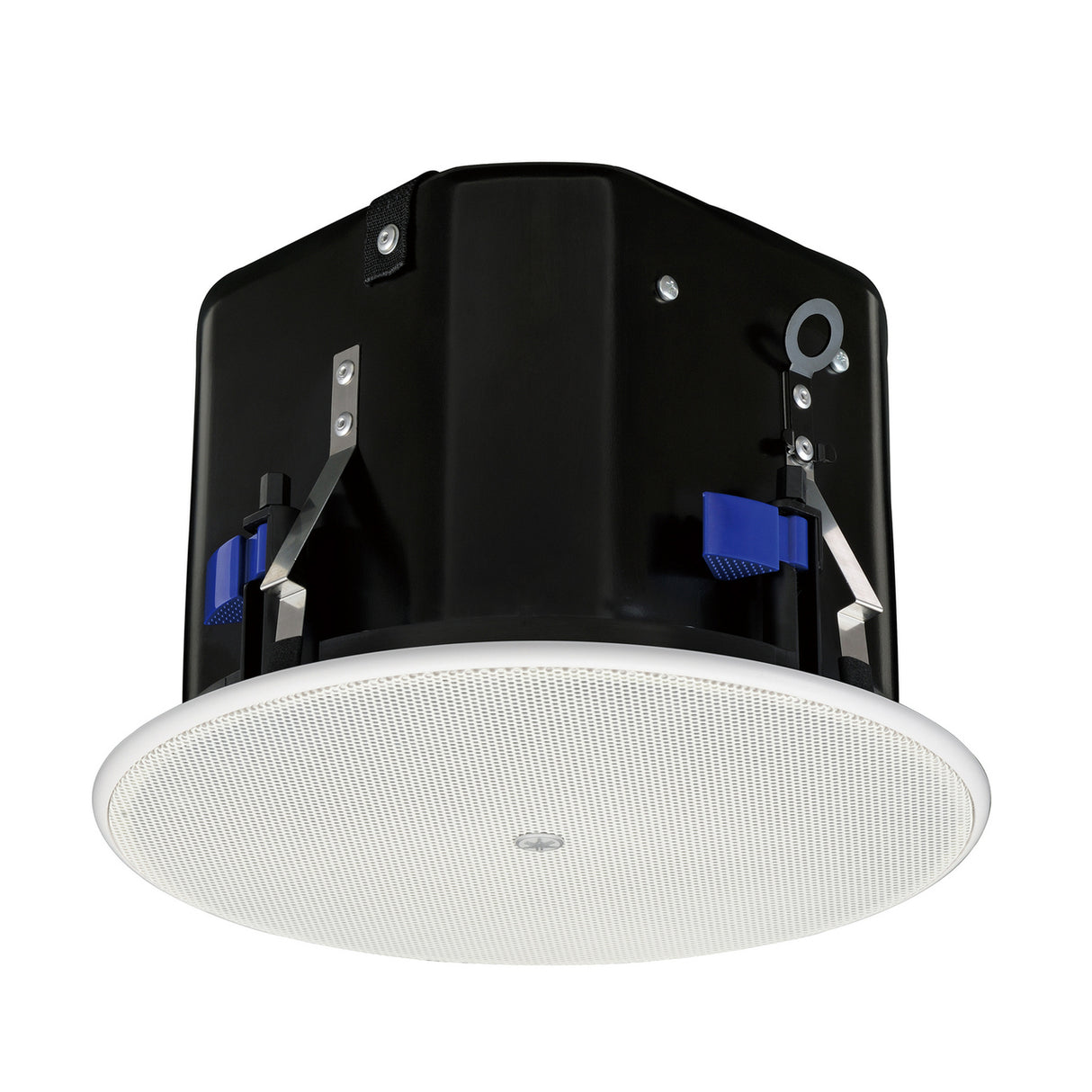

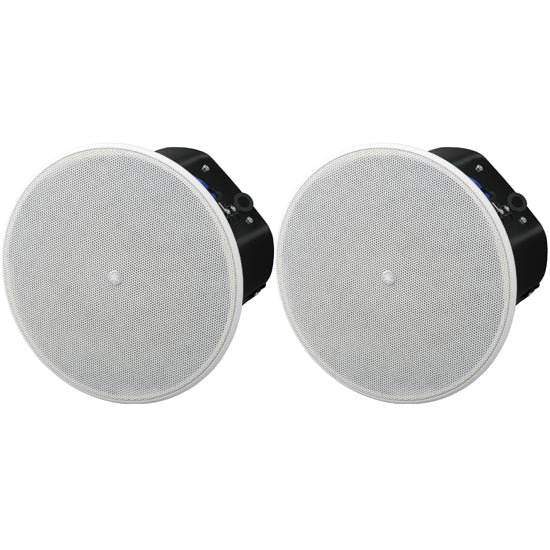

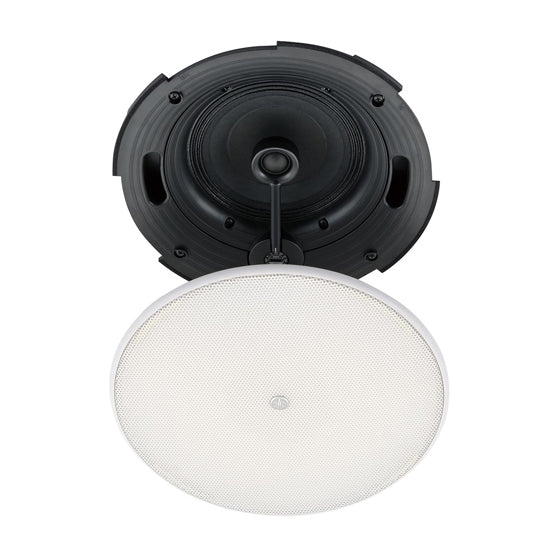

Yamaha VXC6W | Two Way 6.5 Inch Woofer Pair White

$41998
🚚 Order within the next 2 hours, 15 minutes for delivery by 22 May, 2024.

Condition: New

Description

Yamaha VXC6W Two Way 6.5 Inch Woofer Pair White

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.

Key Features

  • Ceiling speakers for any application - high or low impedance drive with a single speaker
  • Safe, seamless installation
  • Newly customized transducers with large, powerful magnetic circuits that increase driving and braking force
  • Dedicated tweeter diaphragms and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction
  • Cabinets are built tough to meet the demands of a wide variety of commercial environments

Technical Specifications

Speaker type
2-way, Acoustic suspension
Frequency range (-10dB)
56Hz - 20kHz
Nominal coverage
110 degrees conical
Components
LF: 6.5 Inch cone
HF: 0.75 Inch soft dome
Power rating
Noise: 75W
PGM: 150W
Peak: 300W
Nominal impedance
8 Ohm
Transformer taps
100V: 60W (170 Ohm), 30W (330 Ohm), 15W (670 Ohm)
70V: 60W (83 Ohm), 30W (170 Ohm), 15W (330 Ohm), 7.5W (670 Ohm)
SPL
Sensitivity: 86dB SPL
Peak (Calculated): 111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
I/O connectors
1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
Dimensions
Diameter: 286mm (11.3")
D: 205mm (8.1")
Net weight
4.4kg (9.7lbs)
Cutout size
247 mm (9-3/4")
Required ceiling board thickness
5 mm - 35 mm
Accessories
O-ring, Tile Rail, Cutout Template
Packaging
Packaged in pairs
Certificate
UL1480, UL2043, NFPA70, CE, EAC, RoHS
