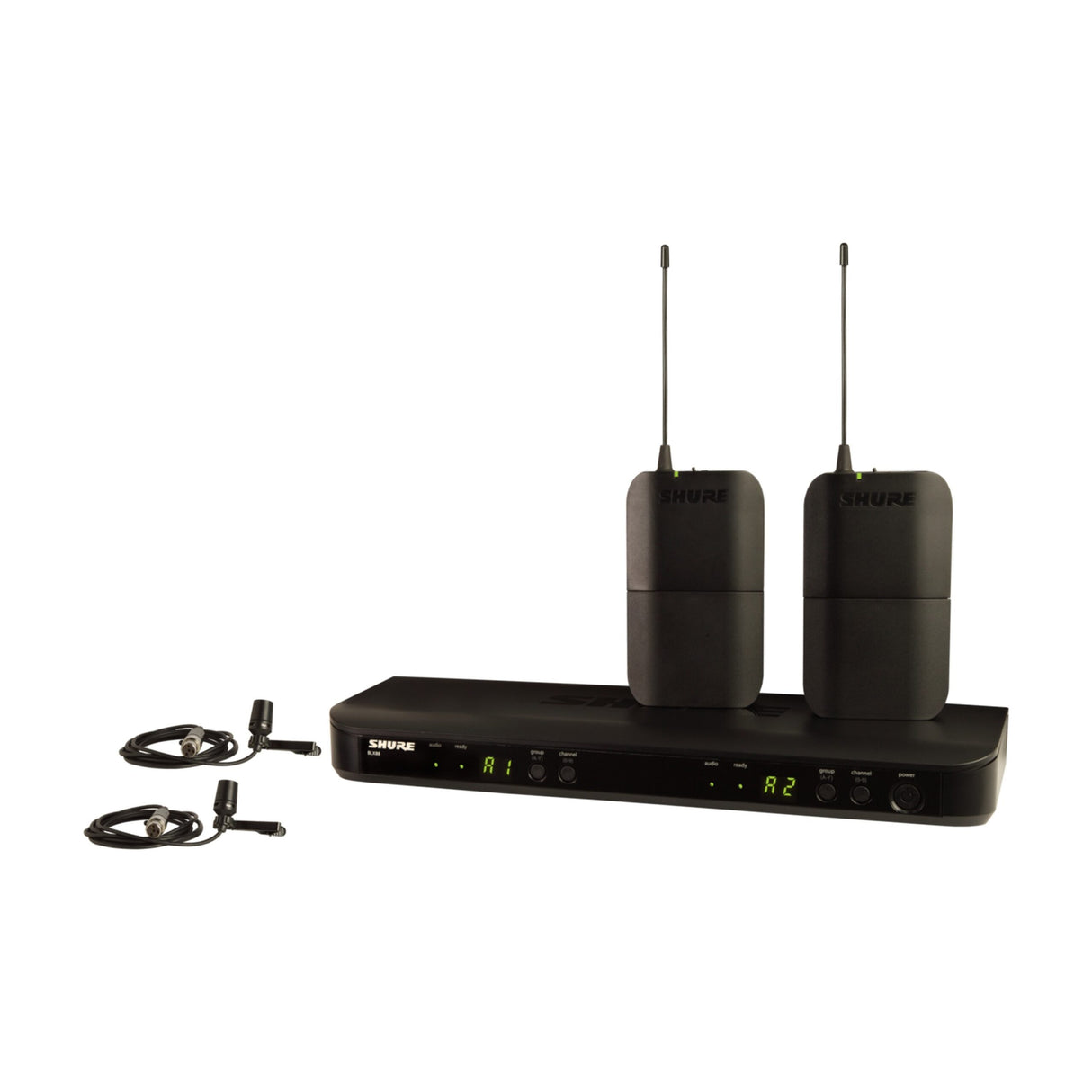

Shure BLX188/CVL Wireless Dual Presenter System

Shure BLX188/CVL Wireless Dual Presenter System

Shure BLX188/CVL Wireless Dual Presenter System: Professional Sound Quality for Two Presenters

Looking for a professional and hassle-free sound system for two presenters? The Shure BLX188/CVL Wireless Dual Presenter System is your go-to solution. This system provides top-quality sound, simple setup, and up to 14 hours of battery life – all right out of the box.

SUPERIOR AUDIO – Perform with Confidence:
Experience the freedom of a wireless system, without sacrificing sound quality. The Shure BLX188/CVL delivers professional-grade sound for every band and vocal performance, ensuring that you can perform with confidence.

RELIABLE SIGNAL – Extend your Range:
Don't let a weak signal ruin your performance. With a range of up to 300 feet (100m), you can take the show into the crowd without any interruptions.

EASY SETUP – Own the Stage:
With BLX188/CVL's one-touch scan and selection, you can set up in record time and own the stage.

BATTERY LIFE – 14 Hours of Power:
The BLX188/CVL provides up to 14 hours of power from a single pair of AA batteries, so your show can go on and on.

SYSTEMS EXPANSIONS – Run up to 12 Channels per Frequency Band:
With the capacity to run up to 12 channels per frequency band, you'll have plenty of room to grow.

VERSATILITY INCLUDED – You’ve got Options:
Choose from a variety of Shure microphones available in BLX systems to find the perfect fit for your performance.

Technical Specifications

BLX1
Audio Input Level
Max: -16 dBV maximum
Min (0 dB): +10 dBV maximum
Gain Adjustment Range
26 dB
Input Impedance
1 MΩ
RF Transmitter Output
10 mW, typical
varies by region
Dimensions
4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight
2.6 oz. (75 g), without batteries
Housing
Molded ABS
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Battery Life
up to 14 hours (alkaline)

BLX88
Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: -27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load)
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight
15.1 oz. (429 g)
Housing
Molded ABS
Power Requirements
12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

What's Included
BLX88 tabletop dual-channel receiver
2 CVL lavalier microphones with BLX1 bodypack transmitters
Lavalier clips
Power supply
2 sets of AA batteries
Windscreens
User guide
