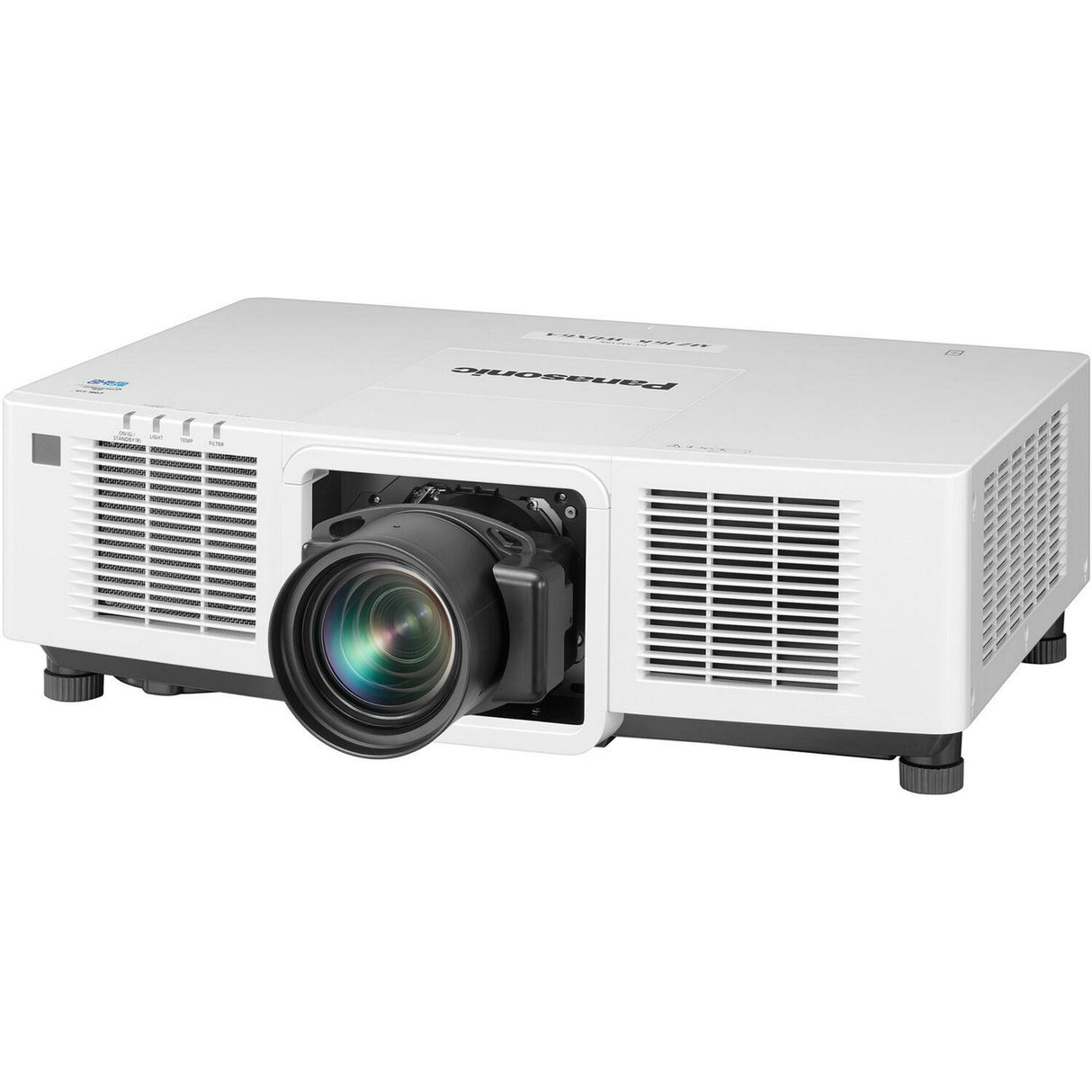

Panasonic PT-MZ10KLWU7 WUXGA 10,000 Lumen LCD Laser Projector, No Lens, White

Panasonic PT-MZ10KLWU7 WUXGA 10,000 Lumen LCD Laser Projector, No Lens, White

Designed to reduce the AV managers workload in businesses and universities.

Key Features

• Laser 3LCD, 10,000 lumens, WUXGA
• Silent (35dB in normal mode) and light construction (22kg) is ideal for lecture theatres and seminar rooms
• 20 000 hours maintenance-free operation due to the dustproof construction and long-lasting eco filter
• Triple drive engine ensures non-stop operation with a failover function. A secondary backup signal input and the monitoring function reduce the impact of potential technical faults.
• Flexible installation with a choice of seven optional zoom lenses. Easy setup with Geo Pro software and DIGITAL LINK function

Technical Specifications

Projector type
LCD projectors
Light source
Laser diodes
Light output*1
10,000 lm
Time until light output declines to 50 %*2
20,000 hours (NORMAL)
Resolution
1920 x 1200 pixels
Contrast Ratio*1
3,000,000:1 (Full On/Full Off) * With set to <3>
Center-to-corner zone ratio*1
85 %
LENS
Optional powered zoom lenses
Lens shift | Vertical (from center of screen)
±60 % (±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
Lens shift | Horizontal (from center of screen)
±20 % (±19 % with ET-EMW200) (powered)
Keystone correction range
Vertical: ±40 Degrees (±14 Degrees with ET-EMW200/ET-EMW300, ±22 Degrees with ET-EMW400/ET-EMW500), Horizontal: ±15 Degrees (±8 Degrees with ET-EMW200/ET-EMW300)
Keystone correction range with optional ET-UK20 Upgrade Kit
Vertical: ±40 Degrees (±14 Degrees with ET-EMW200/ET-EMW300, ±22 Degrees with ET-EMW400/ET-EMW500), Horizontal: ±40 Degrees (±8 Degrees with ET-EMW200/ET-EMW300, ±15 Degrees with ET-EMW400/ET-EMW500) When and are used simultaneously, correction cannot be made exceeding a total of 55 Degrees .
Installation
Ceiling/floor, front/rear, free 360-degree installation
Terminals | SDI IN
BNC x 1: 3G/HD-SDI input
Terminals | HDMI IN
HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*3)
Terminals | DVI-D IN
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
Terminal | RGB In
D-sub-HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | SERIAL/MULTI PROJECTOR SYNC IN
D-sub-9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | SERIAL/MULTI PROJECTOR SYNC OUT
D-sub-9-pin (male) x 1 for link control (RS-232C compliant)
Terminals | REMOTE 1 IN
D-sub-9-pin (female) × 1 for external control (parallel)
Terminals | REMOTE 2 IN
M3 x 1 for wired remote control
Terminals | Remote 2 Out
M3 x 1 for link control (for wired remote control)
Terminals | LAN
RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink , Art-Net)
Terminals | DIGITAL LINK
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink , Art-Net,
HDCP 2.2, Deep Color, 4K/60p signal input*3)
Terminals | DC OUT
USB Connector (Type A) x 1 (Output 5 V/2 A)
Power supply
AC 100-240 V, 50/60 Hz
Power consumption
640 W
Cabinet materials
Molded plastic
Filter
Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise*1
35 dB (NORMAL) / 30 dB (Quiet)
Dimensions (W x H x D)
650 x 211*4 x 440 mm (25 19/32” x 8 5/16” *4 x 17 21/64”) (Without lens)
Weight*5
Approx. 22.3 kg (49.2 lbs)
Operating environment
Operating temperature
0-45 Degrees C (32-113 Degrees F) *6; Operating humidity: 10-80 % (no condensation)
Applicable software
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android
Note
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast <2>, under conditions with 35 Degrees C (95 Degrees F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3­of particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *3 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®. *4 With legs at shortest position. *5 Average value. May differ depending on the actual unit. *6 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 Degrees C (95 Degrees F) or higher, the light output may be reduced to protect the projector.
Screen size
2.03-12.7 m (80-500 in), 16:10 aspect ratio
Light output
10,000 lm
LCD panel | Panel size
25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
LCD Panel | Number of pixels
2,304,000 (Pixels 1920 x 1200) pixels x 3
