ADJ VS3 IP 3.84mm Outdoor Rated LED Wall Panel
Description
Description
American DJ VS3 IP 3.84mm Outdoor Rated LED Wall
Panel

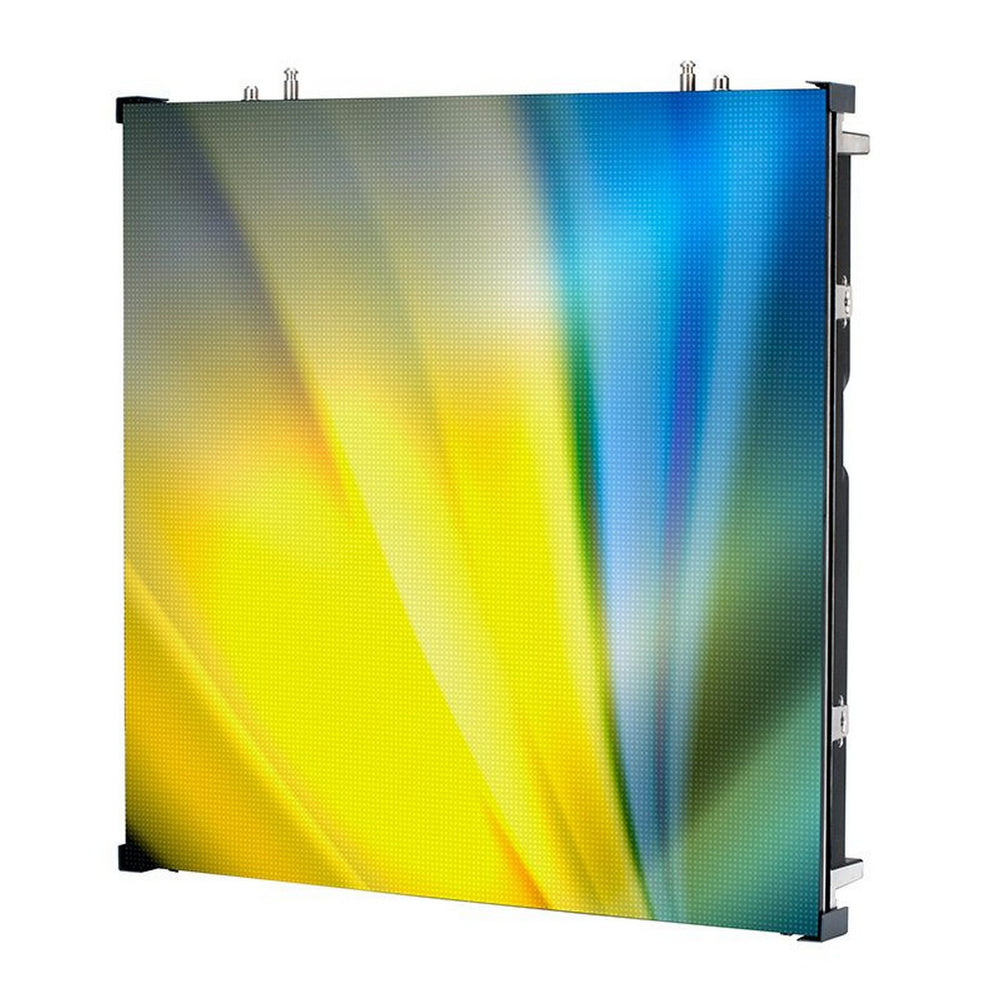

The VS3IP is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.84mm with a configuration of a 3-in-1 RGB SMD1921 LEDs. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. The brightness is 4500 NITS. The panel also features MOM (Memory On Module) technology and produces a high refresh rate of 3,840Hz. The VS3IP includes IP65 locking power in/out connections and locking RJ45 ethernet in/out connections. This panel also features a built-in Novastar A5S receiving card. The VS3IP has four individual mini modules and is rear serviceable. The VS3IPFC8 flight case holds 8 VS3IP panels. The VS3IPRB1 single panel, multi-purpose rigging bar may be used to vertically hang up to 20 VS3IP panels or vertically ground stack up to 8 panels. The panel is ETL approved. The VS3IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
Key Features
- IP65 Front / IP54 Back (Temporary outdoor use)
- Corner Protectors to protect the corners of the VS3IP during transport, set-up and teardown
- IP65 rated rubber capped protective connections
- 4 easy to replace video modules on each panel
- Rear carry handles
- Curve panels in convex or concave -6, -3 degrees or 0, +3, +6 degrees
- Quick lock system to connect panels together

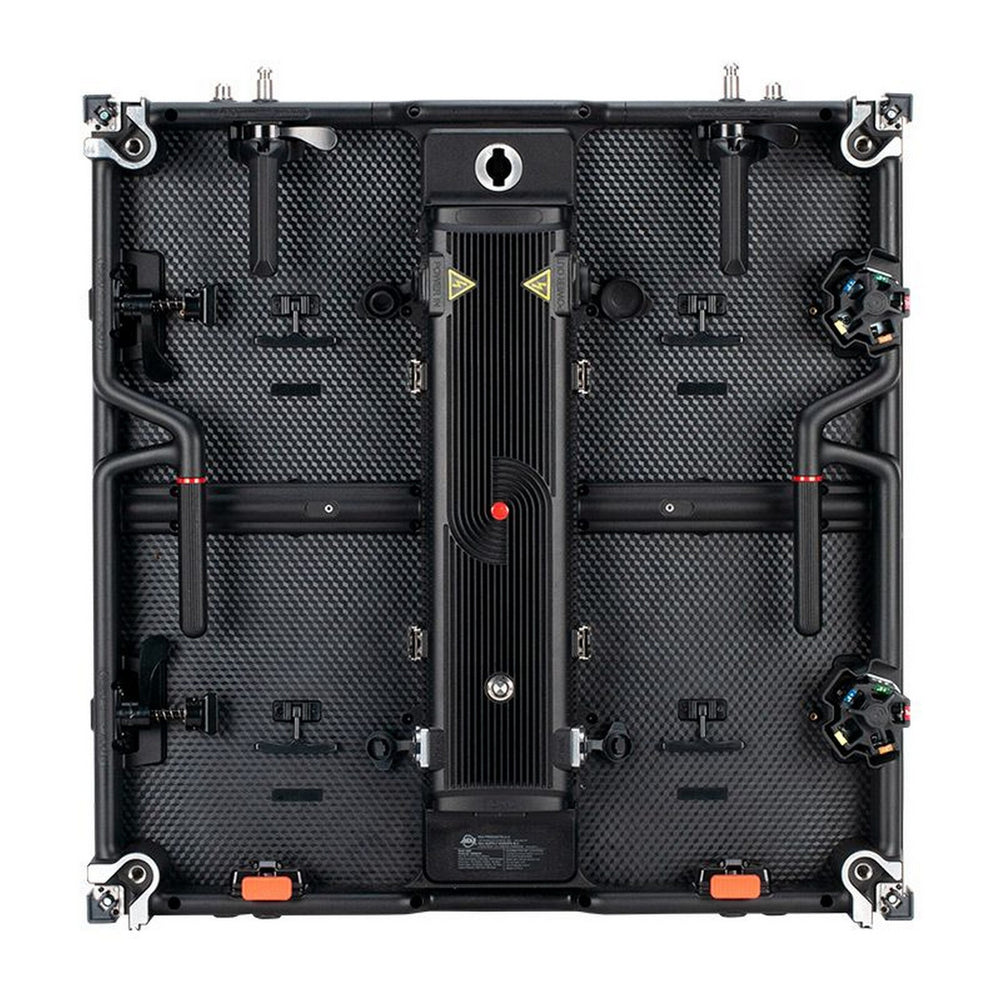

- Quick release power supply / receiving card module
- Novastar A5S receiving card
Technical Specifications
Pixel Pitch
3.84mm (0.15”)
LED Configuration
3-in-1 SMD1921 LED
Pixel Density
150x150 per panel; 67816 per square meter
Size
22.7” x 22.7” x 3.00” / 576mm x 576mm x 75mm
Module Quantity
4
Weight
19.84 lbs. / 9kg.
MECHANICAL RATINGS
Surface Flatness
Gaps<0.5mm
OPTICAL RATINGS
Brightness
4500 NITS
View Angle
Horizontal 160/Vertical 140 @ 9.75 ft. (3m)
Gray Scale
14-bit
Display Color
256
Brightness Adjustment
0~100% 100 Levels
Contrast ratio
5000:1
Processing
14-bit
POWER SUPPLY
Operation Power
100~240V 50-60Hz
Max. Power Consumption
210W/per panel
Ave. Power Consumption
84W/per panel
IP65 Rated Connections Power/Data
Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM
Control Mode
Nova Star Synchronous System with Control via DVI
Frame Update Frequency
50-75Hz
Scan Mode
1/15
Refresh Rate
3840Hz
Support Input
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance
Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode
1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction
Pixel, Module, Cabinet
ENVIRONMENTAL
Operating Temp / Humidity
Fahrenheit: -4 + 104 / Celsius: -20 + 40/ 10-90% (No Condensation)
Operating Life / MTBF
50,000 Hours / 5,000 Hours
Protection Level
IP65 Front / IP54 Back
Out of Control Rate
<0.02%
