ADJ MDF2PSUX156 3000W External Power Supply for 156 MDF2 Panels

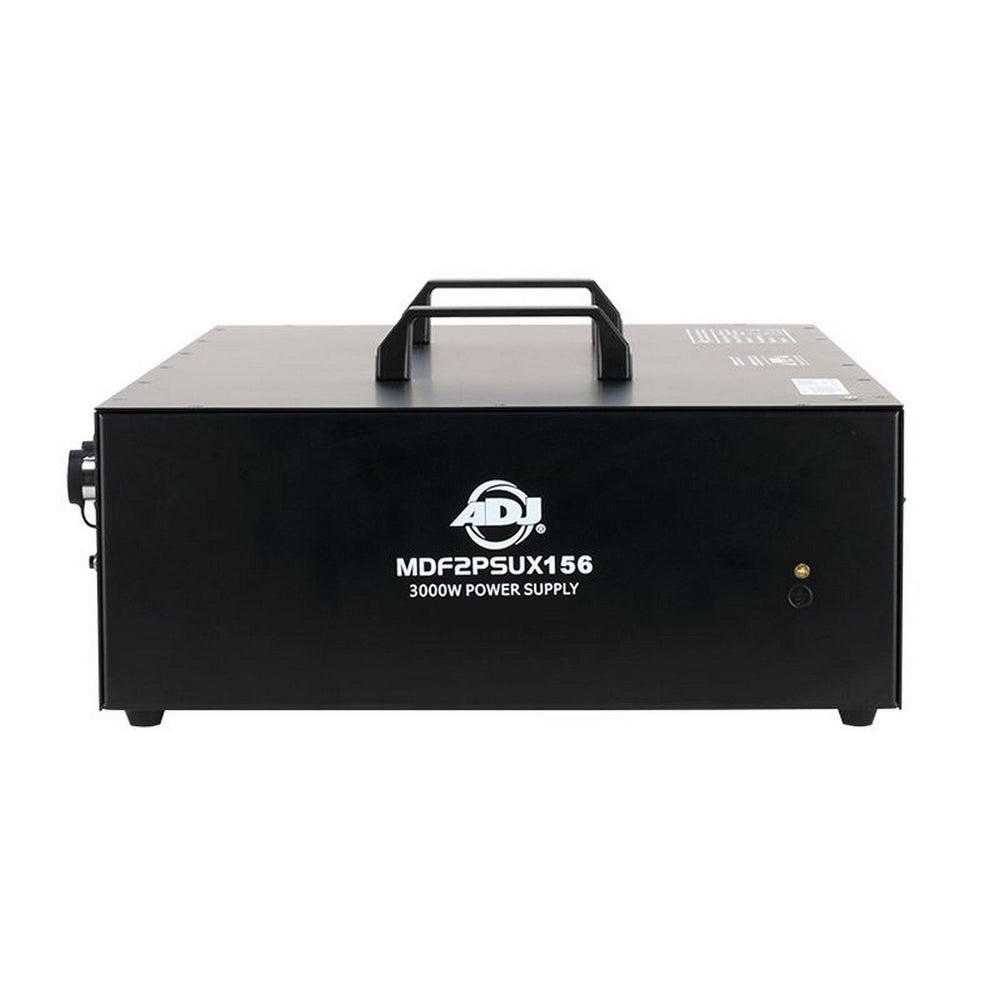

The ADJ MDF2PSUX156 is a 3000W external power supply for up to 156 ADJ MDF2 dance floor panels. It has two power locking inputs and two power breakers that each control 6 outputs. There are 12 power outputs with rubber protectors and 12 resettable breakers.

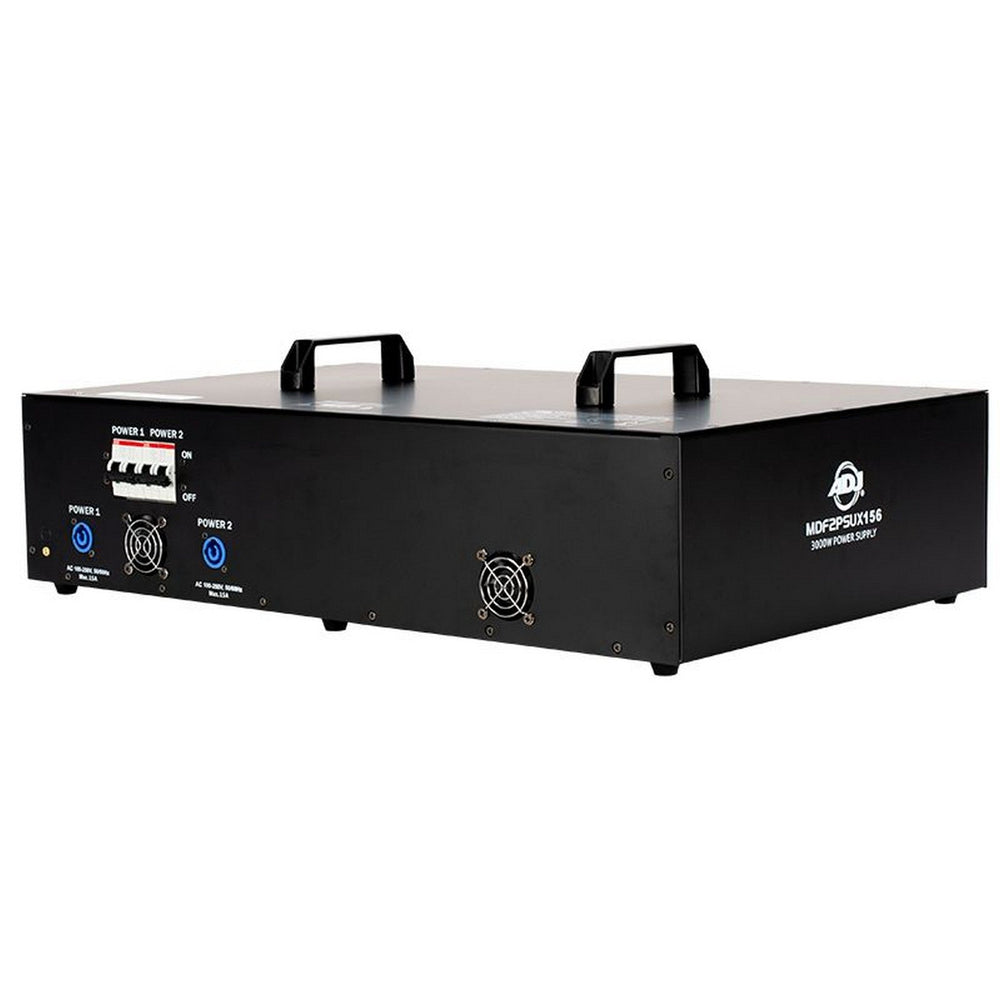

There are two carrying hands on the top of the power supply, with rubber feet on the bottom. The MDF2PSUX156 has two fans to keep the unit cool.
There are two locking input power cables and twelve 2-pin power output cables included in the box.
Key Features
- 3000W External power supply for up to 156 ADJ MDF2 dance floor panels

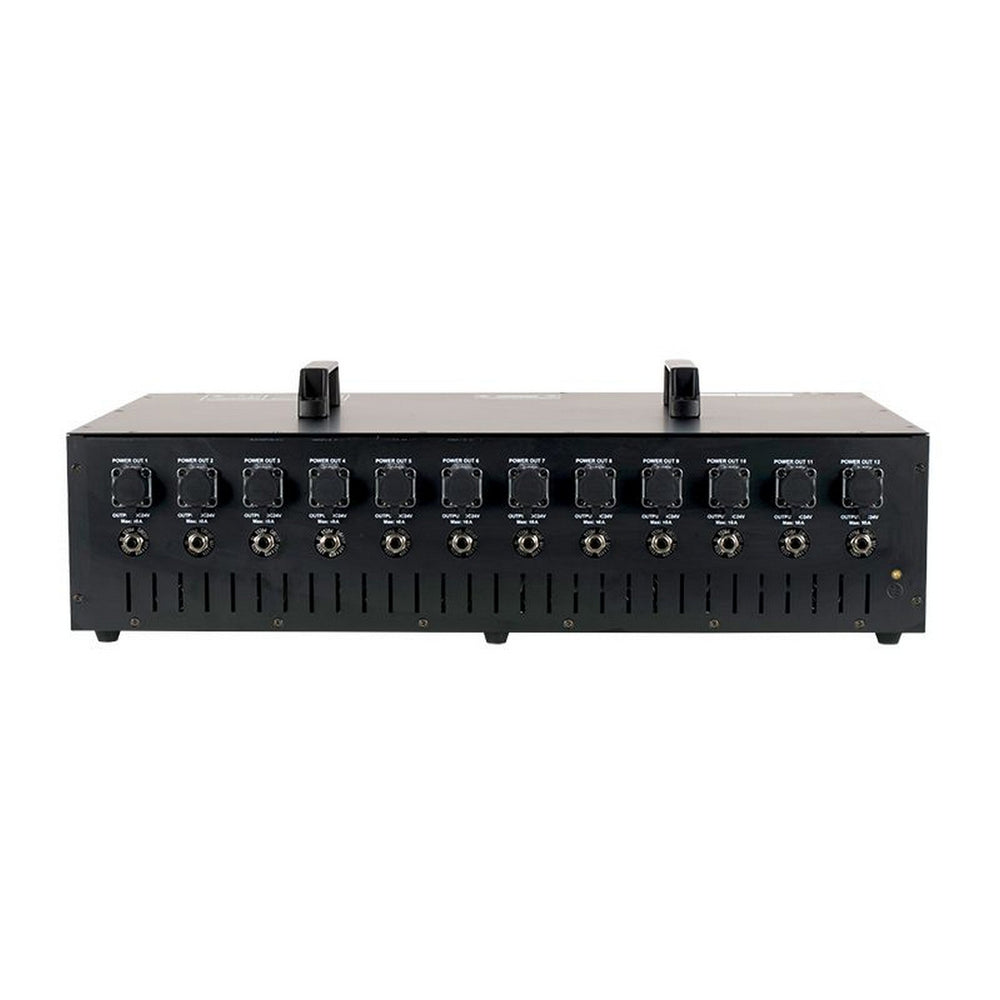

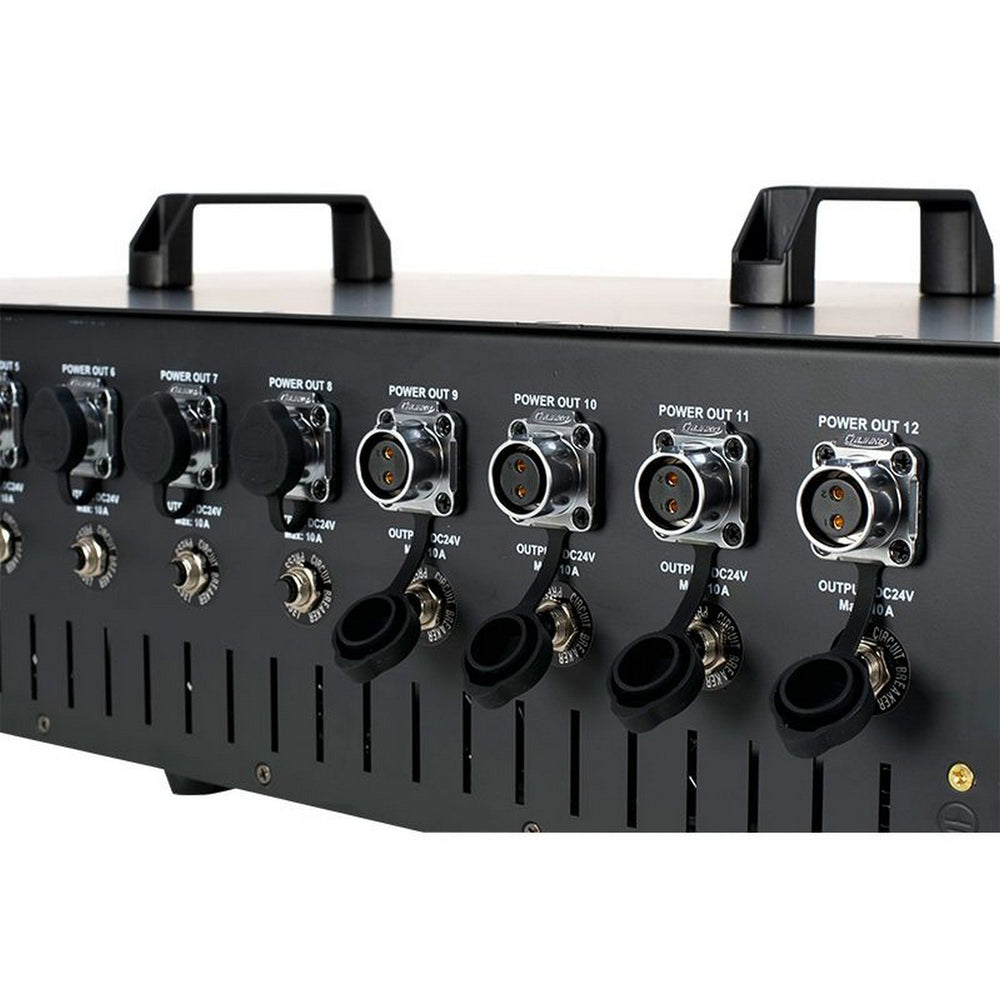

- Twelve (12) 2-pin power output connectors that will power a single row up to 13 MDF2 panels
- Twelve (12) resettable breakers

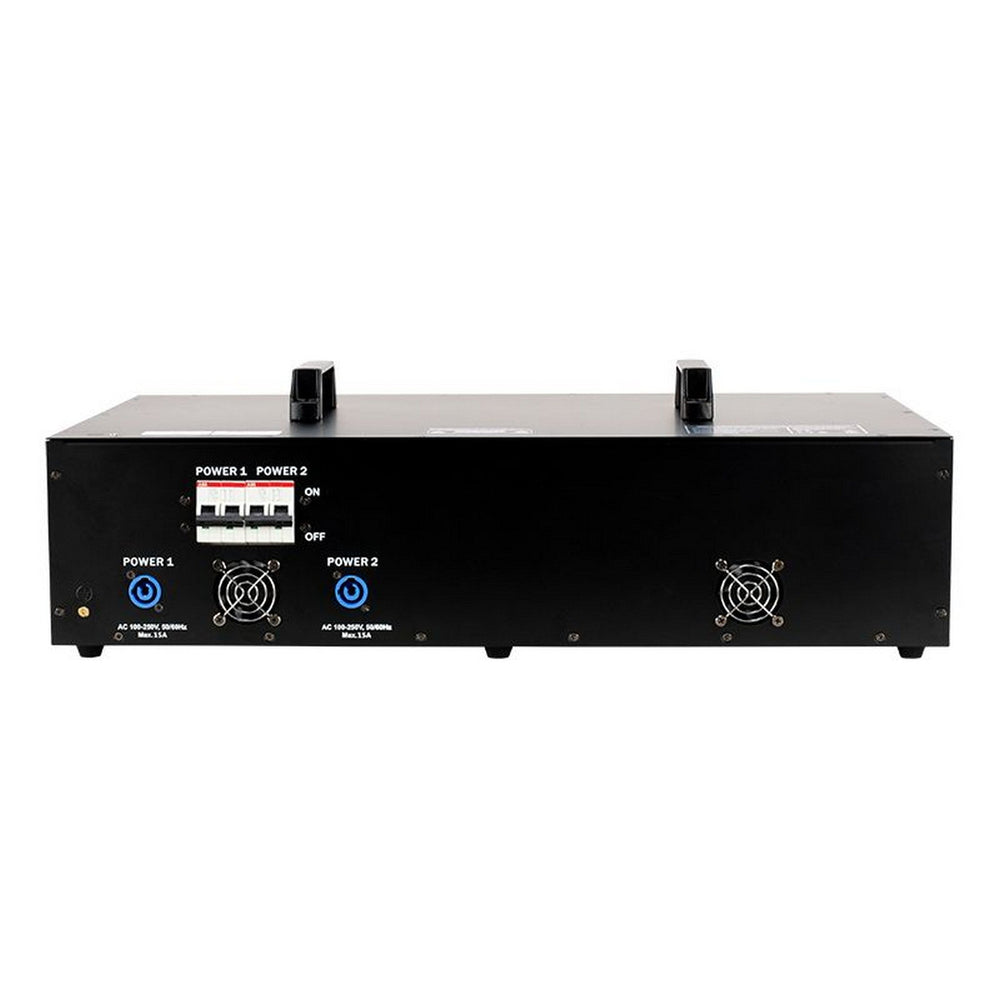

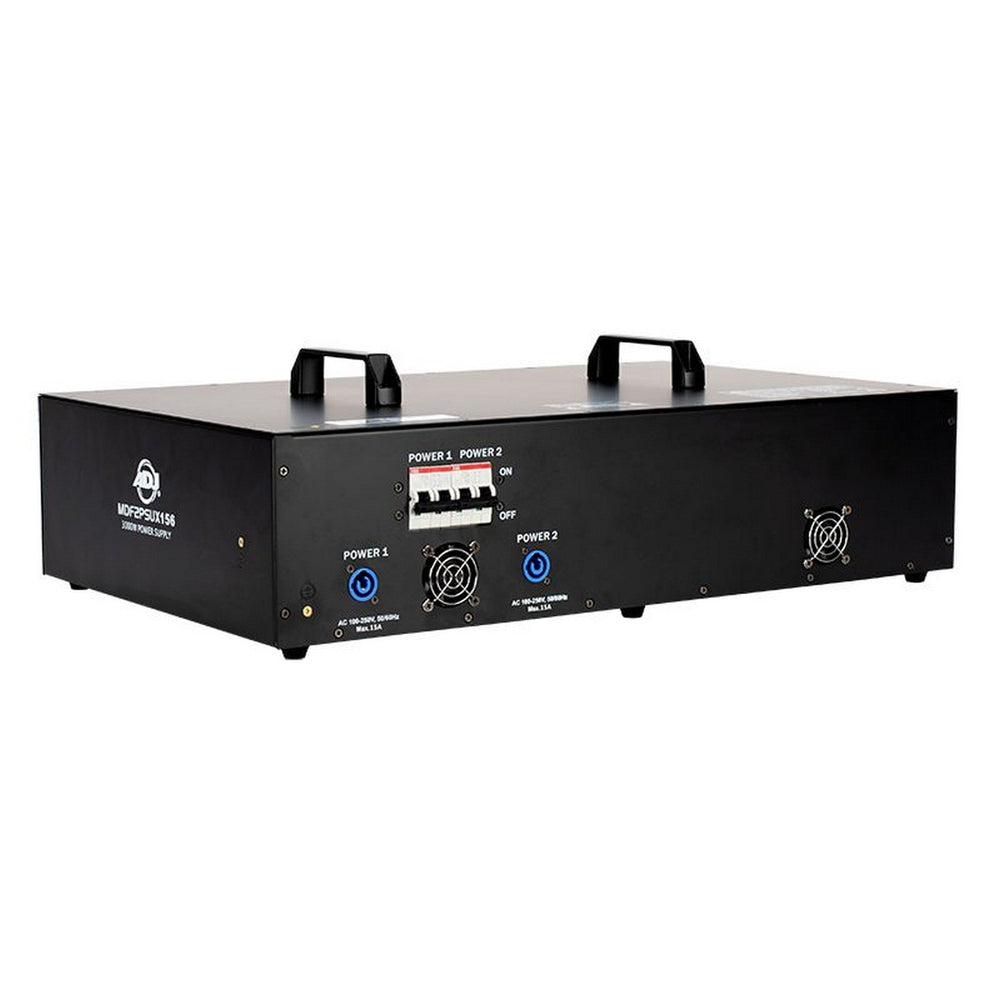

- Two (2) separate power switches: #1 controls outlets 1-6; #2 controls outlets 7-12
- Two (2) locking power inputs
- Two (2) carrying handle
- Rubber feet on bottom of power supply
Technical Specifications
WHAT’S INCLUDED

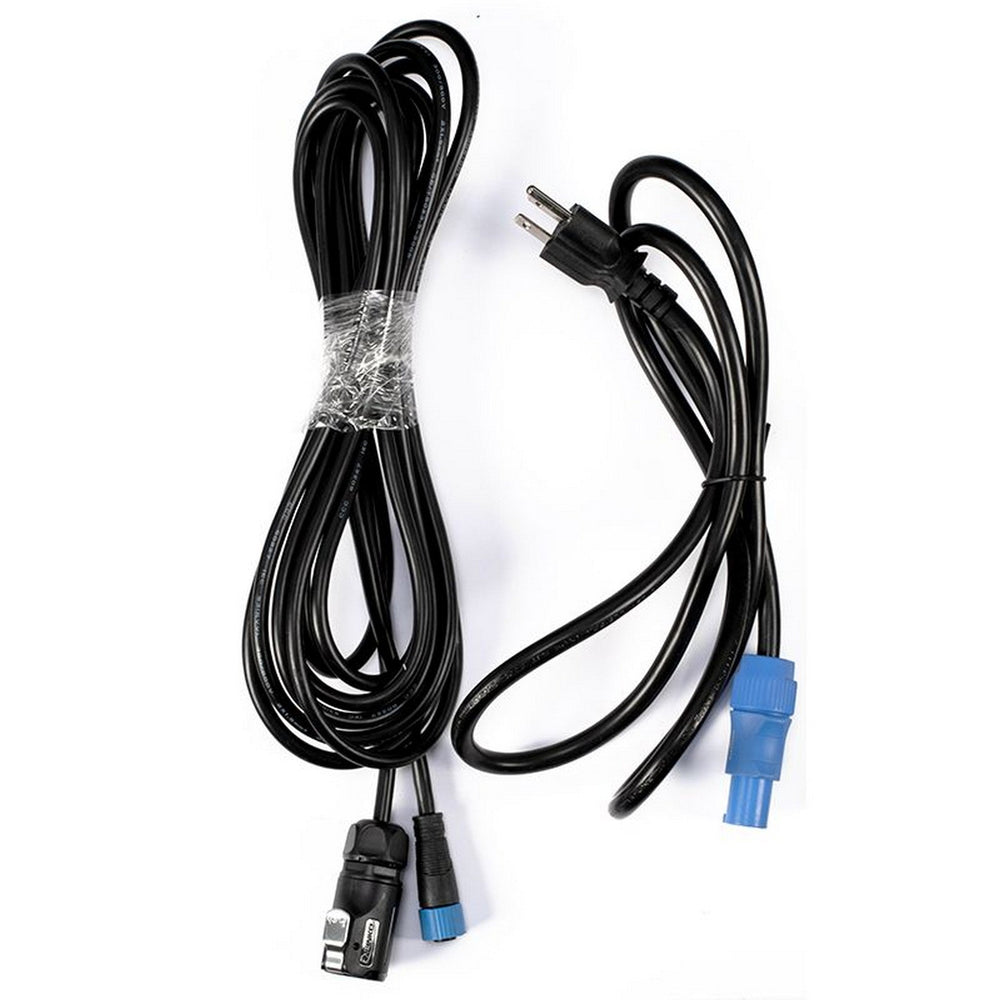

Includes two (2) 3-foot locking power cables

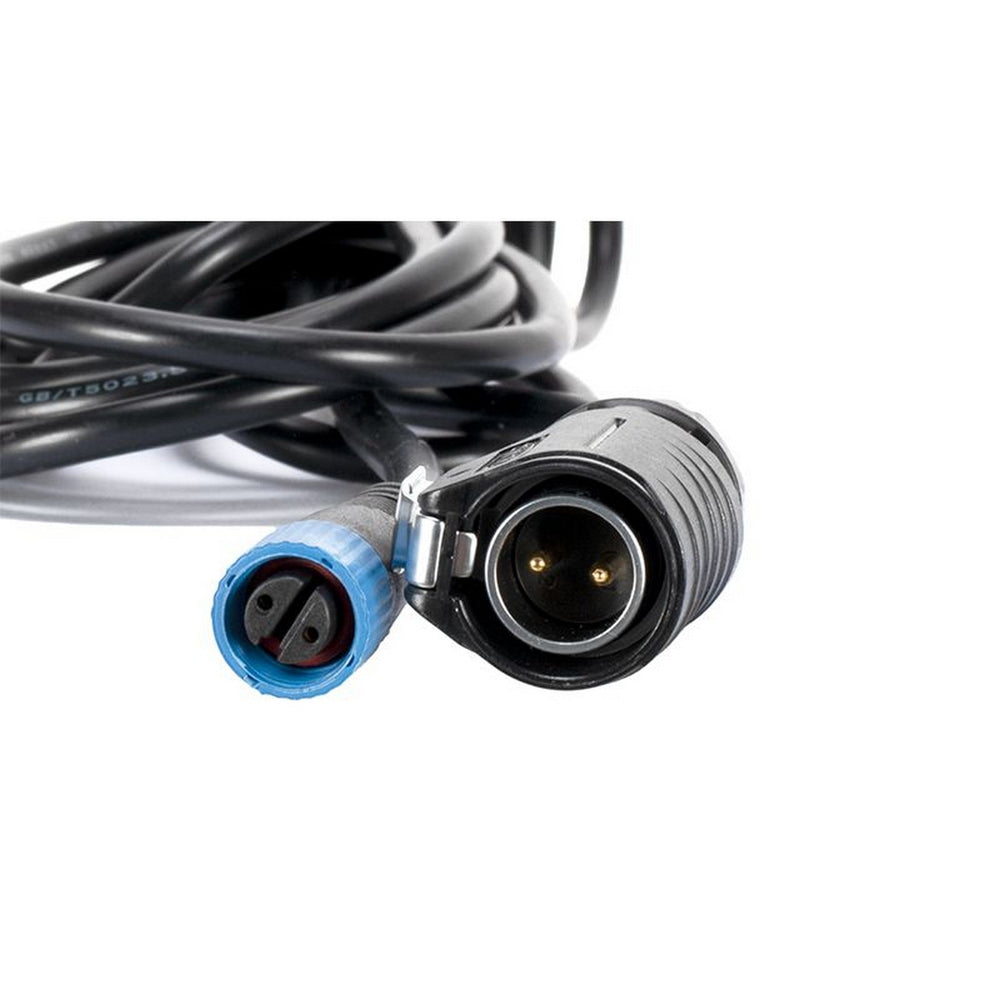

Includes twelve (12) 15-foot 2-pin power output cables to connect to MDF2 panels
ELECTRICAL
Input Voltage
AC 100-240V, 50/60 Hz
Output Voltage
DC 24V
Maximum Load Power
3000 W
Load Current
120 A
Current Overload Protector Trip Time
Within 10A of max load: no trip; 10-15A over max load: trip within 1 hour; 15-20A over max load: trips in 5.2 to 30 second; 20-30A over max load: trips in 1.5 to 5.5 seconds
Fan cooled
DIMENSIONS / WEIGHT
Dimensions (LxWxH)
25.6” x 17.0” x 8.1” (650.0mm x 433.0mm x 205.5mm)
Weight
37.9 lbs. (17.2 kg)
AMBIENT OPERATING CONDITIONS
Ambient Operating Temperature
-4ËšF to 158ËšF (-20ËšC to 70ËšC)
IP Rating
IP20
