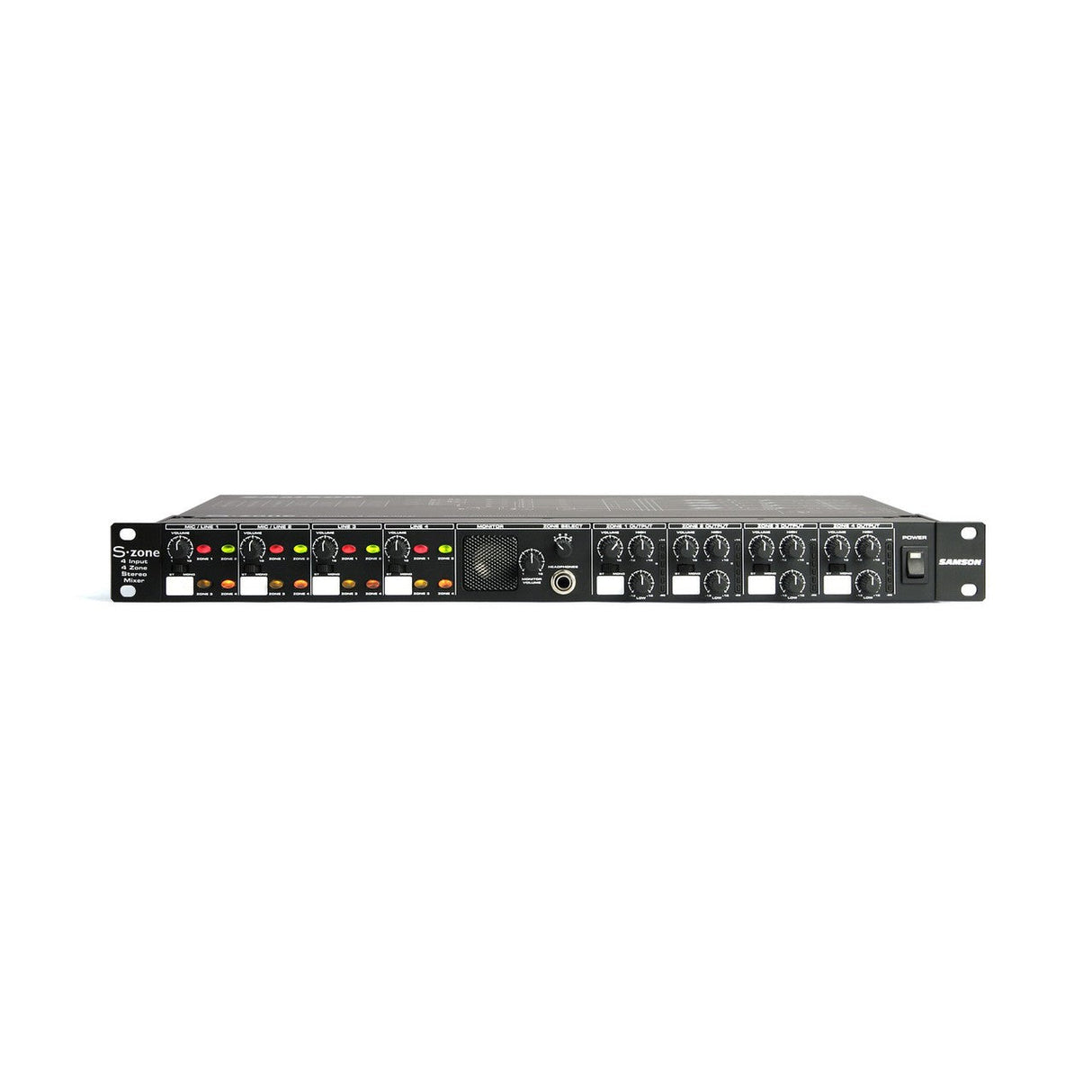

Samson S-zone 4 Input 4 Zone Stereo Mixer
The S-zone gives system installers all the features they need to control up to four zones of audio with a compact, single rack space unit. It features two balanced mic and four stereo aux/line inputs with a unique front panel control section that allows you to assign any of the four inputs to any of the four zones with just the push of a button. The front panel layout also has input and output volume controls, independent 2-band equalization, and an on board speaker for selectable zone monitoring.
Key Features
- 4-channel/4-zone stereo mixer
- Two Mic/Stereo Line inputs with ducking
- Two Stereo CD/Line inputs
- Onboard Speaker and Headphone monitoring
- Euroblock output connectors
- Remote Volume Control
Technical Specifications
Input Impedance
Mic: 600 ohm XLR balanced
Line: 22K ohm
Max Input Level
Mic: -11.7 dBu balanced
Line: +26 dBu
Maximum Gain
Mic: 60 dB
Line: 26 dB
Output Level
+21 dBu max.
Output Impedance
Balanced: 200 Ohms
Unbalanced: 100 Ohms
Max. S/N Ratio
96 dB
THD
<0.02%
CMRR
>52 dB (Mic)
Phantom Power
+15 VDC
Tone Controls
LOW: +/- 15 dB at 100 Hz
HIGH: +/- 15 dB at 10 kHz
Connectors
Inputs: 6 PIN Euroblock
Outputs: 9 PIN Euroblock
Power Supply
Mains Voltages/selectable: ~120 V AC, 60 Hz
Fuse: 100-120 V AC; 315 mA (slow-blow)
Power Consumption
5 Watts
Power Inlet
Standard IEC receptacle with fuse
Dimensions (W x D x H)
19” x 9.25 x 1.75
482mm x 255 x 44
Weight
5.1 lb. (2.31 kg)
