MuxLab 3G-SDI Extender Kit 500700 | 3G SDI Video Extender Kit Cat5e/6 RJ45 Plug Cable Signal Detect Transmitter and Receiver

MuxLab 3G-SDI Extender Kit 500700 3G SDI Video Extender Kit Cat5e/6 RJ45 Plug Cable Signal Detect Transmitter and Receiver

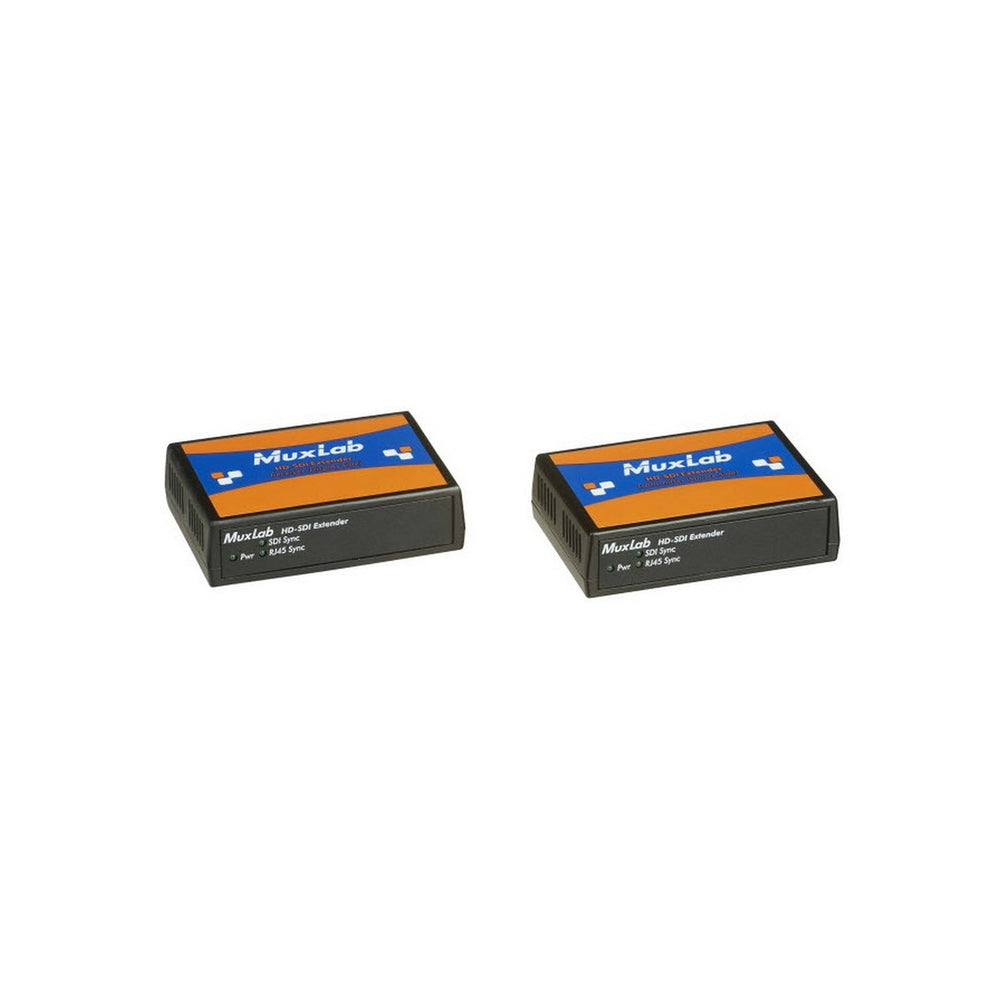

The MuxLab 500700 - 3G-SDI Extender Kit allows 3G-SDI signals to be transmitted up to 330ft / 100m via single Cat5e/6 cable in a point-to-point configuration. The 3G-SDI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including up to 32 channels of embedded Audio and/or embedded Time Code) within television facilities and between professional video equipment.

Key Features

• Supports SDI-SMPTE 259M-C (270Mbps), HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps), HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
• Up to 330ft / 100m via single Cat5e/6 at all resolutions
• Supports up to 32 channels of embedded Audio and/or embedded Time Code
• LED diagnostics; sync, signal detect
• Cast aluminum enclosure
• 2 year warranty

Technical Specifications

Environment:
SDI single link: SD, HD & 3G
Devices:
Monitors or any equipment supporting SDI single link
Standard supported:
SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M
Bit rates:
270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection)
Format tested:
SD: 525i, 59.94 Hz & 625i, 50 Hz
HD: 1035i, 60 Hz & 1080i, 50 Hz & 1080p, 30 Hz & 1080i, 60 Hz &
1080p, 25 Hz & 1080i, 50 Hz & 1080p, 24 Hz & 720p, 60 Hz
3G: 1080p, 4:2:2, 10b, 60Hz & 1080p, 4:2:2, 10b, 50Hz &
720p, 4:4:4:4, 10b, 60Hz & 720p, 4:4:4:4, 10b, 50Hz &
1080p, 4:4:4:4, 10b, 30Hz & 720p, 4:4:4:4, 10b, 30Hz &
1080p, 4:4:4:4, 10b, 25Hz & 720p, 4:4:4:4, 10b, 25Hz &
1080p, 4:4:4:4, 10b, 24Hz & 720p, 4:4:4:4, 10b, 24Hz &
1080i, 4:4:4:4, 10b, 30Hz & 1080i, 4:4:4:4, 10b, 25Hz &
1080p, 4:4:4, 12b, 30Hz & 1080p, 4:4:4, 12b, 25Hz &
1080p, 4:4:4, 12b, 24Hz & 1080i, 4:4:4, 12b, 30Hz &
1080i, 4:4:4, 12b, 25Hz & 1080p, 4:2:2, 12b, 30Hz &
1080p, 4:2:2, 12b, 25Hz & 1080i, 4:2:2, 12b, 30Hz &
1080i, 4:2:2, 12b, 25Hz
Only LEVEL A MAPPING is supported
Indicators:
Power SDI Sync RJ45 Link
Connectors:
One BNC 75 ohm female.
One RJ45S for Cat5e/6 unshielded twisted pair. One
power connector, 2mm
Maximum Distance:
UTP Cat 5e: 330 ft (100 m) UTP Cat 6: 400 ft (122 m) for 500700
Maximum distance applies for all format and speed between boxes. On the
SDI side, the use of an equalizer at input and a clock regenerator at output
allow to reach the maximum distance on coax
RJ45 Pin Configuration:
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cables (Not Included):
One straight Cat 5e/6 twisted pair cables required.
Two 75 ohm coaxial cables with 75 ohm BNC required
Power Supply (Included):
Two 100-240V/5-12VDC 15W power supplies with interchangeable blades
for NA, Europe and UK
Power Consumption:
Transmitter: 4 Watts
Receiver: 8 Watts
Temperature:
Operating: 0° to 40°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing
Enclosure:
6061 Aluminum alloy
Dimensions:
4.50 x 3.00 x 1.25 (11.4 x 7.6 x 3.2 cm)
Weight:
2.5 lb. (1.1 kg)
Compliance:
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty:
2 years
