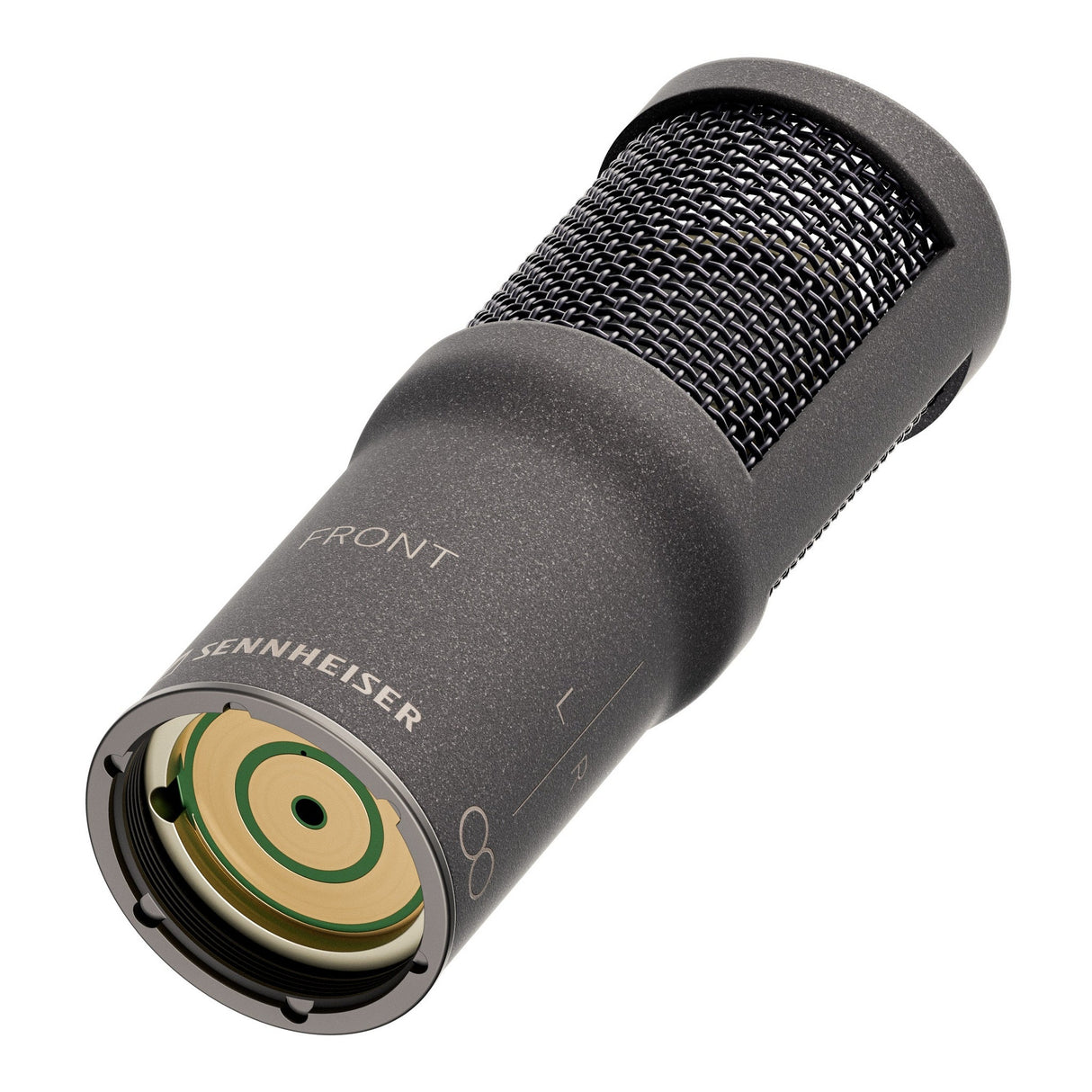

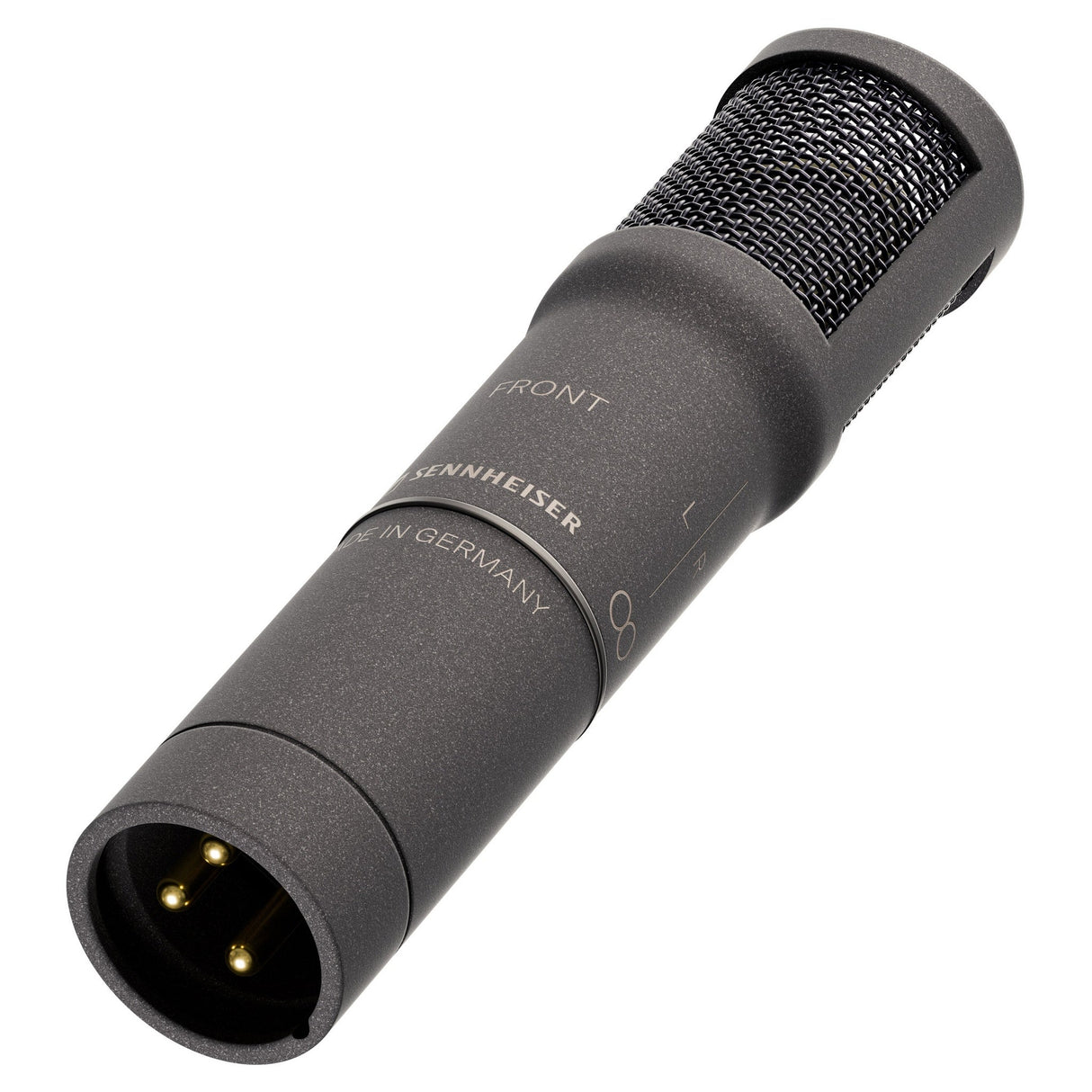

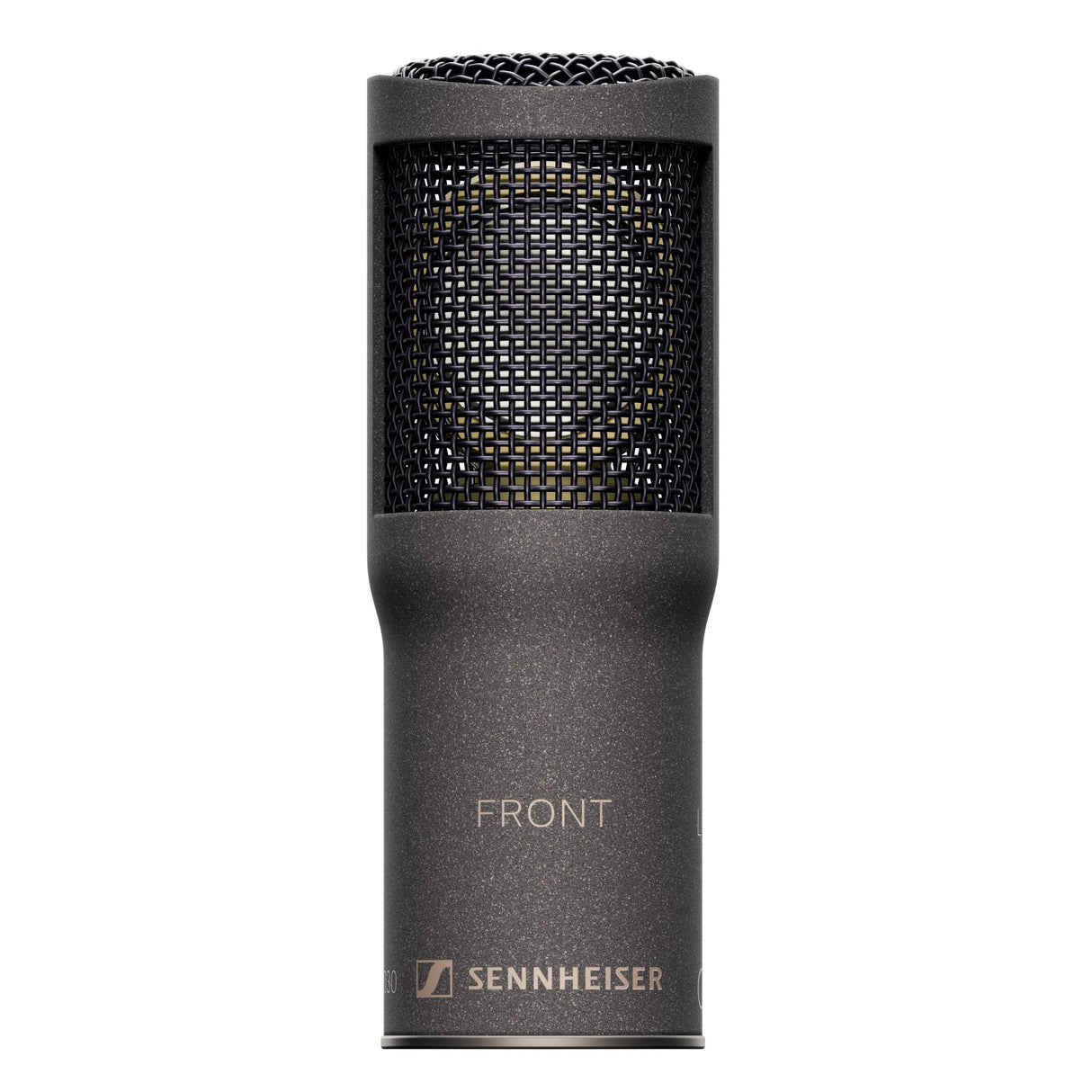

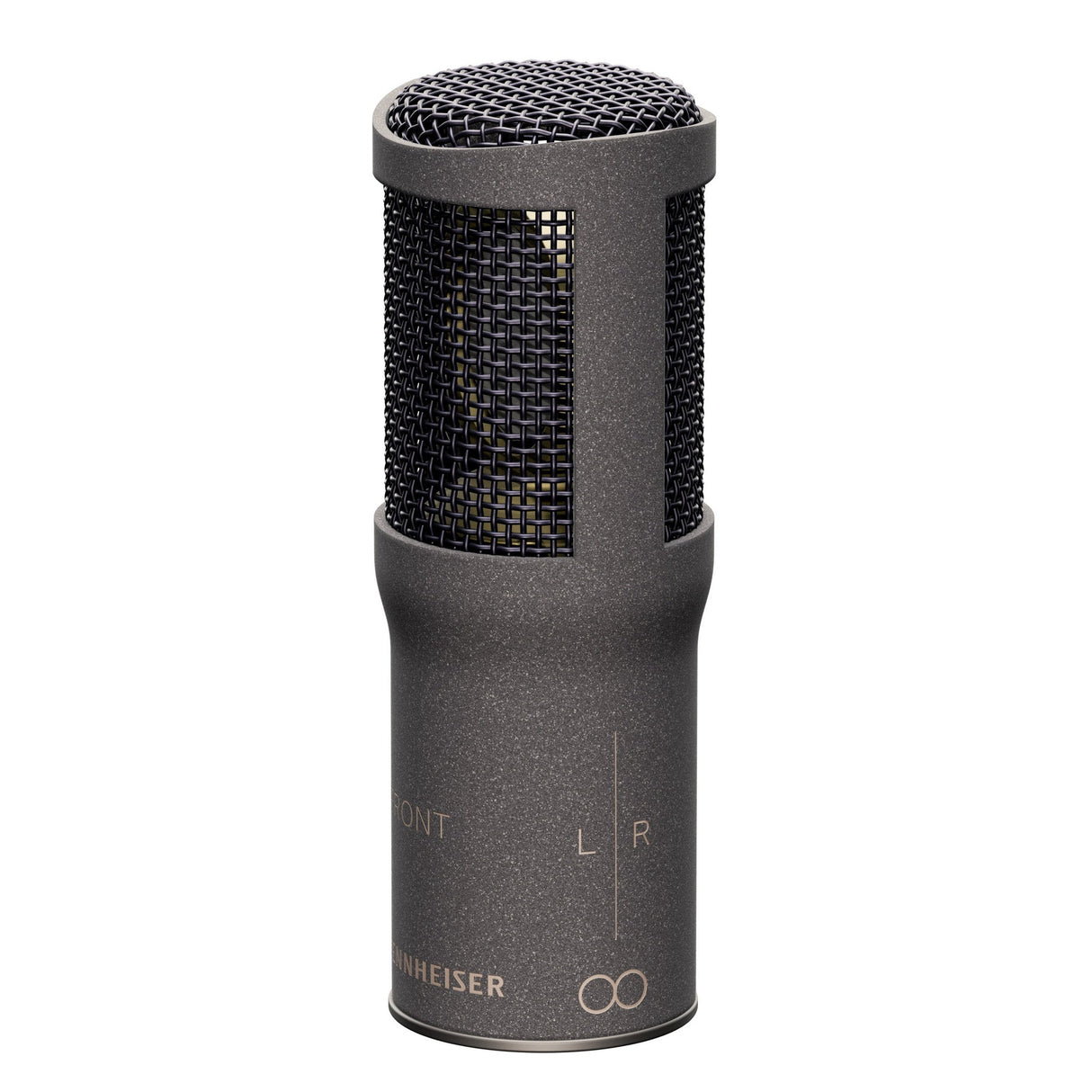

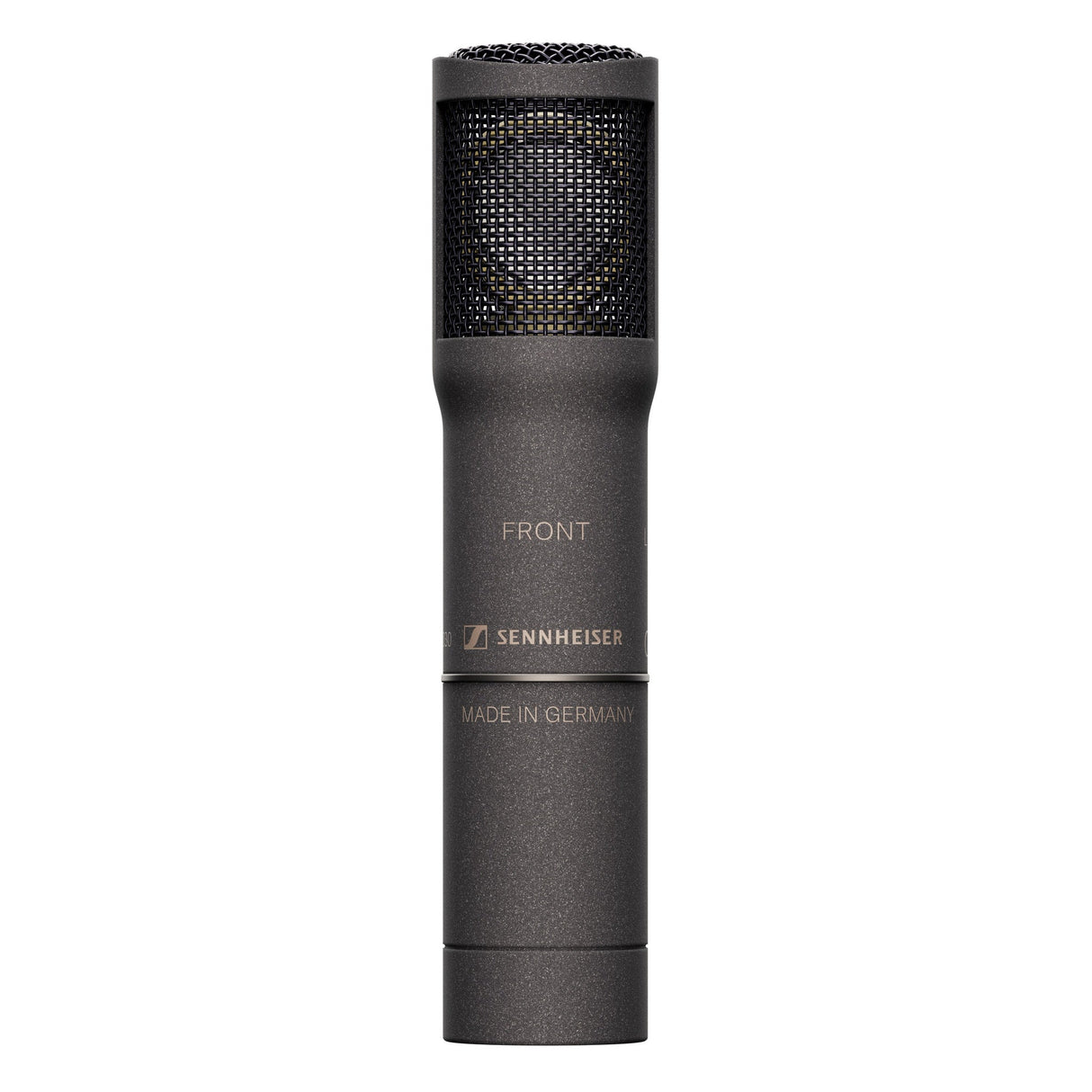

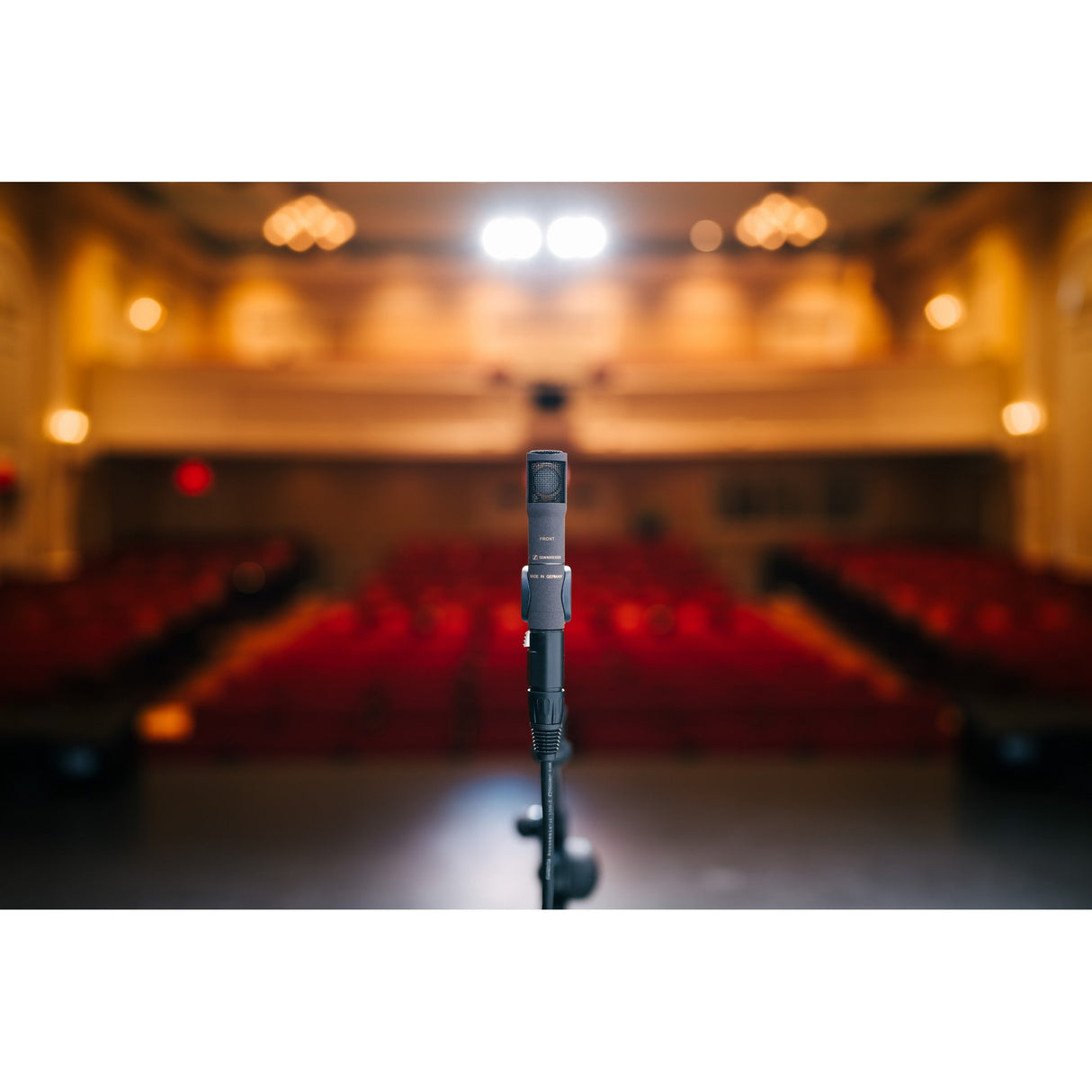

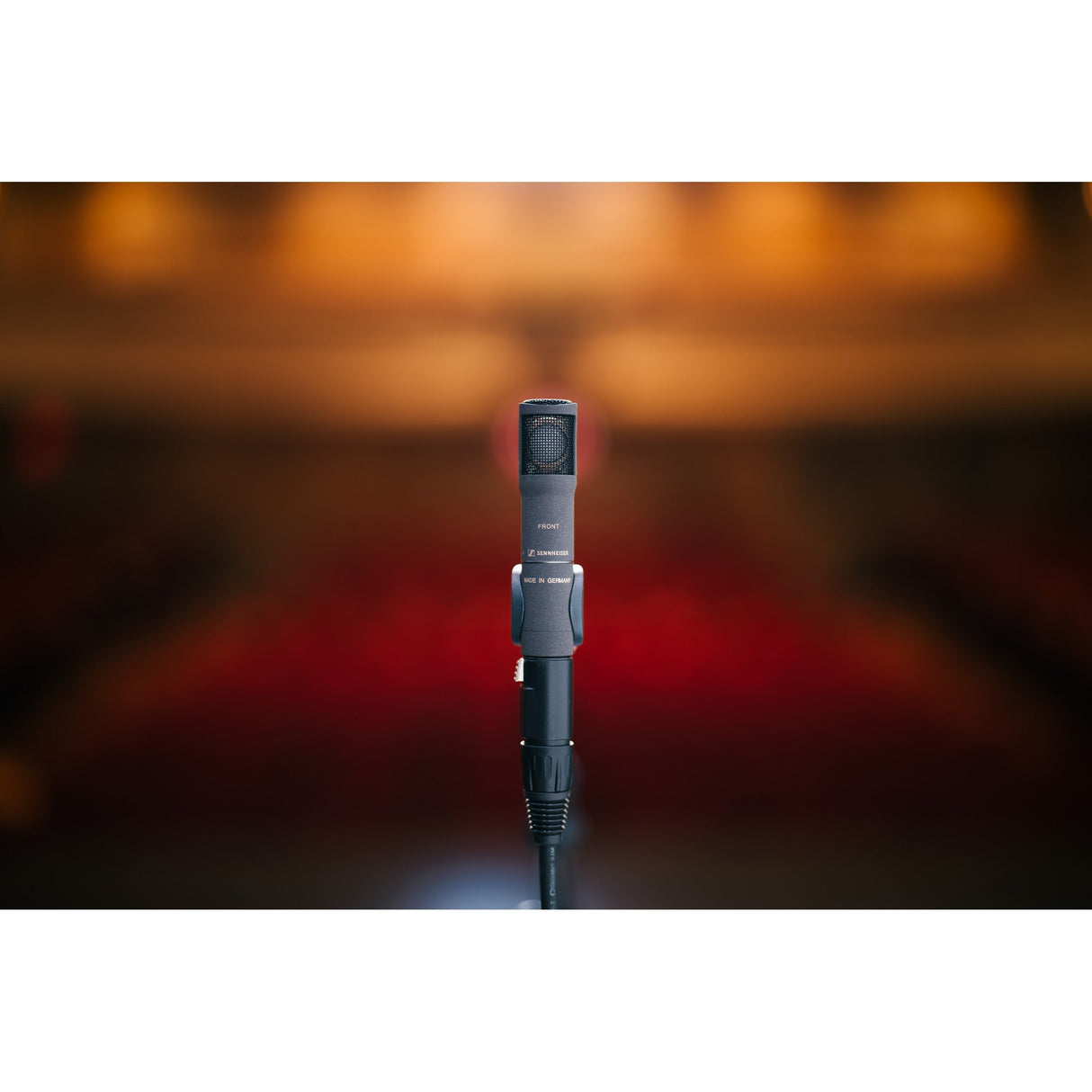

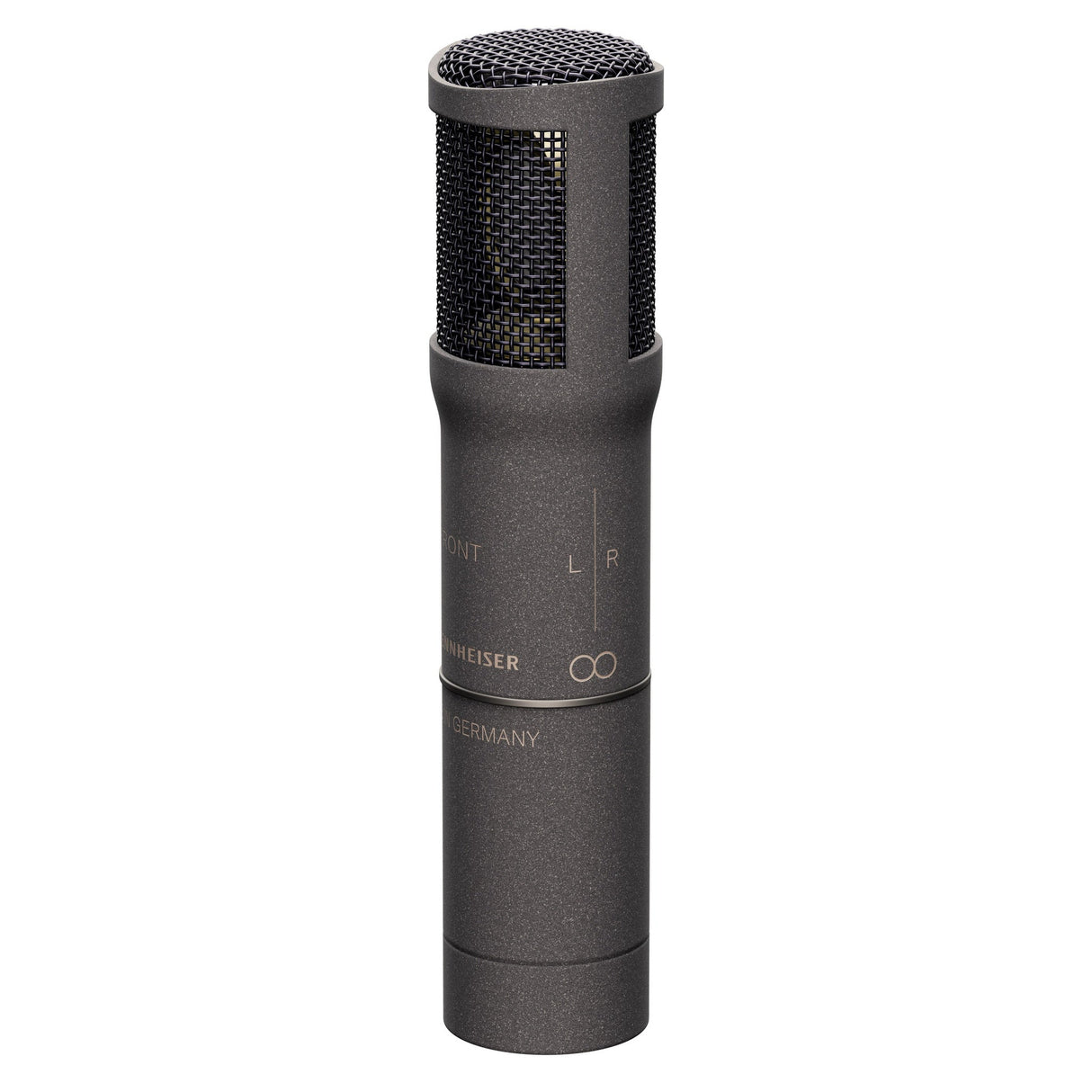

Sennheiser MKH 8030 Figure-8 Shotgun Microphone

The Sennheiser MKH 8030 Figure-8 Shotgun Microphone is favored by recording professionals for its ability to capture high-quality sound over a wide frequency range in various settings. It excels in M-S, double M-S, and Blumlein stereo recording configurations, as well as situations where isolating sound sources is crucial. Similar to other Sennheiser MKH 8000 series microphones, the MKH 8030 features a symmetrical, acoustically open push-pull transducer. This design maintains a natural sound with minimal distortion, ensuring precise polar patterns and minimal off-axis coloration. With a low-tension diaphragm, it offers exceptional sensitivity and a broad frequency response for authentic sound reproduction. Part of the comprehensive MKH 8000 series, the MKH 8030 leverages the dual-capsule technology found in Sennheiser's MKH 800 Twin microphone, catering to the diverse needs of audio professionals. The series includes models like the MKH 8020 omni-directional, MKH 8090 wide cardioid, MKH 8040 cardioid, MKH 8050 super-cardioid, MKH 8060 super-cardioid/lobar, and the MKH 8070 lobar. Designed for durability, each MKH 8000 microphone features a sturdy metal housing, ensuring resilience in challenging conditions. Whether used in sports broadcasting or outdoor recording, these microphones provide reliability in demanding environments. Their resistance to moisture is enhanced by the microphone's constant RF current flow, allowing for natural evaporation and ensuring durability and consistent performance in various climates.

Key Features

• Captures sound equally from front and rear, rejecting sound from the side

• Symmetrical and frequency-independent pick-up pattern

• Ideal for MS-Stereo setting with cardioid or super-cardioid mic

• Low-tension diaphragm and symmetrical push-pull transducer design

• Extended bass response for full frequency sound capture

• Treble range up to 50 kHz for fine detail and transient response

• German-engineered with durable metal housing

• Moisture-resistant design for humid, hot, and cold environments

• Low self-noise for greater audio detail and dynamics
  Low non-linear distortion for sonic clarity

• Compact size for easy transport and unobtrusive appearance in live shows or TV

• Modular design for easy combination with MKH 8000 accessories

• Nextel non-reflecting paint for visual unobtrusiveness in live shows or TV

Technical Specifications

Pick-up pattern
figure-of-eight
Frequency response
30 - 50,000 Hz
Sensitivity
-31 dBV/Pa (28 mV/Pa)
Max. SPL
139 dB
Equivalent noise level
13 dB(A)
21 dB (CCIR)
Phantom powering
48 V ±4 V (P48, IEC 61938) Current consumption
3.3 mA
Diameter
approx. 19 mm, max 21 mm
Length
approx. 59 mm with MZX 8000
approx. 93 mm
Weight
approx. 38 g
with MZX 8000
approx. 70 g
Operating temperature
-10 Degrees C to 60 Degrees C
(14 Degrees F to 140 Degrees F)
Storage temperature
-20 Degrees C to 70 Degrees C
(-4 Degrees F to 158 Degrees F)
Relative humidity
5 to 95%, non-condensing
