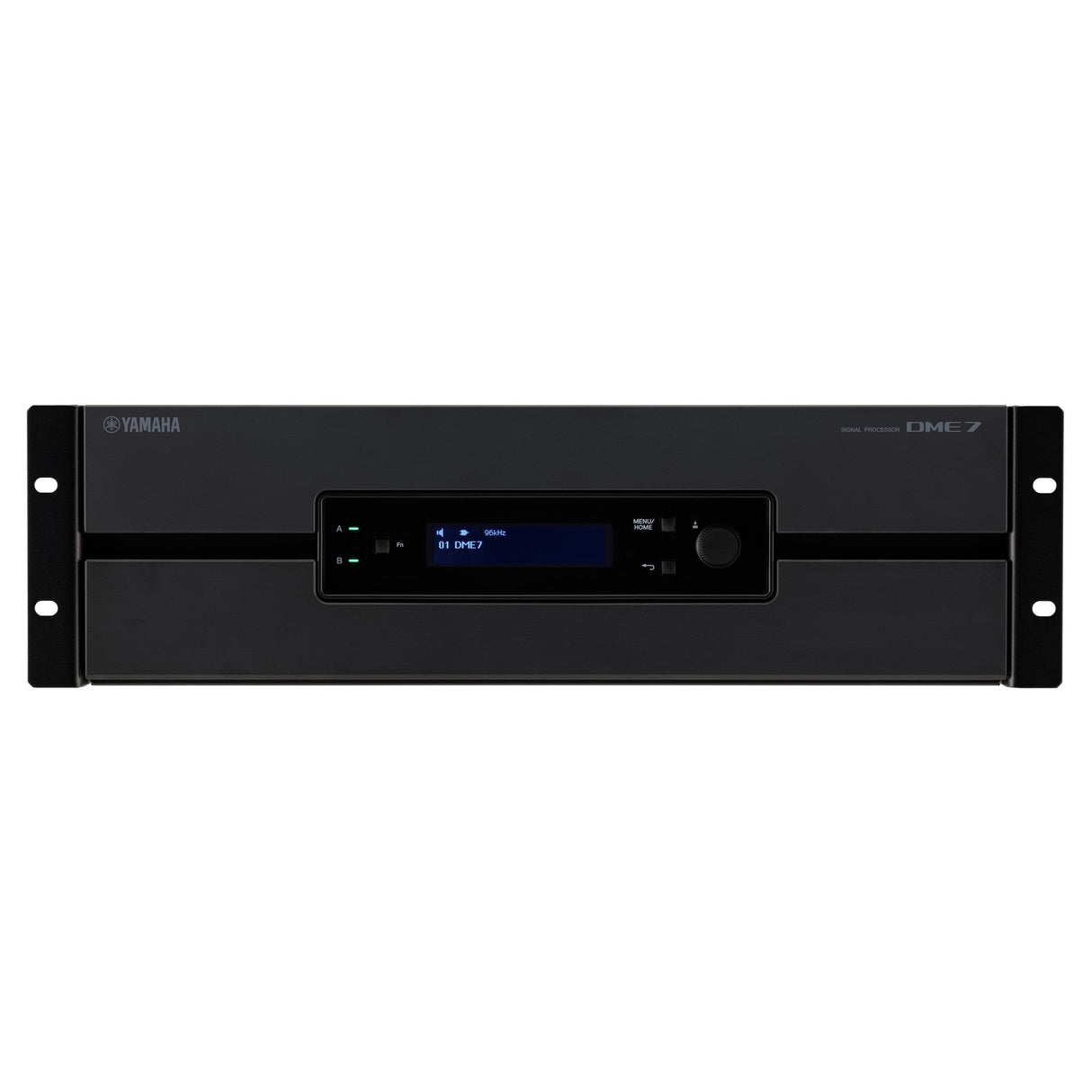

Yamaha DME7 96 kHz Dante Digital Signal Processor
Description
Description
Yamaha DME7 96 kHz Dante Digital Signal Processor
The DME7 is an open architecture-type digital signal processor that boasts superior processing performance and supports up to 256 input/output channels with no additional hardware. Featuring 96-kHz processing, the DME7 delivers high-quality sound of Yamaha digital mixers. It is an outstanding processor for both musical expression and sound field generation giving you the ideal sound whether you are using it for a theater, concert hall, or a wide range of other venues.
ProVisionaire software suite supports the entire DME7 workflow and provide system designers seemless workflow from designing through operation.
Key Features
- High-quality sound 96 kHz sampling processing
- 64 x 64 Input/Output Dante Inteface which supports redundant network connection
- 8 x 8 USB audio interface with USB typeC connector (96 kHz support)
- SD memory card slot for MP3/WAV file playback and data backup
- Informative LCD display making it easy to operate and monitor the status
- Low noise design enables super quiet NC 20
- Built-in redundant power supply
- Fledible control via ProVisionaire Control, DCP digital control panel, GPI MIDI and OSC support.
Technical Specifications
Internal processing
44.1/48/88.2/96 kHz
Latency
2.7 msec (at Rio-D2 Analog In/Out with Dante latency at 0.25 msec, Dante through out on DME7)
Memory
Parameter sets: 1000, Snapshots: 10000
Cooling
Constant-speed fan x1
NC Value
NC20 (1m from front panel)
Dante Interface
Channel count
64 IN, 64 OUT, redundant (expandable to 256 IN, 256 OUT)
Sampling frequency
44.1/48/88.2/96 kHz
Bit depth
24/32 bit
USB audio
Channel count
8 inputs, 8 outputs with SRC
Sampling frequency
44.1/48/88.2/96 kHz
I/O Connectors
Dante
etherCON x 2 (PRIMARY / SECONDARY), 1000Base-T
DCP
RJ45 x 1
USB TO HOST
USB 2.0 Type-C connector for USB audio
USB TO DEVICE
USB 2.0 Standard-A Connector for Save/Load
Network
RJ45 x 1, 100Base-TX
GPI
Euroblock 16 terminals (mini) x2 (GPI x16, GPO x8, +5V power supply x4)
MIDI
DIN 5 pin ×2 (IN, OUT)
AC
AC inlet (IEC, V-Lock) x 2
Compatible formats
File format: FAT32, FAT16
Supported capacity
Maximum media capacity: SDHC: 32 GB, SD: 2 GB
Maximum file size
FAT16: 2 GB, FAT32: 4 GB
User Interface
Front panel: Rotary encoder and buttons for GUI control, Operation lock feature (Full lock or Lock except volume and mute), Display: 224 × 48 pixels, mono color with brightness adjustment
Power requirements
100V-240V, 50Hz/60Hz
Power consumption
100 W
Heat dissipation
86.3 kcal/h
Operating temperature
0°C to +40°C
Storage temperature
-20°C to +60°C
Dimensions (W x H x D)
480 x 132 x 363 mm (3U) (18.90 x 5.20 x 14.29 inch)
Weight
9.5 kg (20.94 lbs)
Finish
Front panel: Aluminum (black anodized) Munsell approximate value N2.5, Handle: Metal (black paint)
Included Accessories
Setup Guide, Two Euroblock plugs (16-pin, 3.50 mm pitch), Two power cords, One cable hook
Accessories
Expansion License: DEK-DME7-DX64, Digital Control Panel: DCP4S-US/EU, DCP1V4S-US/EU, DCP4V4S-US/EU, Digital Controller Hub: DCH8
