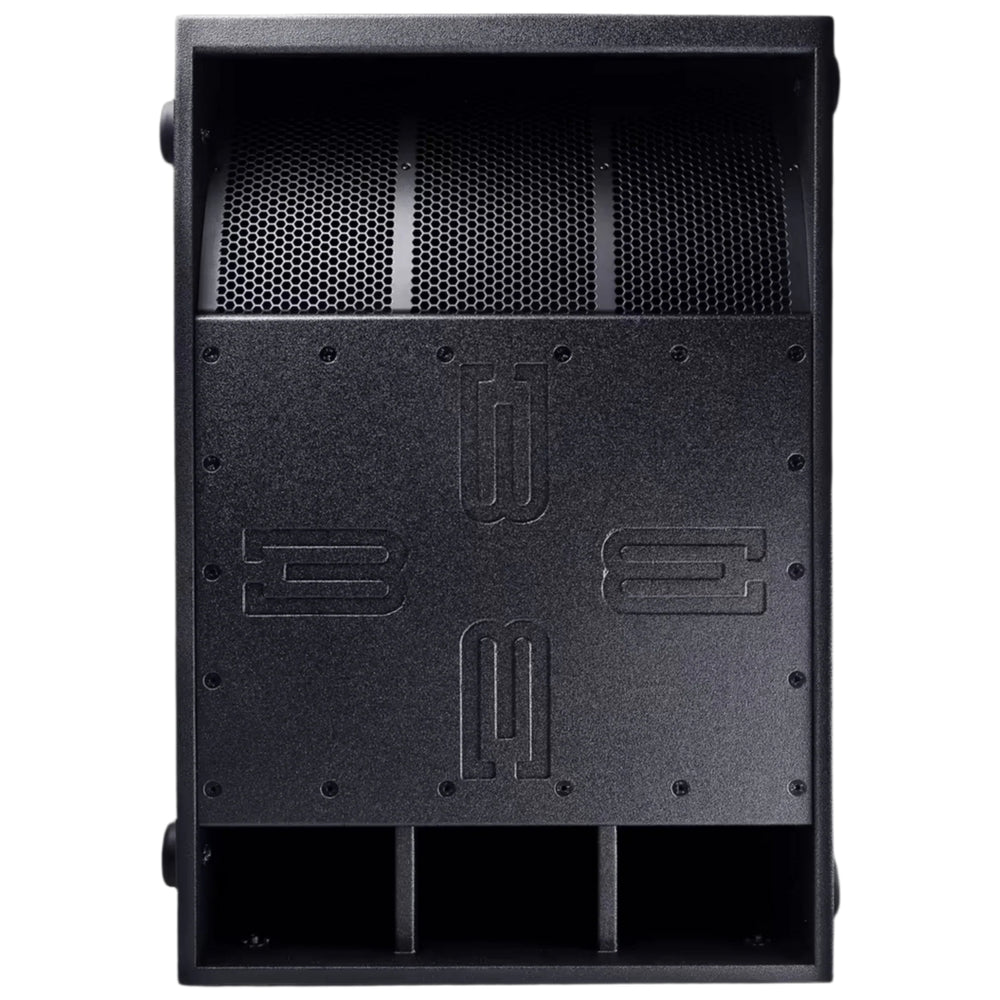

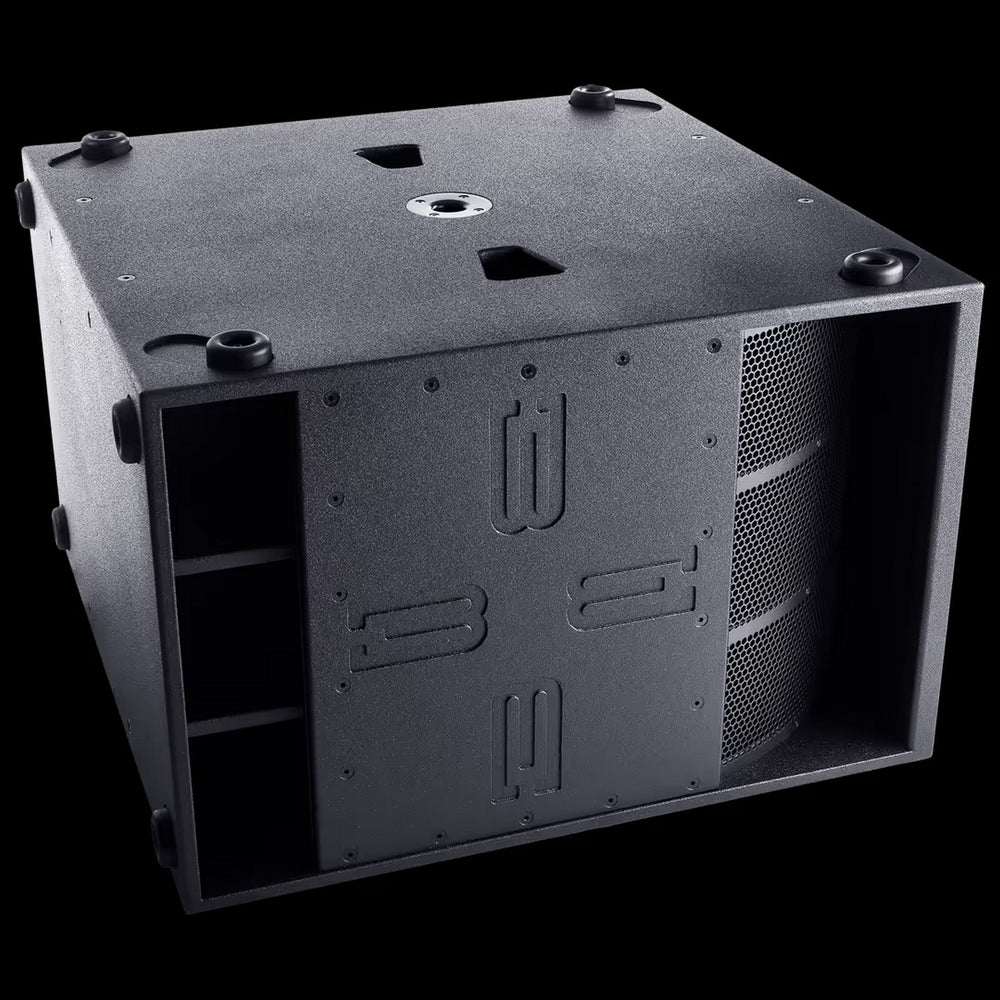

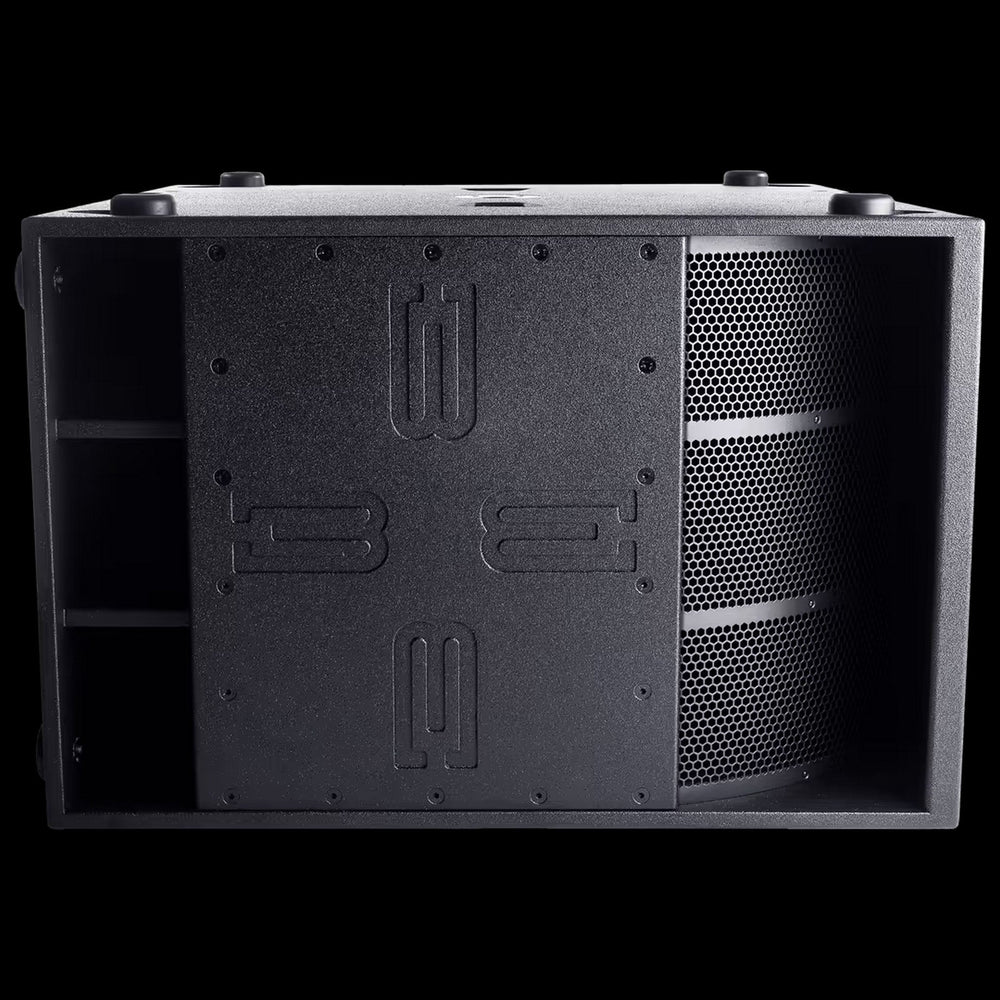

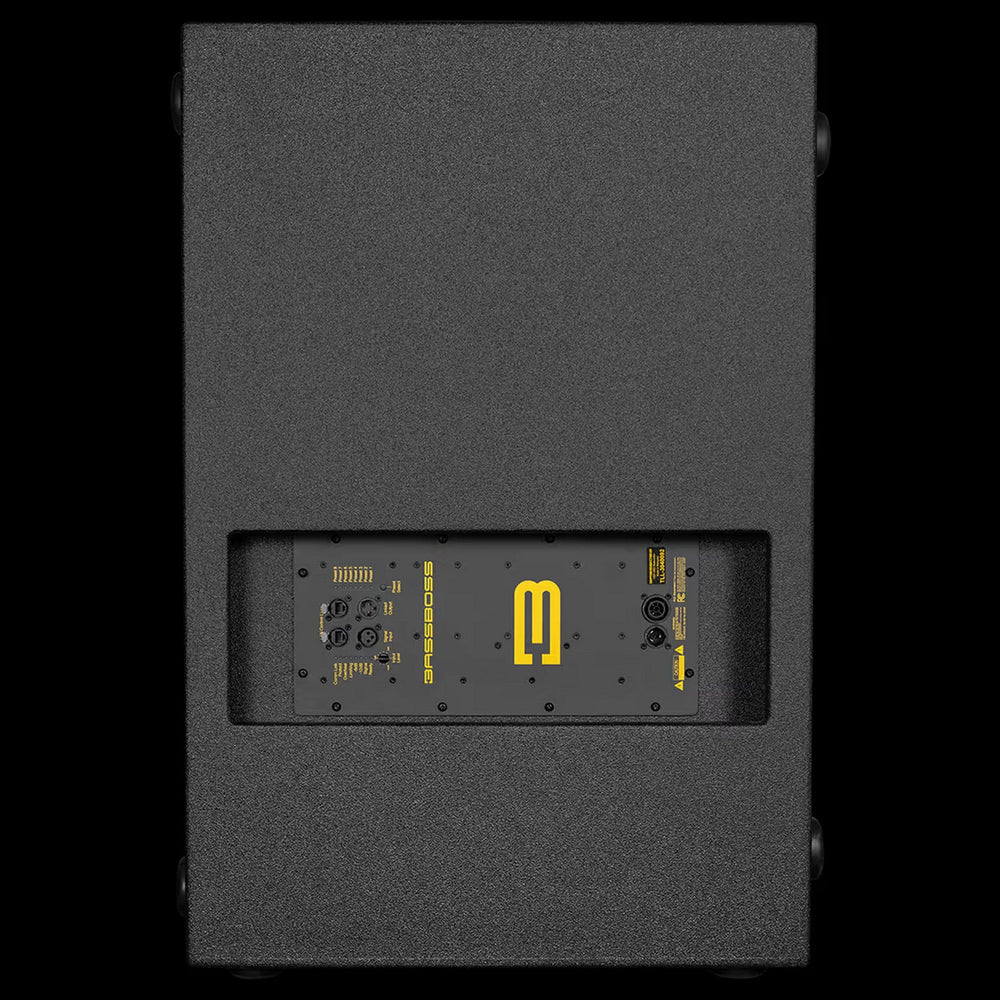

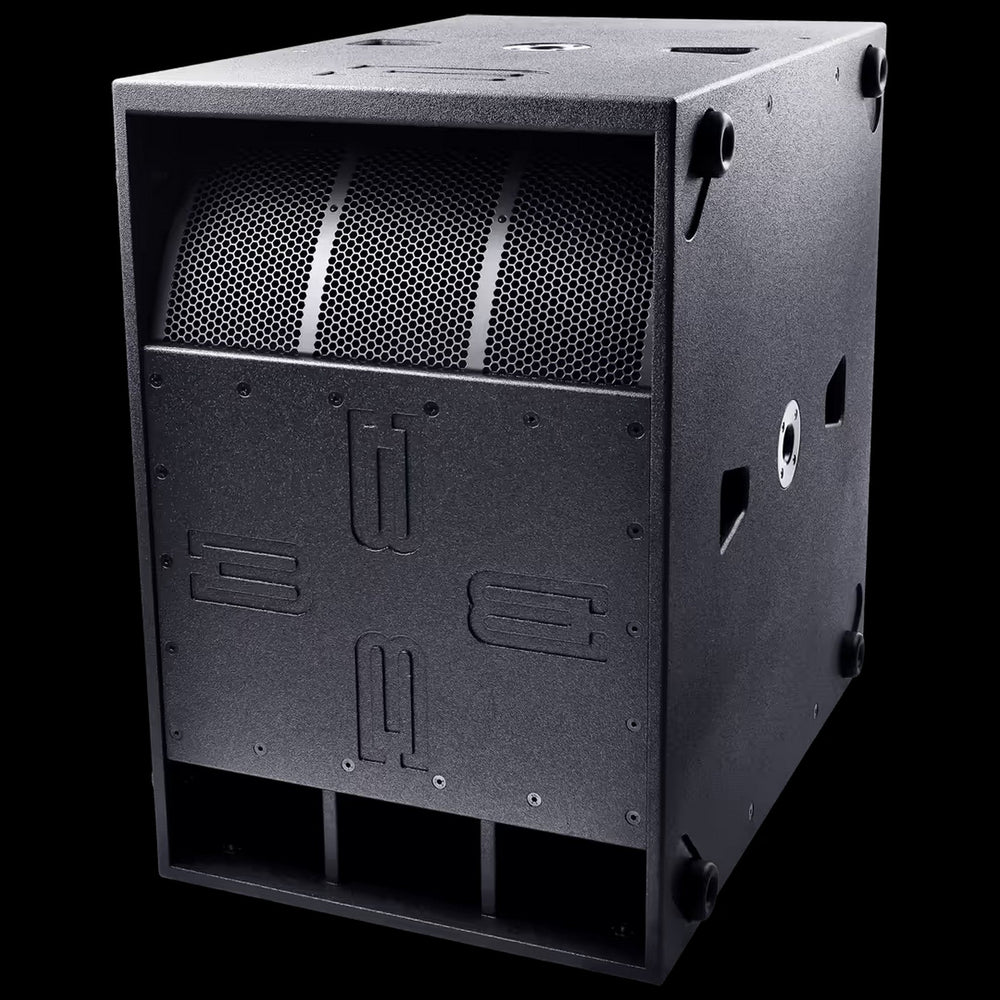

BASSBOSS VS21-MK3 2500W Single 21-Inch Powered Hybrid Subwoofer

BASSBOSS: The Perfect Solution for Your Performance Needs
The BASSBOSS VS21-MK3 2500W Single 21-Inch Powered Hybrid Subwoofer provides a wide range of shows and genres, delivering hard-hitting live kicks and the rolling bass of an 808. The VS21 model is the perfect blend of performance and versatility, providing precise low-end reproduction with massive punch and plenty of heft.

Give It a Punch
Are you looking for the output of a double-18” sub from half the power and less space? The VS21's short-horn allows very high sensitivity in its upper operating range, resulting in increased power available for “impact” and “punch.” The vented part of the cabinet allows it to do the deep notes that 21” woofers do well, providing an impressive, “big” or “heavy” hit.

Dangerously Sweet
The high-efficiency 21” woofer loaded into a large, tuned chamber on one side for deep bass and a short horn on the other for impact, makes the VS21 a perfect combination of power and subtlety. The 2500 Watts from the amplifier are put to good use making SPL, while the processing keeps everything safe and smooth.

MK3 Amp Update
The MK3 series comes with all-new amplifiers. The total power has increased, with power allocated to woofers increasing substantially. The higher output voltages provide more impact, and universal input voltage compatibility of 90-250V provides more flexibility. Waterproof connections provide more peace of mind to users.

MK3 Enhanced DSP
The all-new 96kHz DSP on the MK3 features 8 pushbutton presets, with up to 100 presets that can now be stored in the DSP and loaded via LAN. The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.

ControlBASS Software
ControlBASS software supports an unlimited number of possible BASSBOSS-developed or customized user presets, which integrate seamlessly and coherently with all other BASSBOSS products. The latest in DSP programming developments can be added via easy remote updating, providing users with a hassle-free experience.

Key Features

• The VS21's short-horn design enables high sensitivity in its upper operating range, resulting in increased power for impactful and punchy sound.
• The vented cabinet design allows the subwoofer to produce deep notes, particularly well-suited for 21” woofers.
• The overall impression created by the VS21 is that of a powerful and weighty impact.
• This subwoofer is a single 21” self-powered model with a 6th-order hybrid design.
• It features 2500 Watts of Class D amplification for robust performance.
• The transducer for low frequencies consists of a 21” neodymium motor woofer with a 4.5” voice coil.
• The woofer's large diameter of 540mm contributes to its ability to produce deep and impactful bass.
• The neodymium motor enhances the efficiency and performance of the woofer.
• The 4.5” voice coil allows for precise control and accurate reproduction of low frequencies.
• Overall, the VS21 is a high-quality subwoofer that delivers powerful and immersive bass performance.

Technical Specifications

Loudspeaker Description
Single 21” Self-Powered 6th-order Hybrid Subwoofer
Frequency Response (±3 dB)
28 - 100Hz
Maximum Sustained Output
135dB
Max SPL (Peak)*
138 dB
Nominal Dispersion (H° x V°)
360 x 360 - Cardioid Mode Available with Multiple Boxes
Amplification
2500 Watts Class D
Processing
Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
Electrical Connector Amp
Neutrik powerCON True 1 TOP - IP65 rated waterproof connectors
Electrical Connector Mains
Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
Voltage Operating Range
100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw 120V
4.6 Amps (Nominal)
Current Draw 240V
2.3 Amps (Nominal)
Signal Input Connector
XLR-F
Signal Output Connector
XLR-M (direct pass-through only)
Enclosure Type
Vented, short-horn hybrid
Transducer Low Frequency
1 x 21 in. diameter (540mm) neodymium motor woofer with 4.5 in. (115mm) voice coil.
Cabinet Construction
CNC machined 18 mm Baltic Birch plywood with extensive bracing and dado joinery with 4 x 35 mm pole sockets, 8 x integrated handles, 12 rubber feet. 8 interlocking foot pockets. 6 X M10 threaded flypoints
Exterior Finish
High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
Grille
Perforated, powder-coated steel
Dimensions (HxWxD)
36” x 24” x 36” (91.44 cm x 60.96 cm x 91.44 cm) - 37.5” (95.25 cm) high with feet
Net Weight
180 lbs
Shipping Weight
210 lbs
What's Included
Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card
Optional Covers
Heavy-duty padded nylon transport cover (Vertical)
Optional Dollies
Version V: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports 1 cabinet. Version H: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports up to 3 cabinets.
Optional Hardware
M10 Shoulder Eye Bolts, M10 Side-Pull anchors
True Specifications
Our forward-thinking approach means that we never rest on our laurels. As we continue to innovate and refine our technology, our specifications will evolve. We're committed to constantly pushing the boundaries and raising the bar.
*Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specifications that are inflated over what can actually be achieved. BASSBOSS real world output specifications are provided as “Maximum Sustained Output” ratings, which reflect actual measured, continuous output levels.
