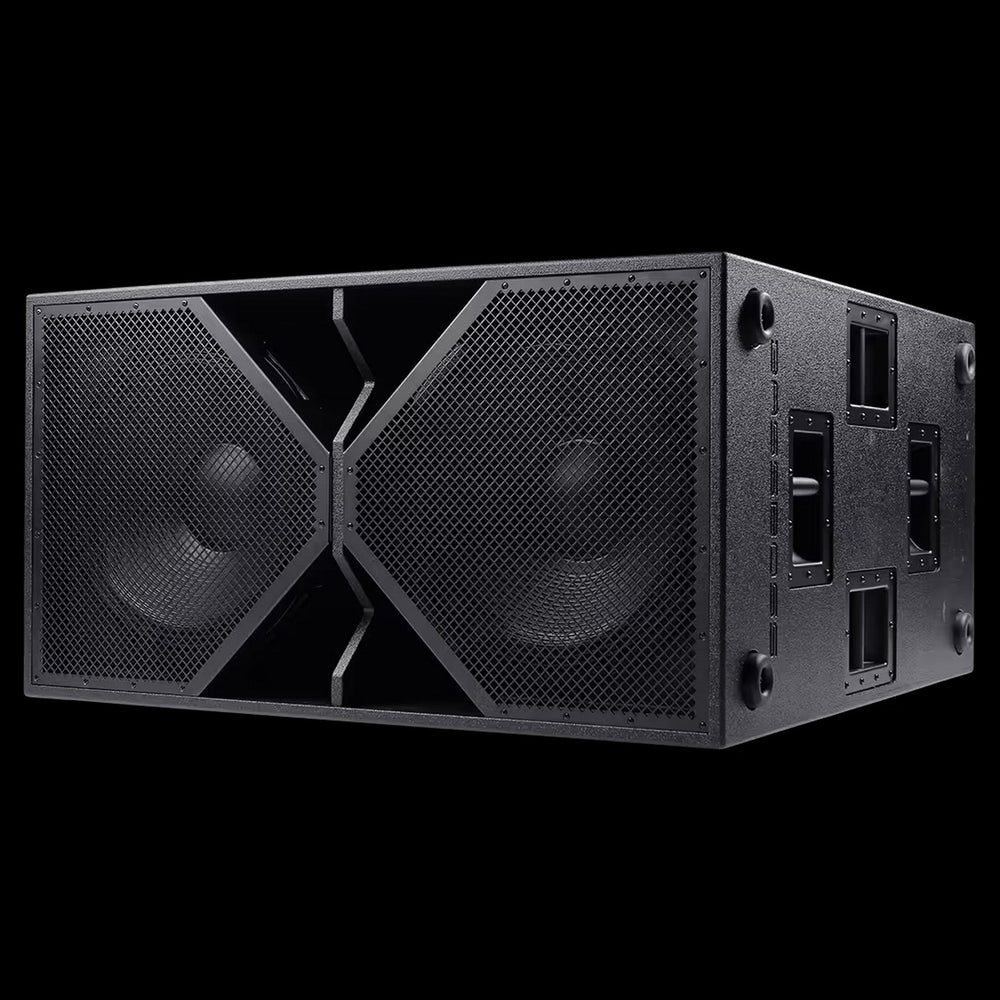

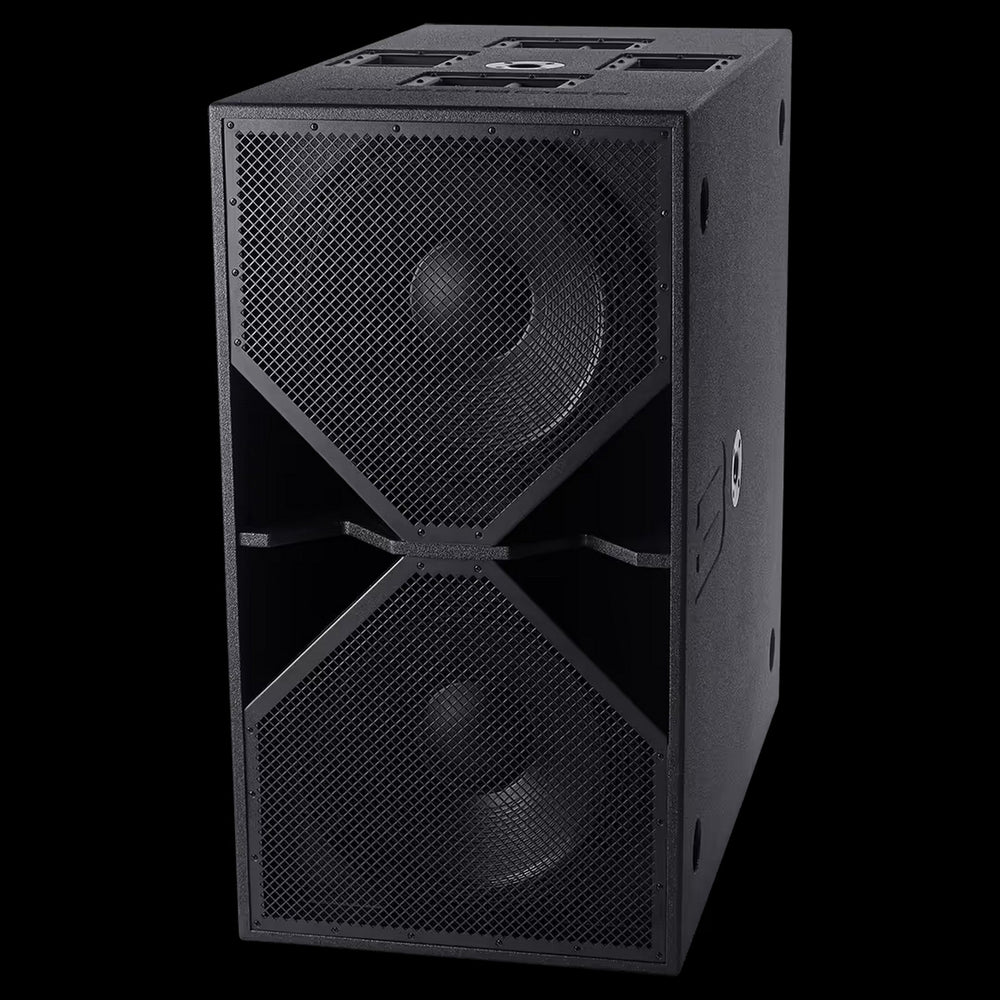

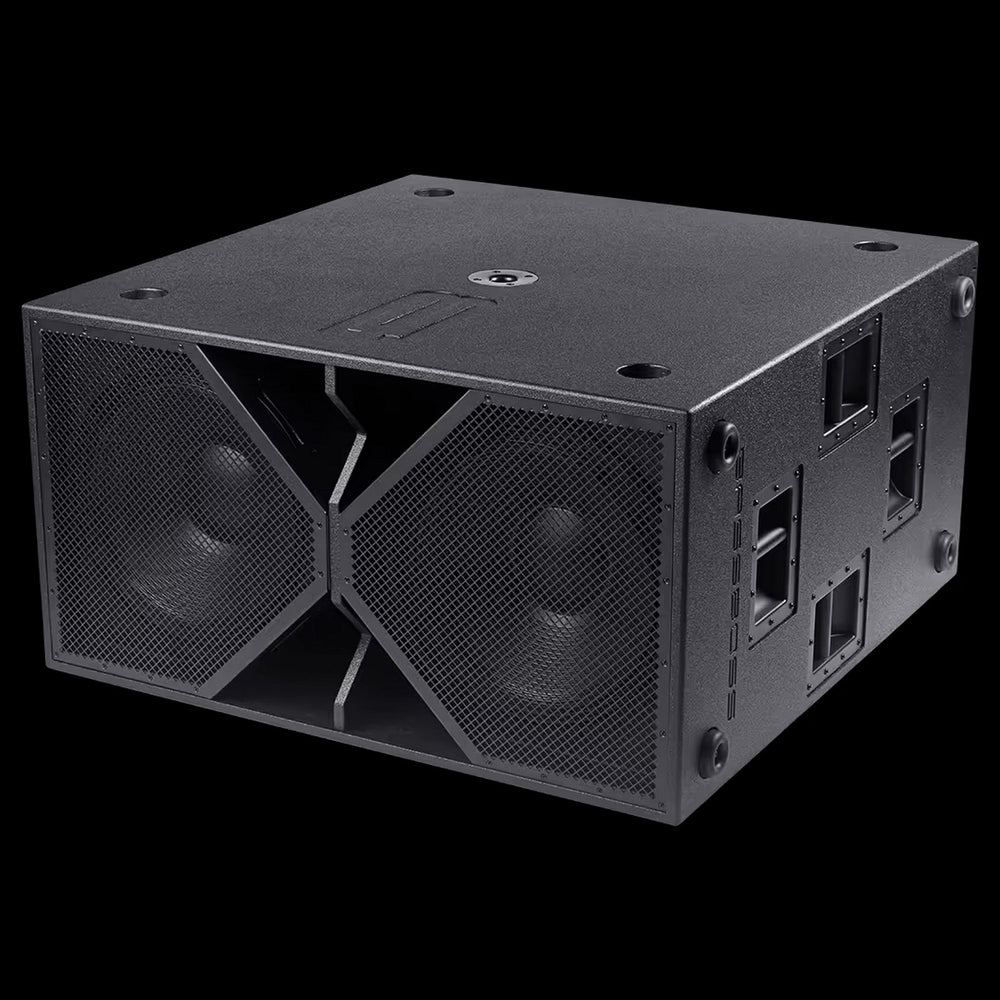

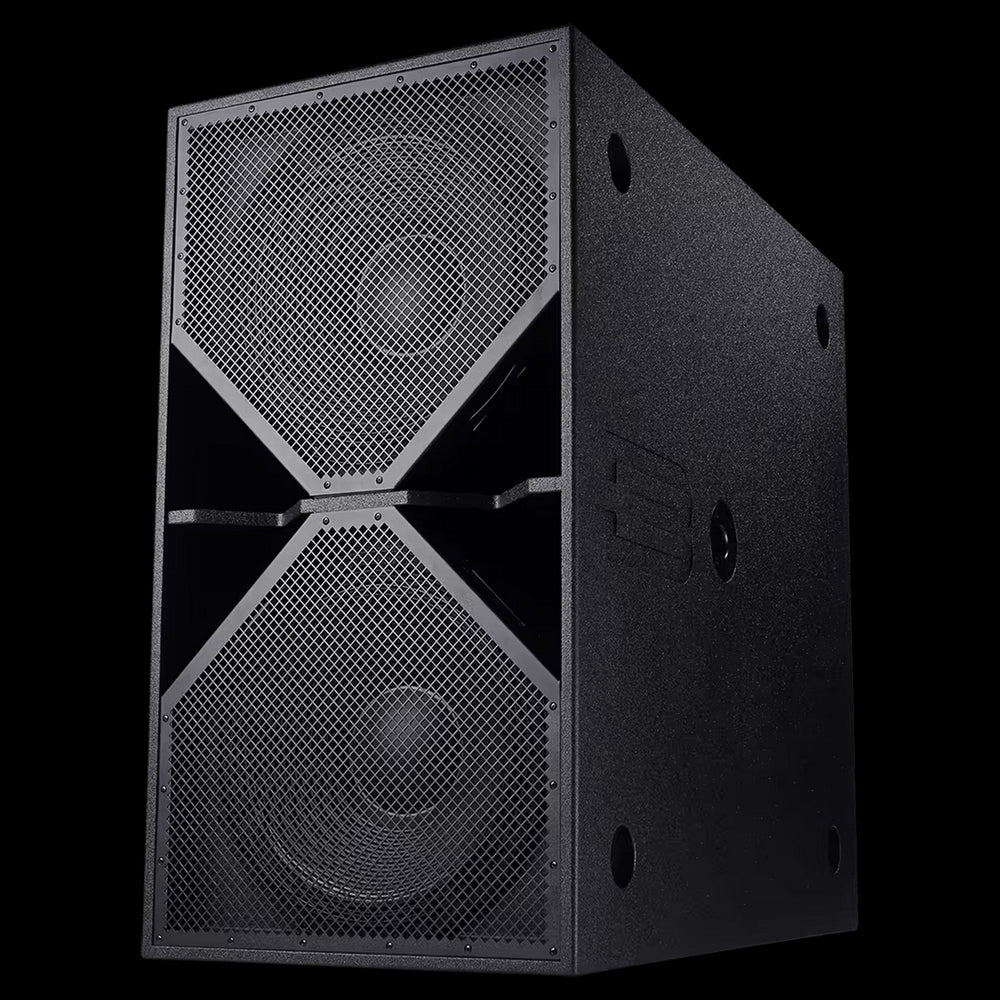

BASSBOSS ZV28-MK3 5000W Dual 18-Inch Vented Direct-Radiating Extended-Depth Powered Subwoofer

Unleash the Power of the BASSBOSS ZV28-MK3 5000W Dual 18-Inch Vented Direct-Radiating Extended-Depth Powered Subwoofer for an Unforgettable Auditory Experience

Captivate Crowds
Experience sound like you've never heard before with the ZV28-MK3 Subwoofer. With its seamless delivery of depth and richness, it creates a full-bodied sound that sets the stage for a full emotional experience.

Boundary Crushing Bass
Introduce your audience to the deepest frequencies of sound with the ZV28-MK3 Subwoofer. It delivers notes that other subwoofers can't reach, creating a unique listening experience that leaves your audience wanting more.

Set Standards
Impress your audience with jaw-dropping bass and incredible power. The ZV28-MK3 Subwoofer brings an unparalleled level of sound quality that will leave your audience wanting more.

How It's Done
The ZV28-MK3 Subwoofer brings you closer to the limits of audible sound with its ability to deliver larger, fuller notes. Experience the power of music like never before.

MK3 Amp Update
The MK3 series features all-new amplifiers that provide increased power output and flexibility. The higher output voltages create more impact, while universal input voltage compatibility provides more convenience. Waterproof connections deliver added peace-of-mind.

MK3 Enhanced DSP
The MK3 series boasts an all-new 96kHz DSP, which includes a comprehensive suite of processing such as meticulously tuned equalization, high-pass and low-pass filters, and multiple protection systems and limiters to prevent driver overload. With up to 100 presets that can be stored in the DSP and loaded via LAN, the pushbutton presets have doubled from 4 to 8.

ControlBASS Software
The ControlBASS software supports an unlimited number of possible BASSBOSS-developed or customized user presets. It seamlessly integrates with all other BASSBOSS products for effortlessly perfect setups. The latest in DSP programming development can be easily added via remote updating.

Key Features

• The ZV28-MK3 offers an unparalleled level of depth in sound that is rarely experienced by most individuals.
• It effortlessly delivers a full and rich sound that surpasses expectations, both in terms of the physical and emotional impact it has on the listener.
• This subwoofer is equipped with double 18" self-powered vented direct-radiating extended-depth technology, ensuring a powerful and immersive audio experience.
• It features integrated comprehensive DSP with a sampling rate of 96kHz, providing high-quality sound reproduction.
• The subwoofer includes 8 pushbutton presets, each offering a range of customizable options such as high-pass filters, low-pass filters, phase alignment, equalization, and multi-stage limiting.
• With a storage capacity for up to 100 presets, users can easily switch between different sound profiles to suit their preferences or specific audio requirements.
• The transducer low frequency is powered by two 18" neodymium motor woofers with 4.5 in. CCAW voice coils, ensuring exceptional performance and durability.
• These advanced components contribute to the subwoofer's ability to deliver deep and impactful bass frequencies.
• The ZV28-MK3 is designed to enhance the overall audio experience, allowing listeners to fully immerse themselves in the music.
• It sets a new standard for what music can sound and feel like, providing a truly transformative listening experience.

Technical Specifications

Loudspeaker Description
Double 18” Self-Powered Vented Direct-Radiating Extended-depth Subwoofer
Frequency Response (±3 dB)
23 - 90Hz
Maximum Sustained Output
134dB
Max SPL (Peak)*
137dB
Nominal Dispersion (H° x V°)
360 x 360 - Cardioid mode available with multiple cabinets
Amplification
5000 Watts Class D (2 x 2500W)
Processing
Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets

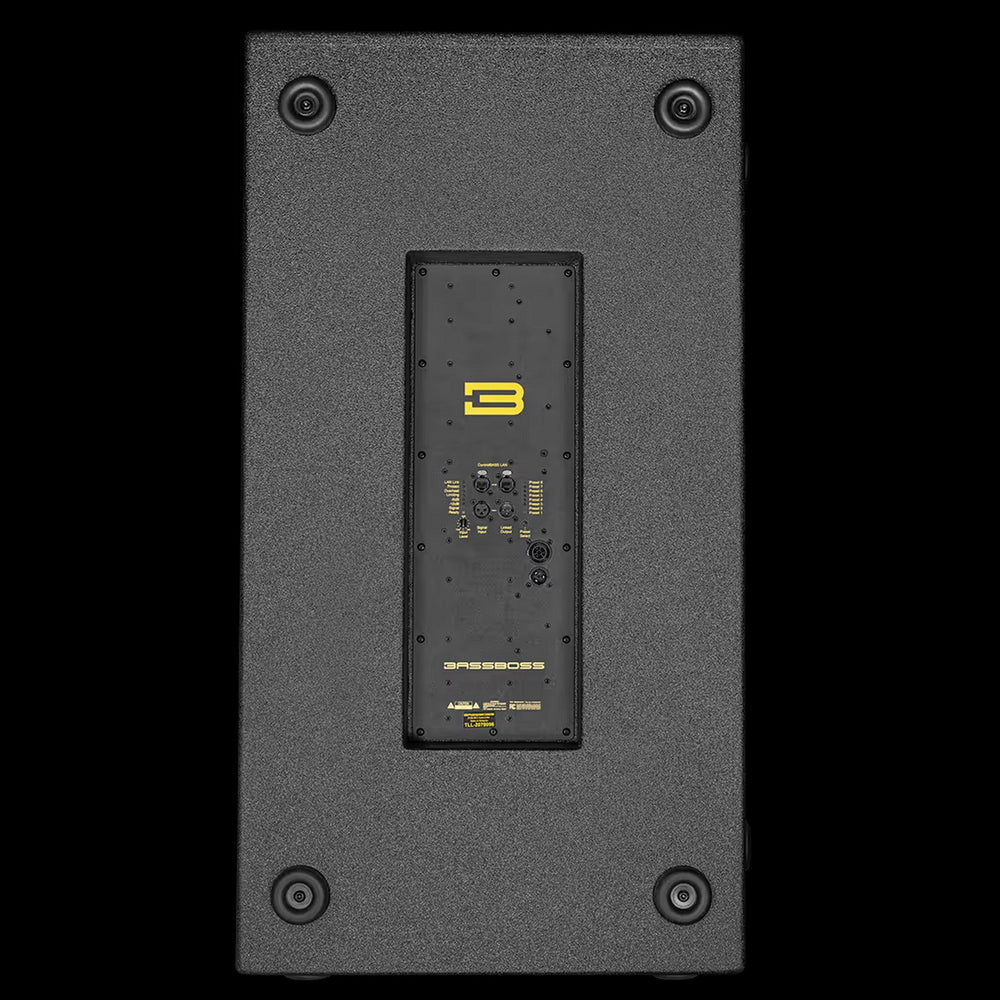

Electrical Connector Amp
Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector Mains
Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
Voltage Operating Range
100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw 120V
9 Amps (Nominal)
Current Draw 240V
4.5 Amps (Nominal)
Signal Input Connector
XLR-F
Signal Output Connector
XLR-M (direct pass-through only)
Enclosure Type
Direct radiating vented enclosure, optimally tuned for extended low frequency response with linear output and high-power handling
Transducer Low Frequency
2 x 18” (457mm) neodymium motor woofers with 4.5 in. (115mm) CCAW voice coils
Cabinet Construction
CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 8 steel bar handles. 2 x 35mm steel pole sockets. 12 rubber feet. 4 interlocking foot pockets. 16 X M10 threaded flypoints
Exterior Finish
High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
Grille
Perforated, powder-coated steel
Dimensions (HxWxD)
22.5 in. x 42 in. x 42 in. (Height of feet 7/8”)
Net Weight
235 lbs. (106.5 kg)
Shipping Weight
265 lbs. (120.2 kg)
What's Included
Loudspeaker, manual, and power cable
Optional Covers
Heavy-duty padded nylon transport covers for vertical or horizontal transport
Optional Dollies
Version V: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports 1 cabinet. Version H: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports up to 4 cabinets.
Optional Hardware
M10 Shoulder Eye Bolts, M10 Side-Pull anchors
True Specifications
Our forward-thinking approach means that we never rest on our laurels. As we continue to innovate and refine our technology, our specifications will evolve. We're committed to constantly pushing the boundaries and raising the bar.
*Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specifications that are inflated over what can actually be achieved. BASSBOSS real world output specifications are provided as “Maximum Sustained Output” ratings, which reflect actual measured, continuous output levels.
