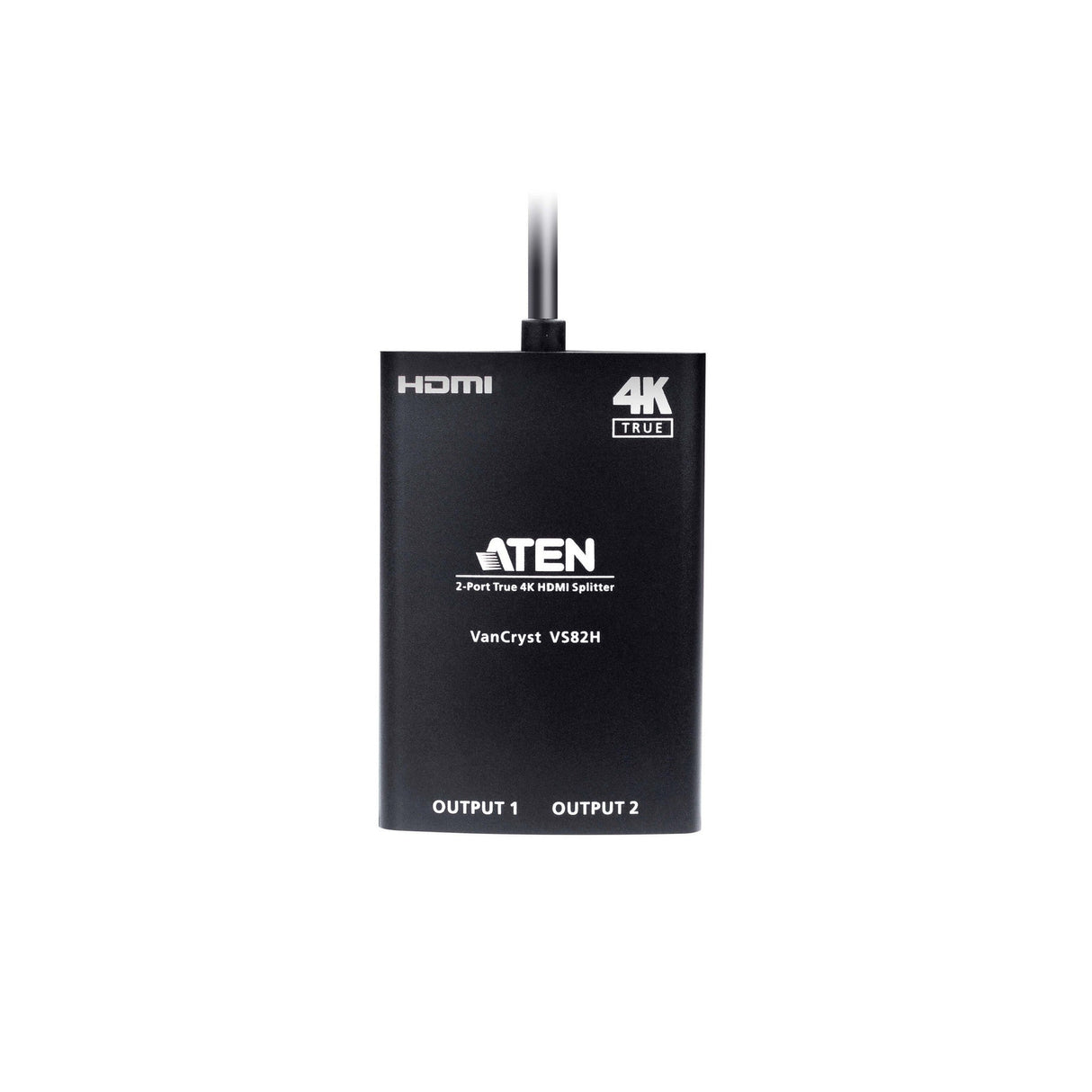

ATEN VS82H 2-Port True 4K HDMI Splitter

ATEN VS82H 2-Port True 4K HDMI Splitter

The ATEN VS82H splitter offers you superior video resolution of True 4K and lossless quality when sending one source of digital high-definition video to two displays. It'supports HDMI-enabled equipment’s from DVD players, satellite set-top boxes to all HDMI displays.

Aside from being HDCP 2.2 compliant, the VS82H comes with automatic EDID detection that always presents users with the best resolution across different screens. Along with support for Dolby TrueHD and DTS-HD Master 7.1 Audio channel, the VS82H ensures you distortionless and outstanding audio quality.

What’s more, the VS82H is a bus-powered splitter that can be charged directly from a device connected through Micro-USB port. Integrating the above functionalities provides you an effective solution for personal, corporate, educational and commercial applications.

Key Features

• Distributes one True 4K source to two HDMI displays at the same time
• Automatic downscaling function - automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
• HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
• True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
• Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
• Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
• Automatic EDID detection - enjoy high-quality display and use of the best resolution across different screens
• Quality and durable aluminum metal enclosure

Technical Specifications

EDID Settings
PORT-1 & Default
LEDs
Status
HDMI Output x 2 (Blue)
Power Input x 1 (Blue)
Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
30cm at 4K@60Hz (4:4:4)

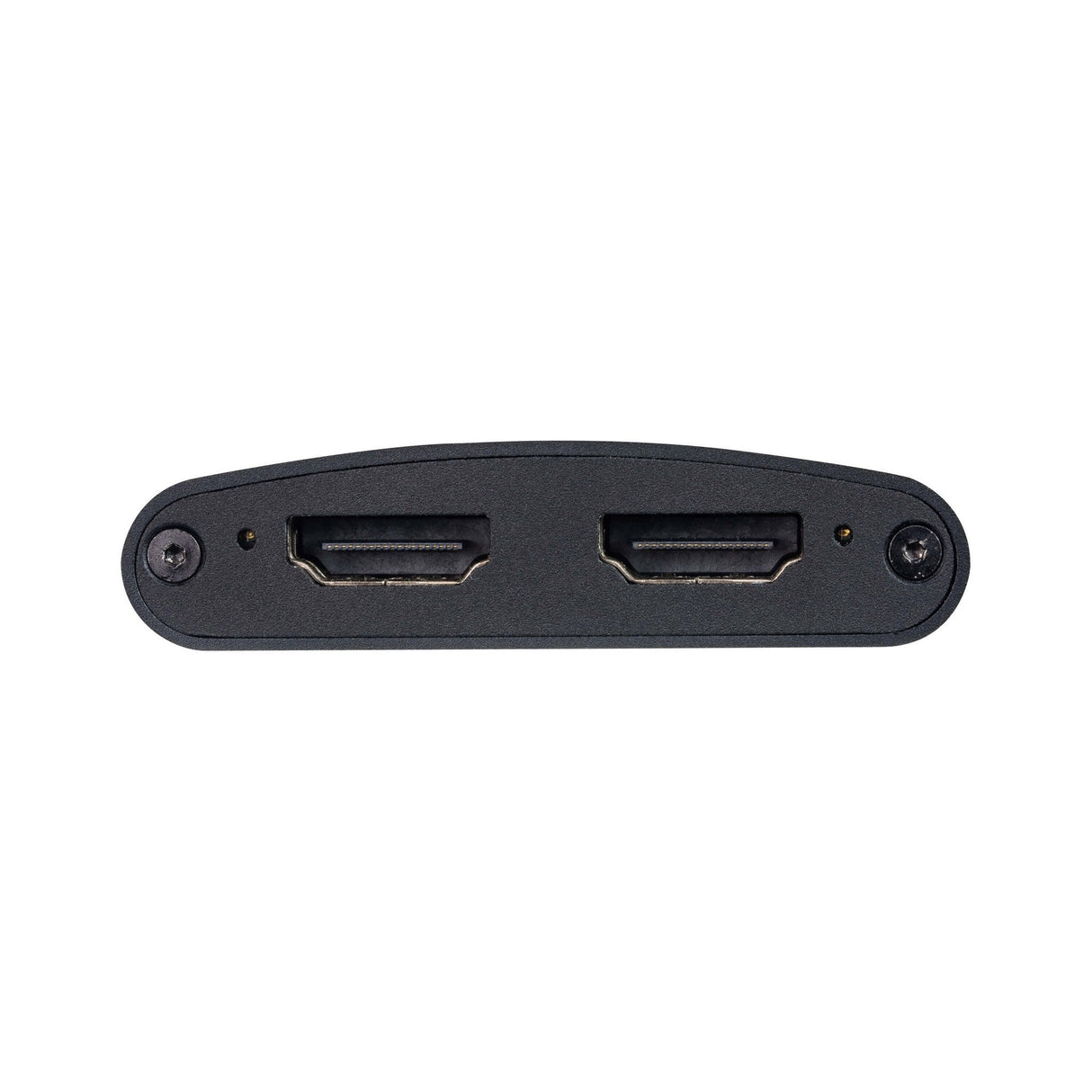

Video Output
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5m at 4K@60Hz (4:4:4)
Video
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2 Compatible
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Power Consumption
DC 5V:1.35W:4.6BTU
Connectors
USB Port
Micro-USB to USB cable (50cm) X 1
Firmware upgrade & power source
Environmental
Operating Temperature
0-40 Degrees C
Storage Temperature
-20 - 60 Degrees C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal (aluminum)
Weight
0.09 kg (0.2 lb)
Dimensions (L x W x H)
8.80 x 6.00 x 15.00 cm (3.46 x 2.36 x 5.91 in.)
Carton Lot
40 pcs
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
